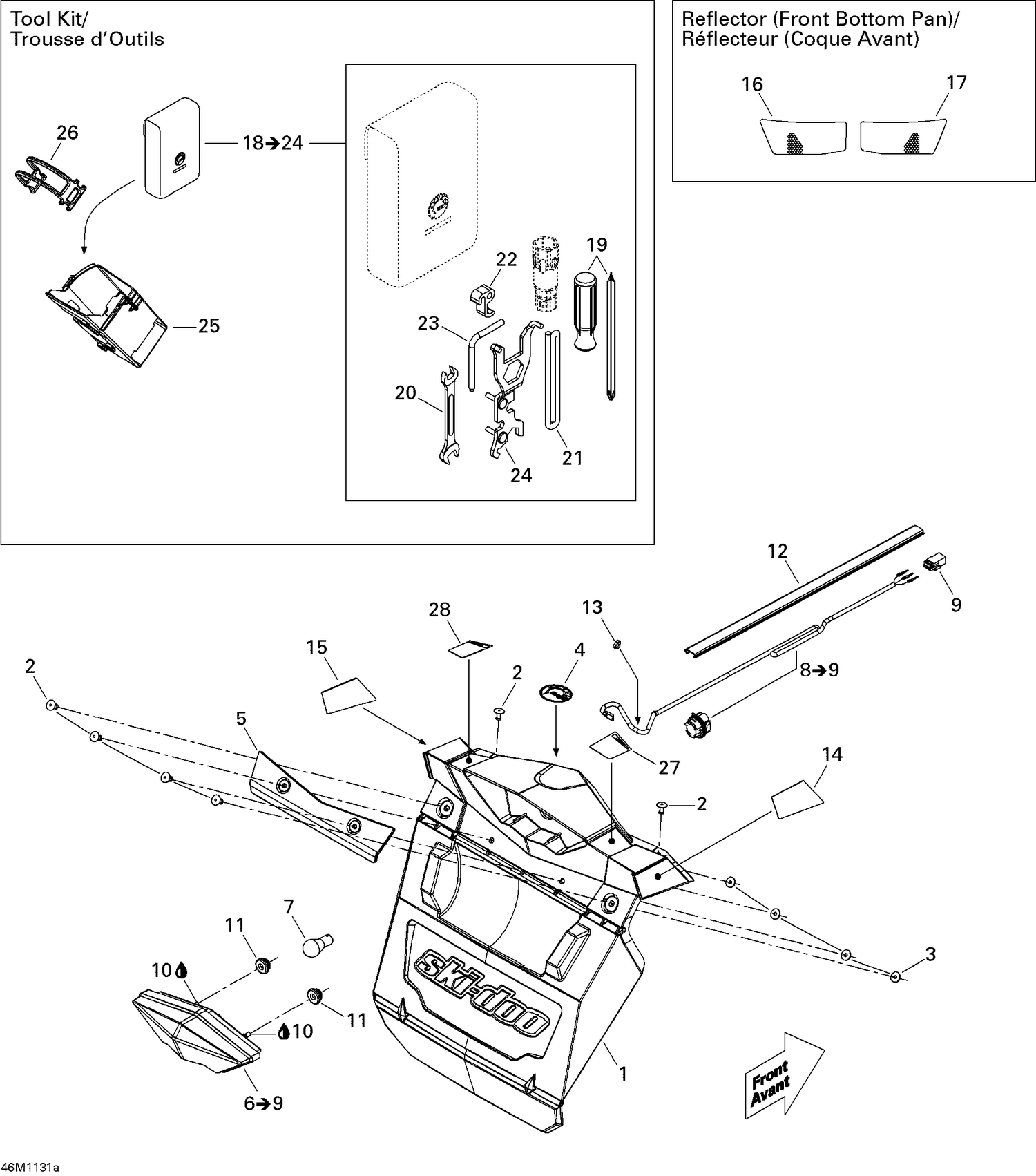

09- Utilities STD
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000702 | Snow Guard |
| 2 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 3 | 517124300 | Washer |
| 4 | 219903305 | BRP Logo 48 mm |
| 5 | 520000751 | Reinforcement |
| 7 | 520000758 | Bulb |
| 9 | 515175494 | Male Housing, 3 Circuits |
| 10 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 11 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 12 | 520000829 | Radiator Trim |
| 13 | 293750002 | Tie Wrap 142 mm |
| 16 | 520000891 | Yellow, RH Front Reflector |
| 17 | 520000892 | Yellow, LH Front Reflector |
| 19 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 20 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 21 | 219704403 | Was 412500100 Rope-Starter |
| 22 | 529000060 | Starter Grip This part replaces 529019400. |
| 23 | 520001028 | SPACING TOOL - Call your local BRP dealership |
| 24 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 25 | 520000894 | Tool Kit Rack |
| 26 | 520000528 | Latch |
| 27 | 516005057 | WARNING DECAL, SAFETY - Call your local BRP dealership This part replaces 516004550. |
