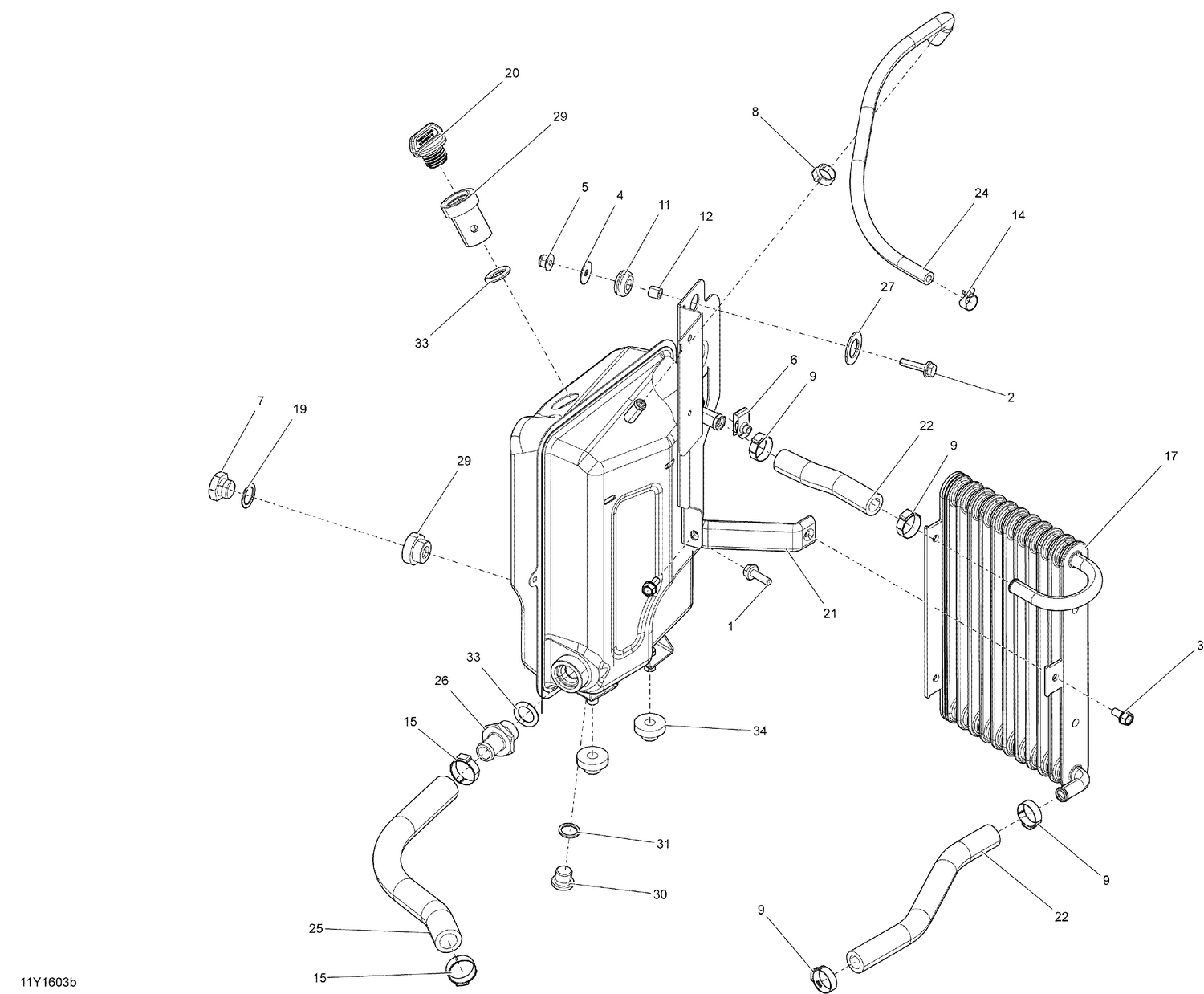

02- Oil System - SM5
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 2 | 207662544 | Hex. Flange Screw M6 X 25 |
| 3 | 210261250 | Hex. Flange Screw M6 X 12 |
| 4 | 224060201 | Flat Washer |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 7 | 250100114 | HEX. HEAD PLUG M16 X 1.5 - Call your local BRP dealership |
| 8 | 293650140 | Oetiker Clamp |
| 9 | 293650186 | Oetiker Clamp |
| 11 | 709000582 | Grommet This part replaces 293720053. |
| 12 | 293900105 | Bushing |
| 14 | 414415200 | Spring Clamp |
| 15 | 509000552 | Gear Clamp |
| 17 | 519000123 | OIL RADIATOR - Call your local BRP dealership |
| 19 | 519000148 | Copper Washer |
| 20 | 519000155 | Oil Cap |
| 21 | 519000175 | RADIATOR SUPPORT - Call your local BRP dealership |
| 24 | 519000208 | Formed Hose |
| 26 | 519000219 | Strainer |
| 27 | 519000295 | Washer |
| 29 | 519000304 | OIL TANK - Call your local BRP dealership |
| 30 | 705500504 | Fill Level Plug |
| 31 | 705500506 | Copper Washer |
| 33 | 709000218 | O-Ring |
