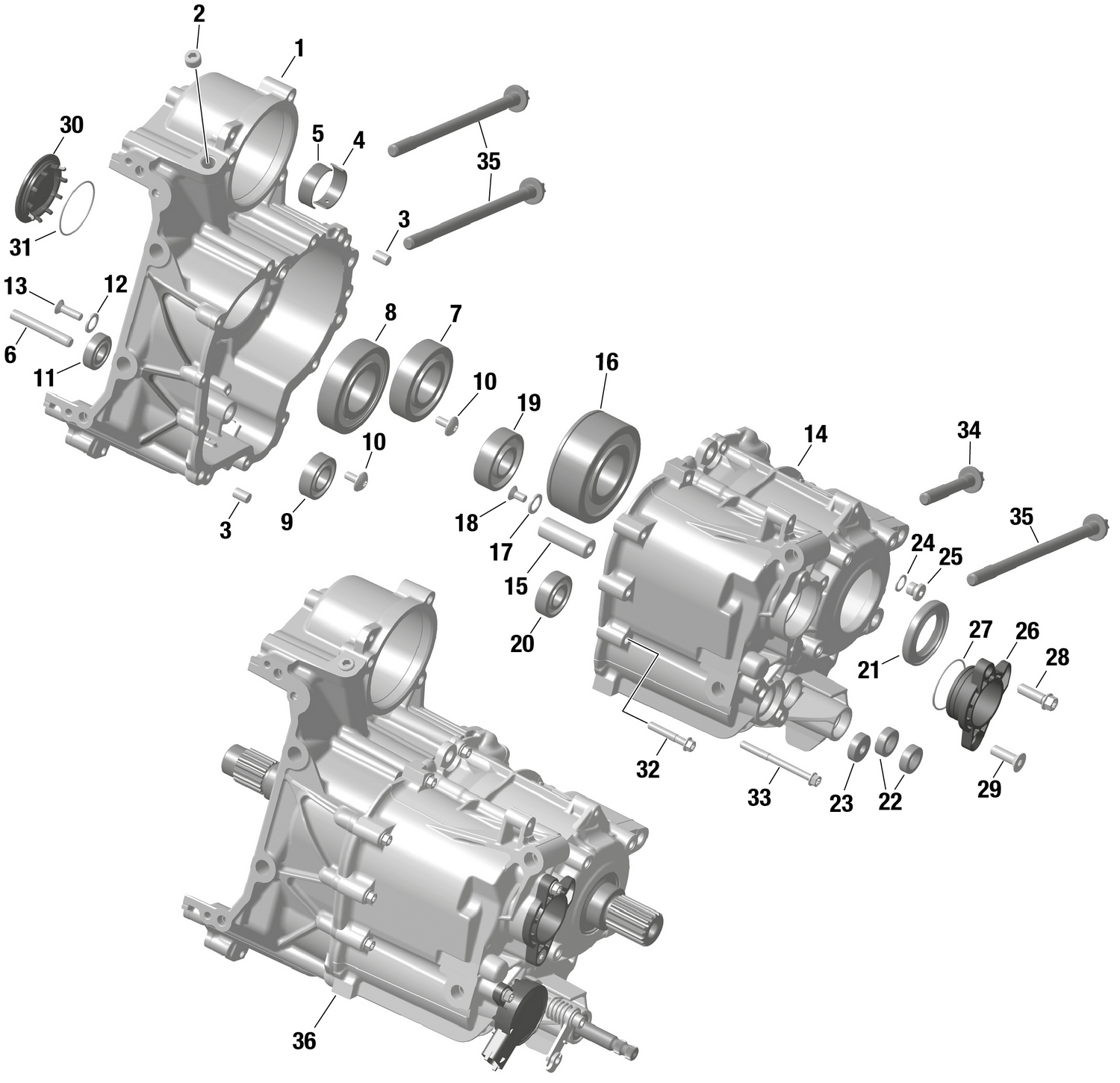

01- ROTAX - GearBox Housing
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420840658 | Plug Screw M12x1,5 This part replaces 420840657. |
| 3 | 420632010 | Center Pin 8 X 12 |
| 4 | XXX | Not Available As Spare Parts |
| 5 | XXX | Not Available As Spare Parts |
| 6 | 420229384 | Pin 8, M6 X 55 |
| 7 | 420232782 | Ball Bearing |
| 8 | 420832232 | Ball Bearing |
| 9 | 420232625 | Ball Bearing |
| 10 | 420241537 | Hex Flat Head Screw M6 X 13 T30 |
| 11 | 420232402 | BALL BEARING - Call your local BRP dealership |
| 12 | 420227085 | Washer |
| 13 | 420941438 | Screw M6 X 20 This part replaces 420941437. |
| 15 | 420249050 | Bolt |
| 16 | 420632832 | Ball Bearing |
| 17 | 420227085 | Washer |
| 18 | 420441415 | Screw M6 X 12 |
| 19 | 420932677 | Ball Bearing |
| 20 | 420932290 | Ball Bearing |
| 21 | 420831185 | Oil Seal |
| 22 | 420250455 | Oil Seal |
| 23 | 420631910 | Oil Seal |
| 24 | 420230150 | Oil Seal |
| 25 | 420641733 | Plug Screw M10 X 1 |
| 26 | 420211240 | Cover Support |
| 27 | 420230035 | O-Ring |
| 28 | 420441835 | Torx Flange Screw M6 X 20 |
| 29 | 420941438 | Screw M6 X 20 This part replaces 420941437. |
| 30 | 420201050 | Cover |
| 31 | 420831160 | O-Ring |
| 32 | 420440274 | Torx Flange Screw M6 X 35 |
| 33 | 420440602 | Hex. Flange Screw M6 X 65 |
| 34 | 420441521 | Torx Screw M10 X 65 |
| 35 | 420640136 | Torx Screw M10 X 175 |
