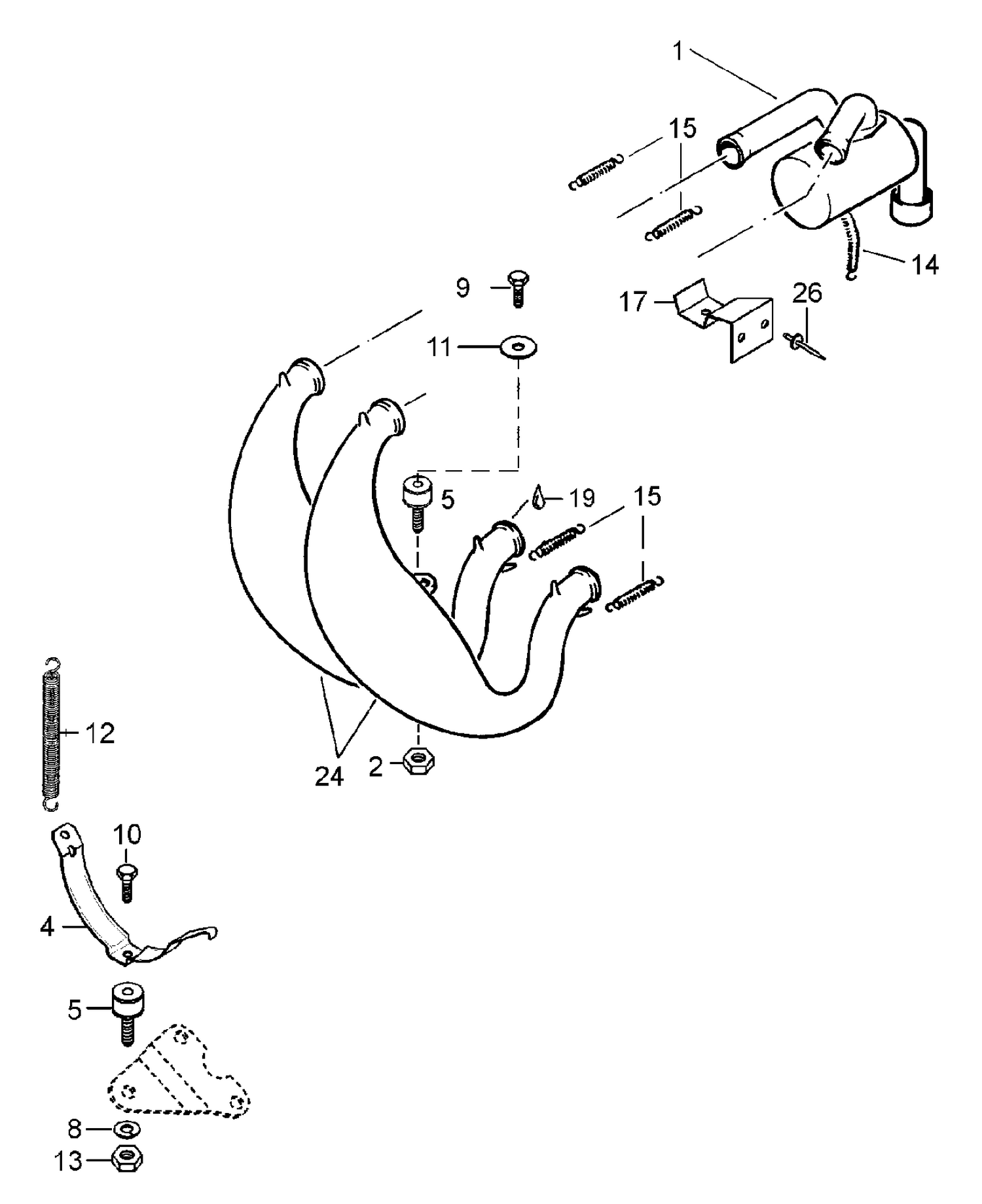

01- Muffler
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1472171 | After muffler |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 4 | 535108 | Support |
| 5 | 543357 | Rubber mount |
| 8 | 20014 | Washer |
| 9 | 40009 | Screw M8x50 |
| 10 | 40035 | Screw M8x16 |
| 11 | 234082410 | Flat Washer 8 mm This part replaces 20010. |
| 12 | 542497 | Spring |
| 13 | 33029 | Lock nut M8 |
| 14 | 414851900 | Spring |
| 15 | 415107100 | Spring This part replaces 414893700. |
| 17 | 5342273 | Support |
| 19 | 293800090 | Loctite, 80ml This part replaces 413710300. |
| 24 | 1472103 | Tune pipe PTO |
| 24 | 1472104 | Tune pipe MAG |
