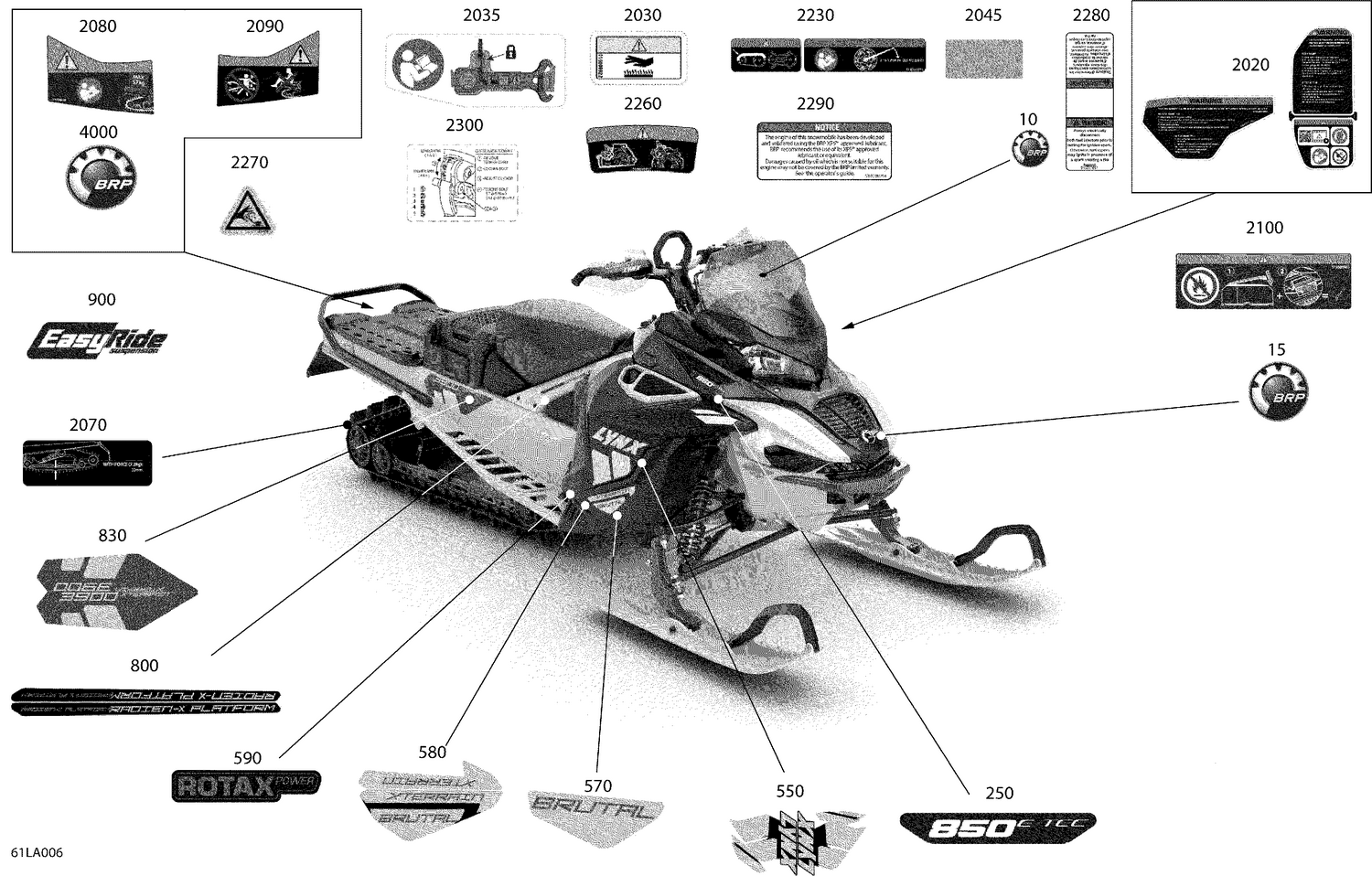

07- Body - Decals
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704904615 | BRP Logo, 13 mm |
| 15 | 516008738 | Logo 48mm "BRP" |
| 250 | 516009560 | Upper Side Panel Decal 850 E-TEC |
| 550 | 516010398 | LH/RH Upper Sidepanel Decal "LYNX" |
| 570 | 516010409 | LH Bottom Pan Decal "Brutal" |
| 580 | 516010407 | LH/RH Bottom Pan Decal "XTerrain Brutal" |
| 590 | 516008760 | Decal "Rotax Power" |
| 800 | 516010492 | LH/RH Rear Member Decal |
| 830 | 516010390 | LH/RH Tunnel Decal "3900 XTerrain" |
| 900 | 516008736 | Black, WTS Decal |
| 2020 | 516009921 | Decal - Label En/Fi/Swe |
| 2030 | 516009922 | Warning Decal |
| 2035 | 516009955 | Warning Decal |
| 2045 | 516009954 | Protective Decal |
| 2070 | 516010615 | Decal Track Tension |
| 2080 | 516010428 | Instruction/Warning Label |
| 2090 | 516009930 | Warning Decal Rotating Track |
| 2100 | 516009980 | Warning Label |
| 2230 | 516009933 | Pulley Warning Decal |
| 2260 | 516009932 | Warning Decal |
| 2270 | 516009935 | Warning Decal, Hot liquid |
| 2280 | 516007661 | Warning Decal, Injectors |
| 2290 | 516009264 | Oil Warning Decal |
| 2300 | 516009540 | Decal Ramp Clicker |
