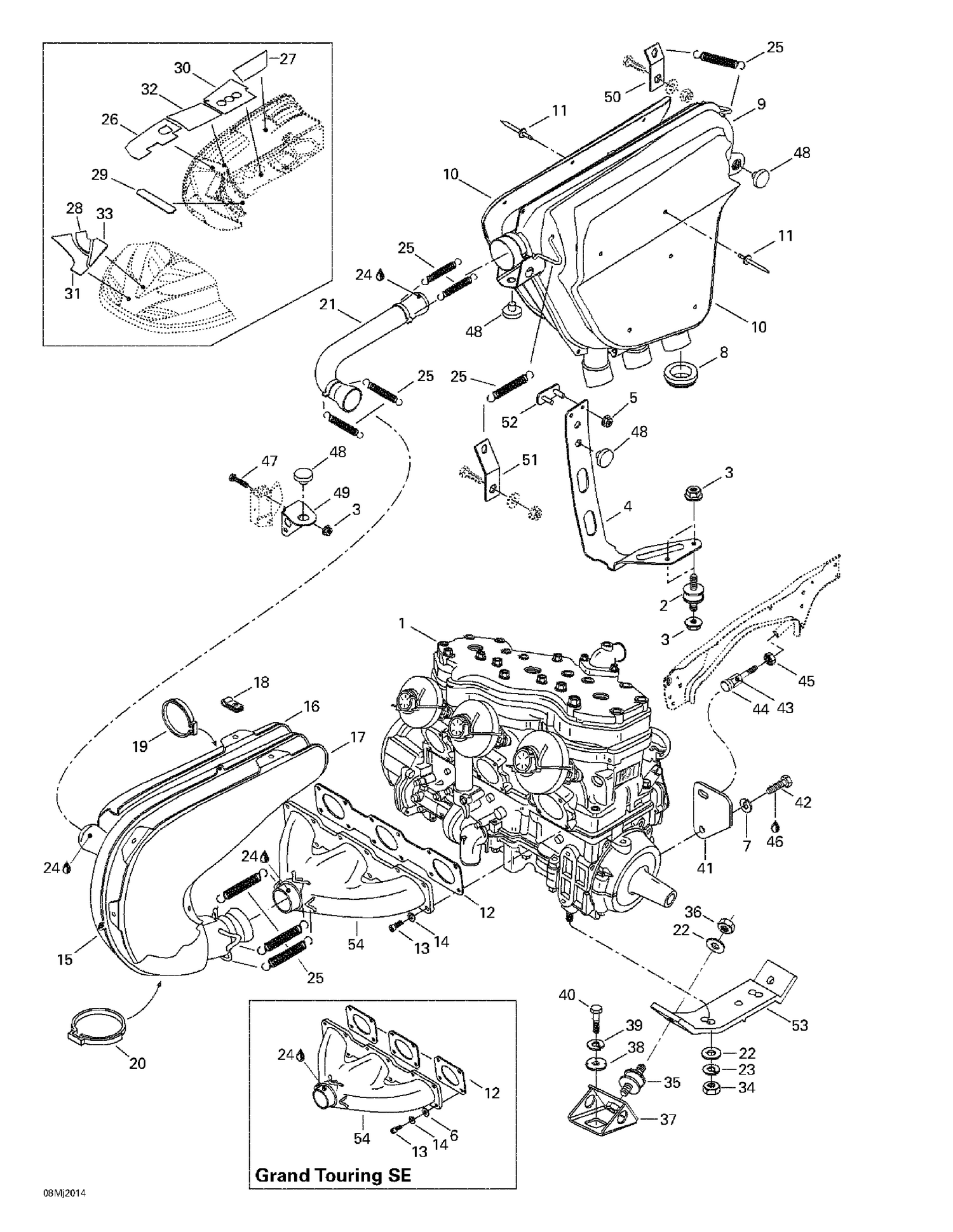

01- Engine Support And Muffler
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 514052838 | Rubber Mount |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 |
| 4 | 514052887 | Support |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7 | 234181401 | Lock Washer 8 mm |
| 8 | 570066200 | Exhaust Grommet |
| 10 | 514052900 | RH Heat Shield |
| 11 | 390910000 | Pop Rivet 3/16” |
| 13 | 205062544 | Socket Head Screw M6 X 25 |
| 14 | 234161471 | Lock Washer M6, Black |
| 16 | 514097806 | Lower Shell |
| 17 | 514097807 | Upper Shell |
| 18 | 514046503 | Cleat |
| 19 | 514052962 | Norma Gear Clamp |
| 20 | 514052902 | Norma Gear Clamp |
| 21 | 514052801 | Tail Pipe |
| 22 | 234001410 | Flat Washer 10 mm |
| 23 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 24 | 293800090 | Sealant, Loctite, 80 ml This part replaces 413710300. |
| 25 | 415107100 | Spring |
| 26 | 514098000 | Reflective Sheet |
| 27 | 415083800 | RH Reflective Sheet |
| 28 | 415114800 | RH Reflective Sheet |
| 29 | 415111900 | Reflective Sheet |
| 30 | 415115000 | Reflective Sheet |
| 31 | 415112300 | RH Reflective Sheet |
| 32 | 415084000 | Reflective Sheet |
| 33 | 415112500 | RH Reflective Sheet |
| 34 | 232006414 | Hex. Nut M10 X 1.5 |
| 35 | 570127700 | RUBBER MOUNT - Call your local BRP dealership |
| 36 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 37 | 512050900 | Engine Support |
| 38 | 512056700 | Lock Washer |
| 39 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 40 | 207102544 | Hex. Screw M10 X 25 |
| 41 | 512056000 | STOPPER PLATE - Call your local BRP dealership |
| 42 | 207181644 | Hex. Screw M8 x 16 |
| 43 | 512056900 | Stopper Screw |
| 44 | 512059055 | STOPPER - Call your local BRP dealership |
| 45 | 232120414 | HEX. NUT M12 - Call your local BRP dealership |
| 46 | 293800005 | Loctite 271, 10 ml |
| 47 | 207085044 | Hex. Screw M8 X 50 |
| 48 | 514053654 | Rubber Bumper This part replaces 570048700. |
| 49 | 514049900 | Pipe Su Deg.pport |
| 50 | 514051000 | Spring Bracket |
| 51 | 514052968 | Spring Bracket |
| 52 | 517294300 | Bracket |
| 415112400 | Feuille | Réflectrice GA 415112400 |
| 415112400 | LH | Reflective Sheet 415112400 |
| 415112600 | Feuille | Réflectrice GA 415112600 |
| 415112600 | LH | Reflective Sheet 415112600 |
| 415114900 | Feuille | Réflectrice GA 415114900 |
| 415114900 | LH | Reflective Sheet 415114900 |
| 514047200 | Bouclier | Thermique GA 514047200 |
| 514047200 | LH | Heat Shield 514047200 |
