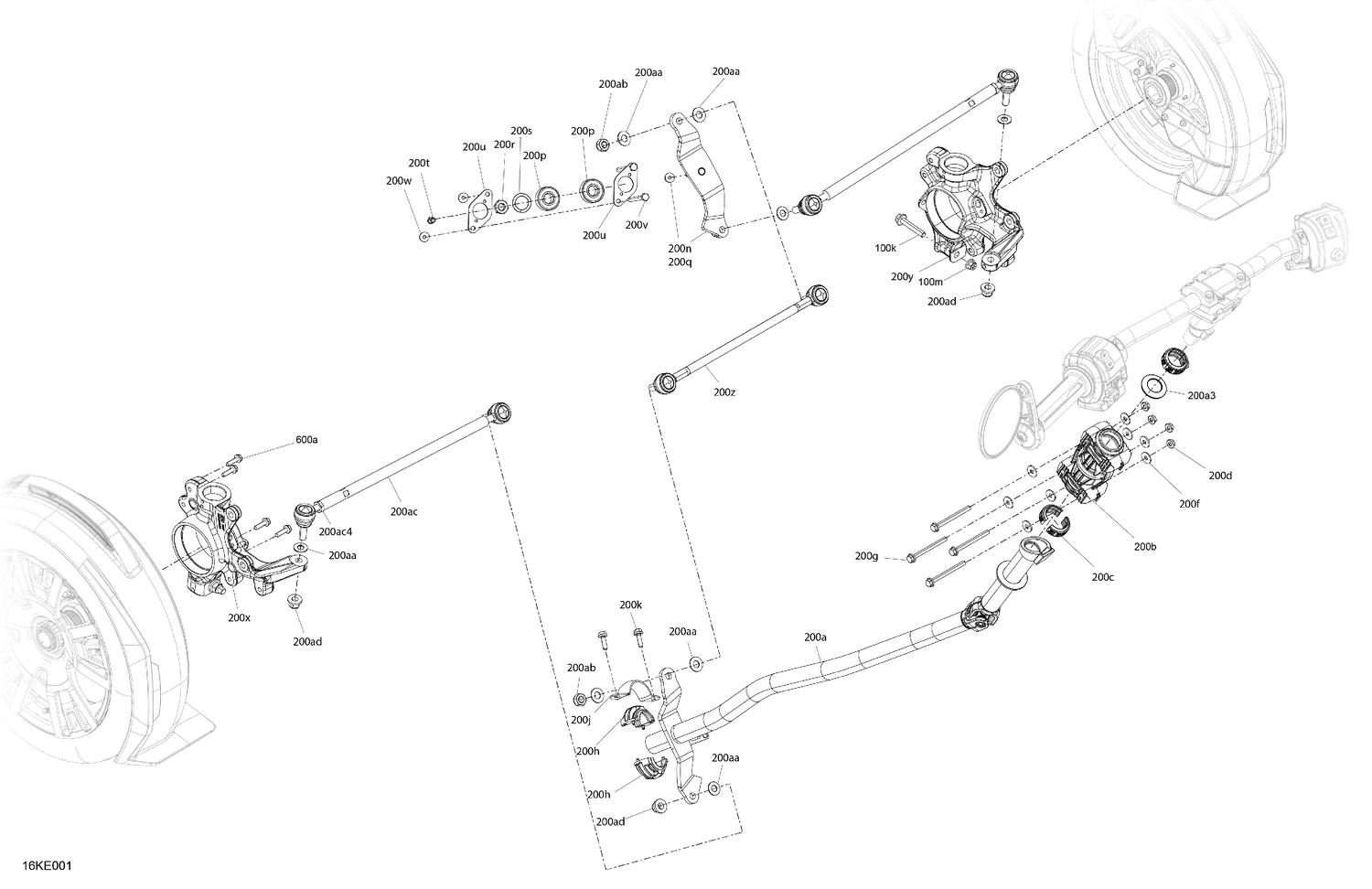

03- Mechanic - Steering Column
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 100k | 207605554 | Hex. Flange Screw M10 X 55 |
| 100m | 233201466 | Flange Elastic Nut M10 |
| 200a | 709401876 | Steering Shaft |
| 200a3 | 709402509 | Washer |
| 200aa | 506152582 | Washer |
| 200ab | 232501416 | Elastic Flange Nut M10 |
| 200ac4 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 200ad | 250100165 | Hex. Flange Elastic Nut M10 |
| 200b | 709403149 | Steering Bushing |
| 200c | 709402920 | Upper Vibration Damper |
| 200d | 233161414 | Hex. Flange Nut M6 |
| 200f | 250200164 | Flat washer M6 |
| 200g | 207567044 | Hex. Flange Screw M6x70, Scotch Grip |
| 200h | 709402919 | Half Bushing |
| 200j | 709401969 | RH Lower Column Attachment |
| 200k | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 200n | 219800520 | Pitman Arm Kit |
| 200p | 709402450 | Bearing |
| 200q | 219800520 | Pitman Arm Kit |
| 200r | 250100216 | Hex. Jam Nut M12 |
| 200s | 250001192 | Spring Washer |
| 200t | 709401527 | Sensor Sleave |
| 200u | 709402096 | Sensor Support |
| 200v | 207066544 | Hex. Screw M6 X 65 |
| 200w | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 200x | 709401922 | LH Knuckle |
| 200y | 709401923 | RH Knuckle |
| 200z | 709401954 | Tie Rod Ass'y |
