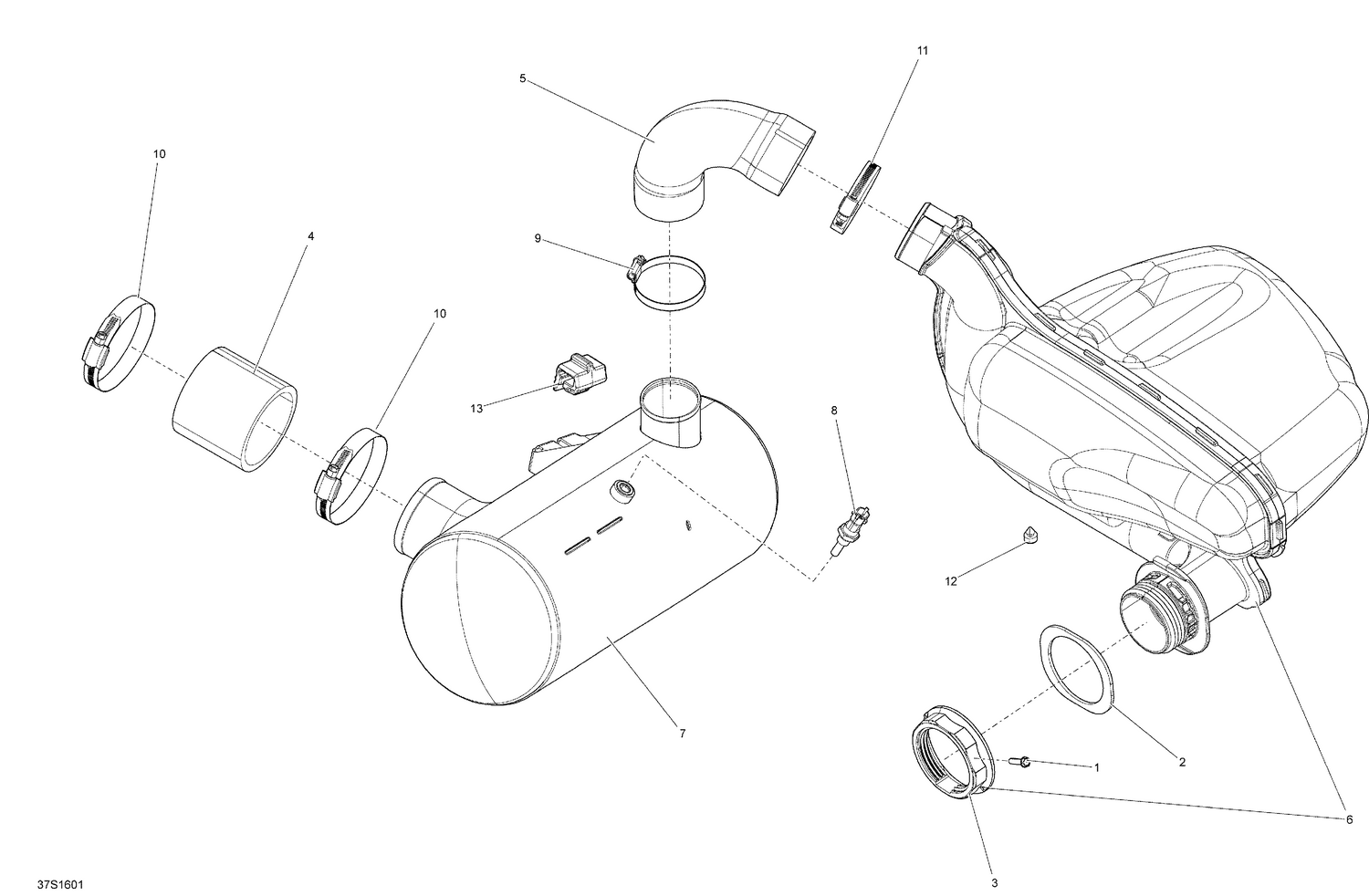

01- Exhaust System
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 2 | 268000112 | Gasket |
| 3 | 274000224 | Nut 72 mm |
| 4 | 274001453 | Hose 79.375mm - 80mm |
| 5 | 274001706 | Exhaust Hose This part replaces 274001454. |
| 6 | 274001731 | Resonator Ass'y This part replaces 274001488. |
| 7 | 274001618 | Muffler This part replaces 274001598. |
| 8 | 278002895 | Temperature Sensor |
| 9 | 293650081 | Norma Clamp |
| 10 | 293650221 | Clamp |
| 11 | 293650226 | Tridon Clamp |
| 12 | 293830005 | Rubber Bumper |
