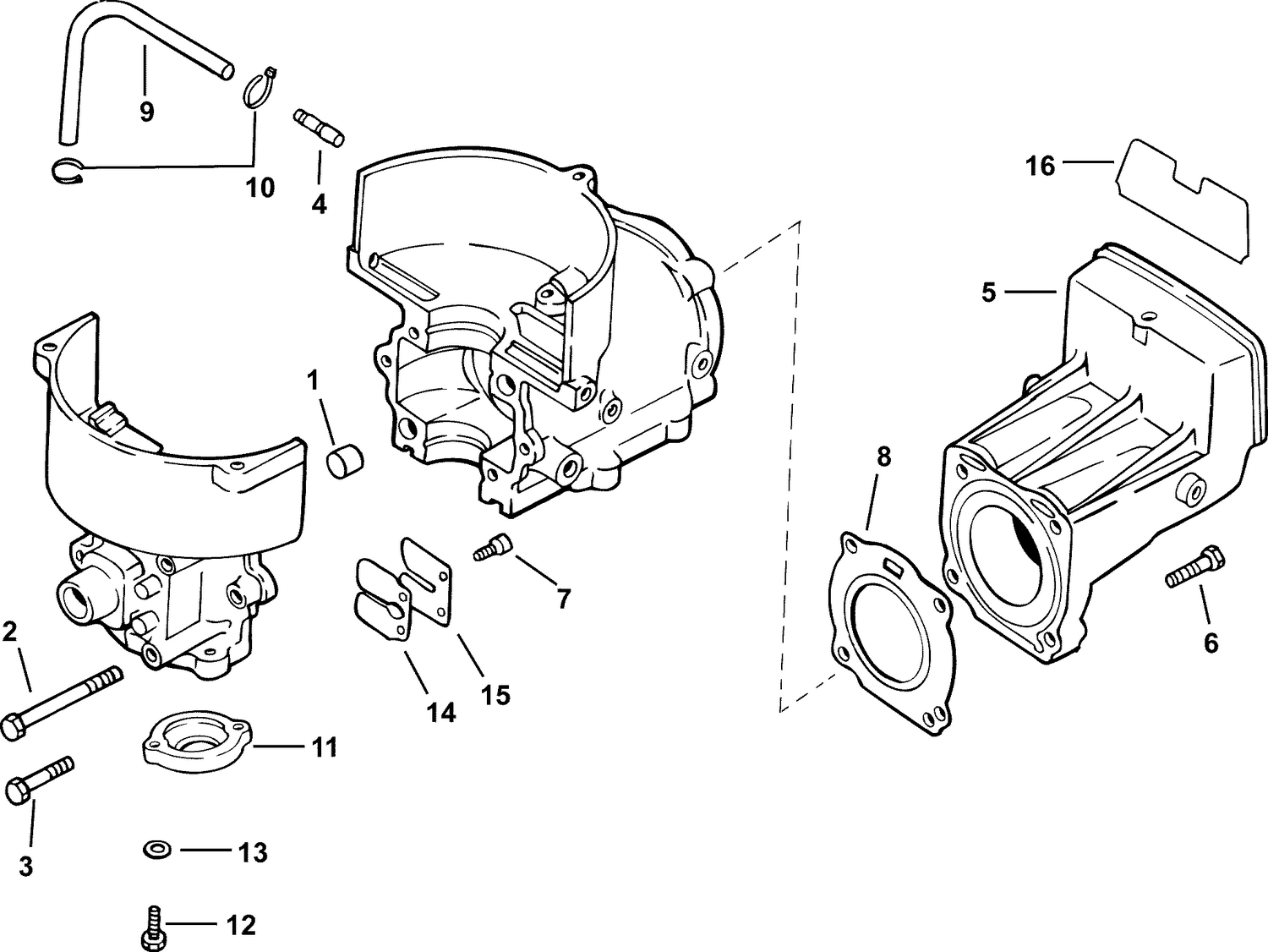

CYLINDER & CRANKCASE
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 0115537 | NIPPLE, Water pump indicator |
| 5 | 0115495 | CYLINDER HEAD |
| 6 | 0446032 | VIS, admission vers culasse |
| 7 | 0115505 | SCREW, Leaf valve |
| 8 | 0115496 | GASKET, Cylinder had |
| 9 | 0115212 | HOSE, Water pump indicator |
| 11 | 0451613 | CRANKCASE HEAD |
| 12 | 0115490 | SCREW, Crankcase head |
| 13 | 0115198 | SPRING WASHER, Fuel tank screw |
| 14 | 0115503 | LEAF VALVE |
| 15 | 0115504 | LEAF STOP |
| 0115187 | ENSEMBLE | CYLINDRES & CARTER-MOTEUR 0115187 |
