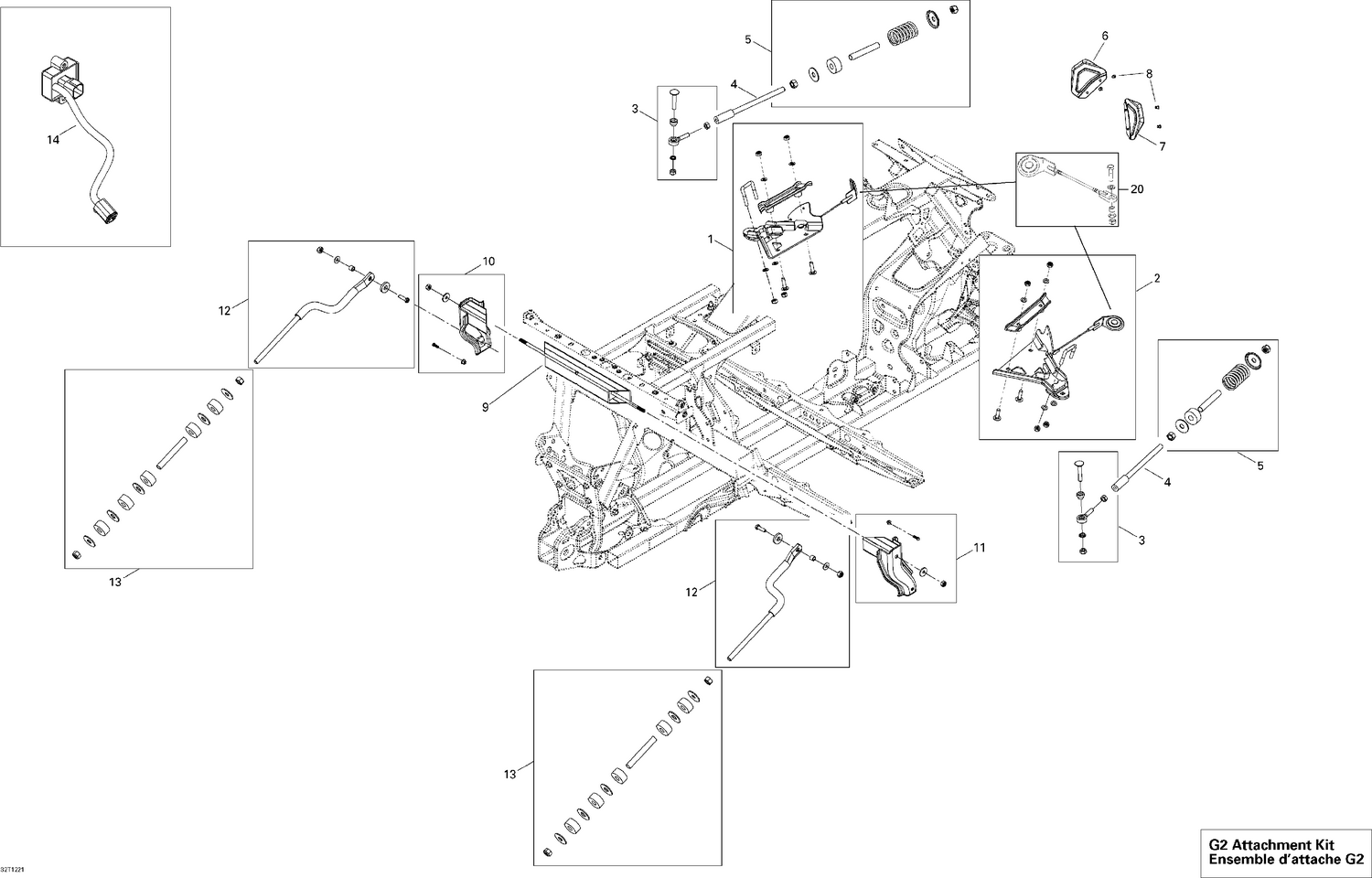

| Ref | Part Number | Description |
|---|
| 1 |
715002389 |
LH Front Sub-Table Kit This part replaces 715001620. |
| 2 |
715002390 |
RH Front Sub-Table Kit This part replaces 715001621. |
| 3 |
715001614 |
Front Ball Joint Kit |
| 4 |
705401214 |
Front Anti-Rotation |
| 5 |
715001615 |
Rubber and Front Spring Kit |
| 6 |
706201185 |
LH PROTECTOR - Call your local BRP dealership |
| 7 |
706201186 |
RH PROTECTOR - Call your local BRP dealership |
| 8 |
293150104 |
Pop Rivet 3/16" |
| 9 |
705501628 |
ATTACH TUBE - Call your local BRP dealership |
| 10 |
715001622 |
LH ATTACHMENT ARM KIT - Call your local BRP dealership |
| 11 |
715001623 |
RH ATTACHMENT ARM KIT - Call your local BRP dealership |
| 12 |
715001618 |
Rear Anti-Rotation Bar Kit |
| 13 |
715001619 |
Rear Rubbers Kit |
| 14 |
715001202 |
Ens. 3M DPS |
