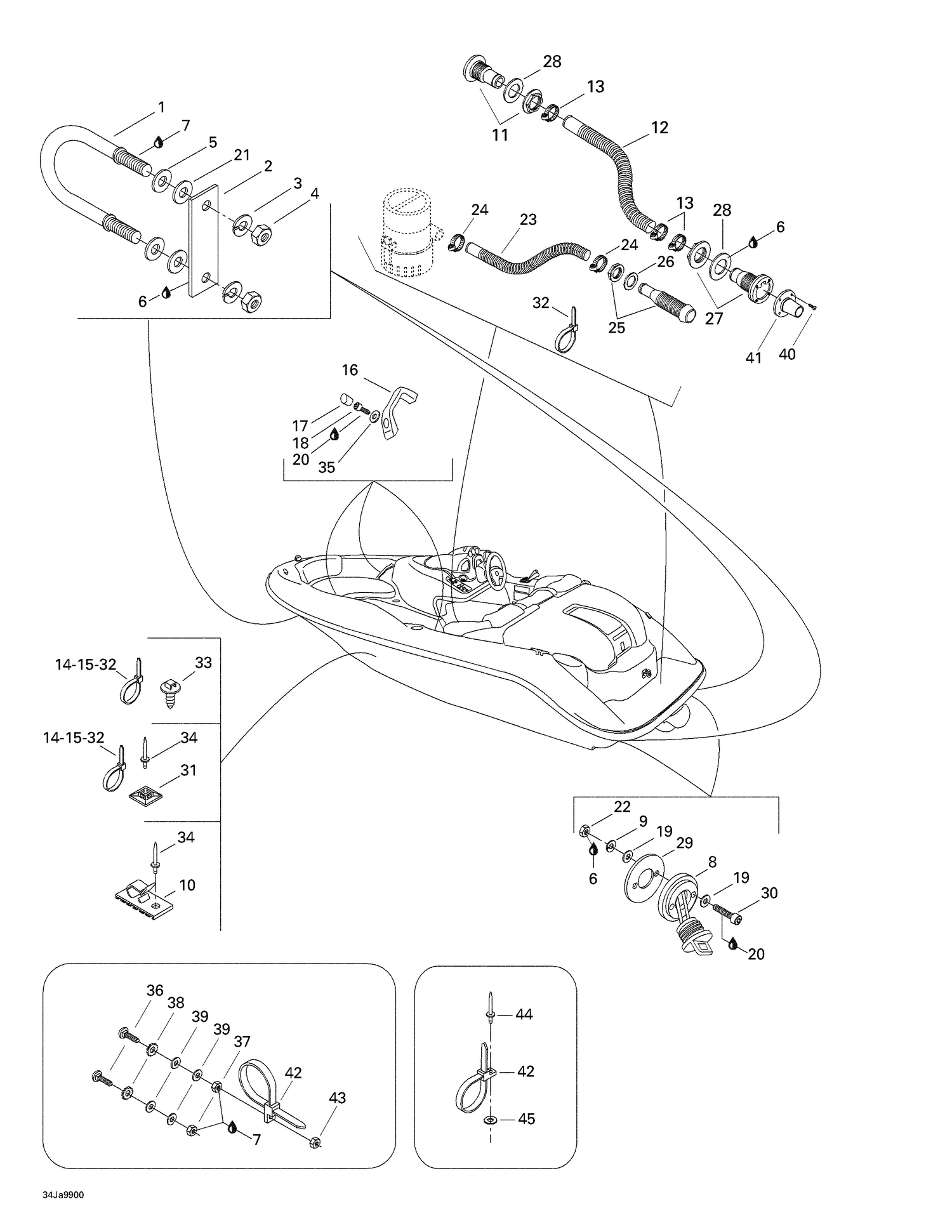

| Ref | Part Number | Description |
|---|
| 1 |
292000063 |
U-CLAMP - Call your local BRP dealership |
| 2 |
291000307 |
RETAINING PLATE - Call your local BRP dealership |
| 3 |
234181601 |
Lock Washer 8 mm, Stainless |
| 4 |
232081600 |
Hex. Nut M8 |
| 5 |
293050001 |
Flat Washer M8.5 x 18 |
| 6 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 7 |
293800005 |
Loctite 271, 10 ml |
| 8 |
292000187 |
Drain Plug |
| 9 |
234141601 |
Lock Washer 4 mm |
| 10 |
293750005 |
TIE CLAMP - Call your local BRP dealership |
| 11 |
293710060 |
FITTING - Call your local BRP dealership |
| 12 |
204070560 |
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership This part replaces 291000738. |
| 13 |
293650074 |
Norma Clamp |
| 14 |
293750002 |
Tie Wrap 142 mm |
| 15 |
293750008 |
Tie Wrap 368 mm |
| 17 |
204070025 |
Snap Cap (Marine) |
| 18 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 19 |
234040600 |
Flat Washer 4 mm |
| 20 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 21 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 22 |
232041600 |
NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership |
| 23 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership This part replaces 291000620. |
| 24 |
293650080 |
Norma Clamp |
| 25 |
293710162 |
Fitting This part replaces 293710015. |
| 26 |
293250006 |
GASKET - Call your local BRP dealership |
| 27 |
204060071 |
THRU HULL FITTING - Call your local BRP dealership |
| 28 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250039. |
| 29 |
293250030 |
GASKET - Call your local BRP dealership |
| 30 |
205042560 |
Socket Head Screw M4 X 25 |
| 31 |
293750015 |
TIE RAP MOUNT - Call your local BRP dealership |
| 32 |
414115200 |
Tie-Rap 180 mm This part replaces 294000606. |
| 33 |
293730040 |
Mount Dart This part replaces 293730018. |
| 34 |
293150008 |
Pop Rivet 3/16" |
| 35 |
234061600 |
Stainless Flat Washer M6 |
| 36 |
204000130 |
Elevator Bolt |
| 37 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 38 |
234381608 |
TOOTHED LOCK WASHER - Call your local BRP dealership |
| 39 |
234081600 |
Stainless, Flat Washer 8 mm |
| 40 |
211000180 |
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership |
| 41 |
204060188 |
SCUPPER VALVE - Call your local BRP dealership |
| 42 |
293750017 |
Tie-Rap |
| 43 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 44 |
293150013 |
Pop Rivet 3/16" |
