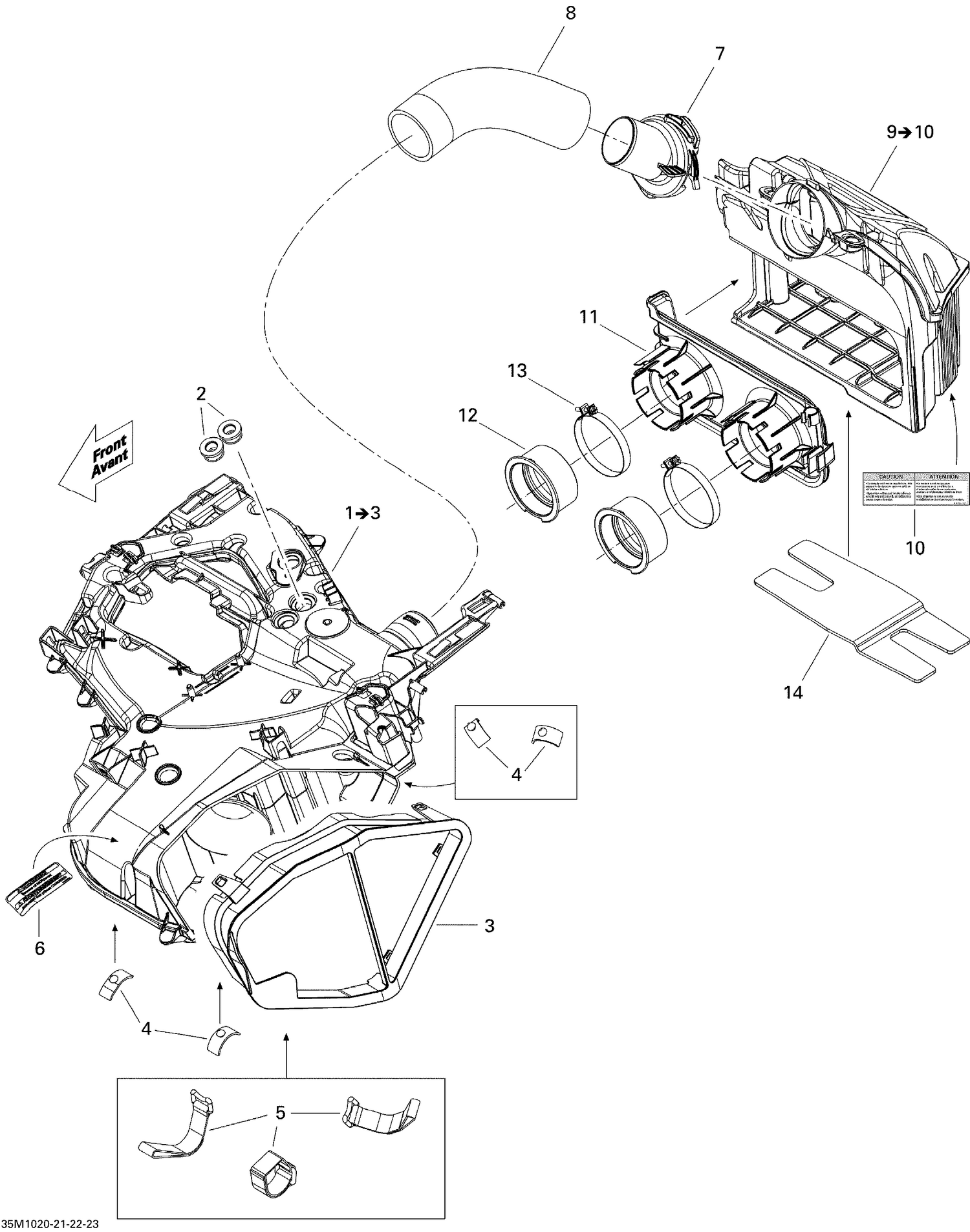

02- Air Intake System
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000574 | Grommet |
| 3 | 508000568 | Air Intake Filter |
| 4 | 508000537 | Stopper |
| 5 | 508000820 | Velcro Strip This part replaces 508000532. |
| 6 | 516002965 | WARNING DECAL, HOT PARTS - Call your local BRP dealership |
| 7 | 508000562 | Link |
| 8 | 508000406 | Tube |
| 10 | 516003371 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 11 | 508000564 | ADAPTER PLATE - Call your local BRP dealership |
| 12 | 508000594 | Air Intake Adapter |
| 13 | 508000369 | Gemi Clamp |
