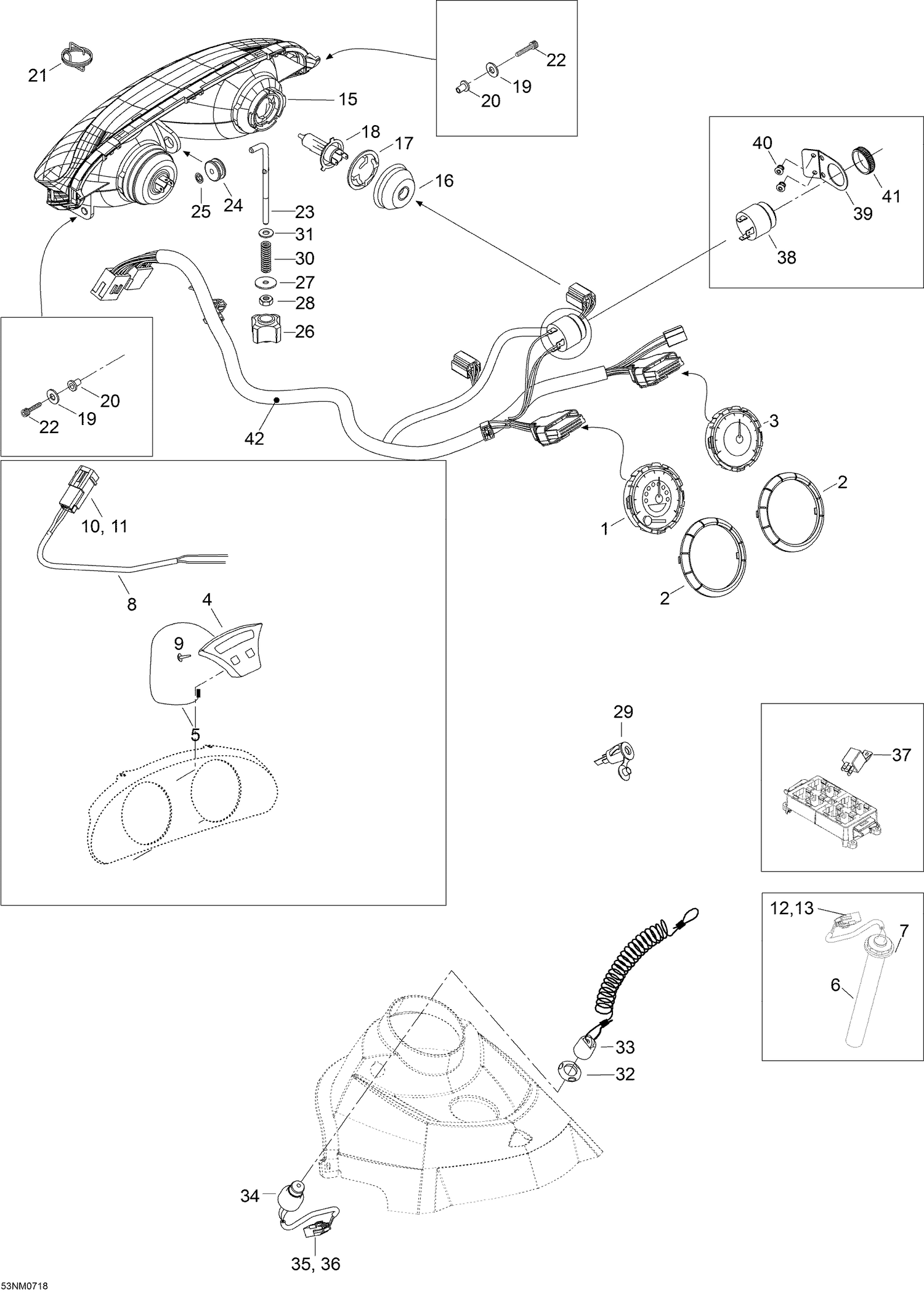

| Ref | Part Number | Description |
|---|
| 1 |
515176477 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515175651. |
| 3 |
515176478 |
TACHOMETER - Call your local BRP dealership |
| 4 |
605352671 |
Multi-Display |
| 5 |
605353700 |
Temperature sencor multi display |
| 6 |
605354767 |
Fuel sencor |
| 7 |
293720058 |
Grommet |
| 8 |
605352917 |
Kabel , Multi-display |
| 9 |
40887 |
Wronic-screw 4,2 x 9,5 |
| 10 |
605642629 |
Connector AMP 926882-3 - Call your local BRP dealership This part replaces 42614. |
| 11 |
42268 |
Male connector |
| 12 |
42269 |
Male connector |
| 13 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 16 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 17 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 18 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 19 |
20008 |
Washer A5,3 |
| 20 |
250100018 |
NUT M5 - Call your local BRP dealership |
| 21 |
5447238 |
Spring |
| 22 |
40235 |
Screw M5 x 35 |
| 23 |
605450023 |
ADJUSTER ROD - Call your local BRP dealership |
| 24 |
415100800 |
Grommet - Call your local BRP dealership |
| 25 |
732610072 |
Push Nut |
| 26 |
515175548 |
Handle - Call your local BRP dealership |
| 27 |
20038 |
Washer 6mm |
| 28 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 29 |
42026 |
Flush mounted socket |
| 30 |
415100600 |
SPRING - Call your local BRP dealership |
| 31 |
20003 |
Washer A6,4 |
| 32 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 33 |
515178284 |
Dess. This part replaces 515176446. |
| 35 |
515175232 |
Male terminal |
| 36 |
515175494 |
Male terminal housing |
| 37 |
515176011 |
Relay |
| 38 |
515176035 |
HORN - Call your local BRP dealership |
| 39 |
5447941 |
HORN SUPPORT - Call your local BRP dealership |
| 40 |
36005 |
Rivet |
| 41 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
