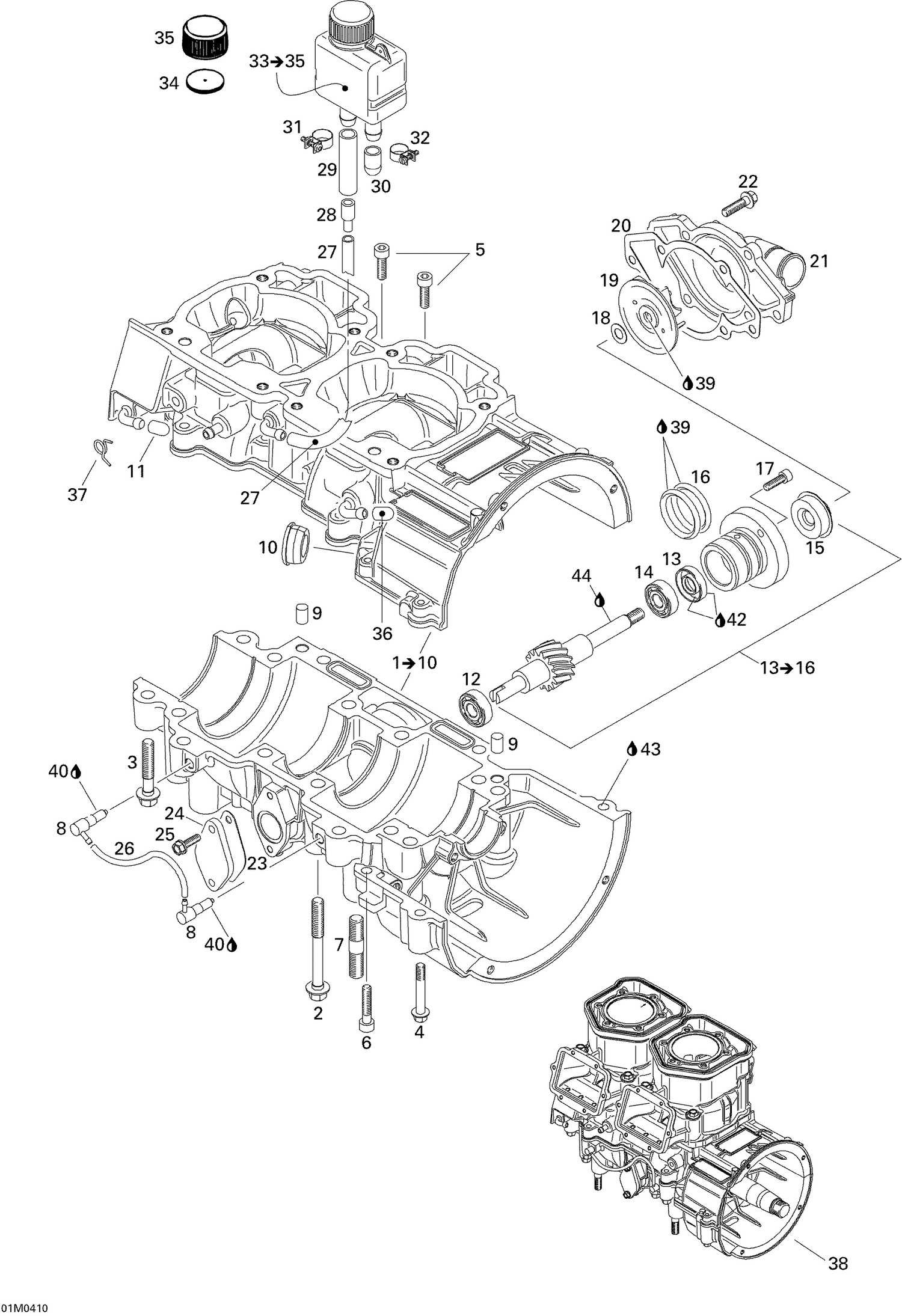

01- Crankcase

01- Crankcase

Parts (41)

RefPart NumberDescription
2 420640836 Hex. Collar Screw M8 X 75
3 420640433 Collar Hex Screw M8 X 45 This part replaces 420640431.
4 420640312 Allen Screw M6 x 45 This part replaces 420640311.
5 205062044 Socket Head Screw M6 X 20
6 205063044 Socket Head Screw M6 X 30
7 420641834 STUD M10 X 29 - Call your local BRP dealership
8 420956511 Check Valve This part replaces 420956510.
9 420632010 Center Pin 8 X 12
10 420860965 Cable Grommet
11 420960770 Cap
12 420232100 Ball Bearing
13 420230195 Oil Seal
14 420232100 Ball Bearing
15 420650371 Rotary Seal This part replaces 420650370.
16 420950890 O-Ring
17 420840514 Allen Screw M5 x 16 This part replaces 420840511.
18 420227945 Thrust Washer
19 420222505 Water Impeller
20 420931811 Gasket This part replaces 420931810.
21 420922630 Water Pump Housing
22 420240034 Hex. Screw M6 X 25 This part replaces 420240031.
23 420931568 Gasket This part replaces 420931565.
24 420810827 Cover Plate This part replaces 420810825.
25 420941928 Taptite Screw M5 X 16 This part replaces 420941925.
26 219704404 Oil Hose 1500Mm Long
27 219704414 Was 415110000 Polyurethane Hose 5.2 mm
28 420874370 Fitting
29 420956239 OIL TUBE - Call your local BRP dealership
30 420960279 Closure Cap
31 420951260 CLAMP - Call your local BRP dealership
32 420951241 CLAMP - Call your local BRP dealership This part replaces 420951240.
34 420850350 Rubber Gasket
35 420956250 Oil Tank Cap
36 420960777 CAP - Call your local BRP dealership
37 420938190 CLAMP - Call your local BRP dealership
38 420045304 Short Block 453
39 293800060 Loctite 243, 10 ml
40 219703000 Sealant Loctite 648 This part replaces 413711400.
41 413707000 Dow Corning 111, 150 g
42 420899271 Petamo Grease, GHY133N, 400 g
43 420297907 Sealing Compound Loctite 5366 310Ml This part replaces 420297906.
