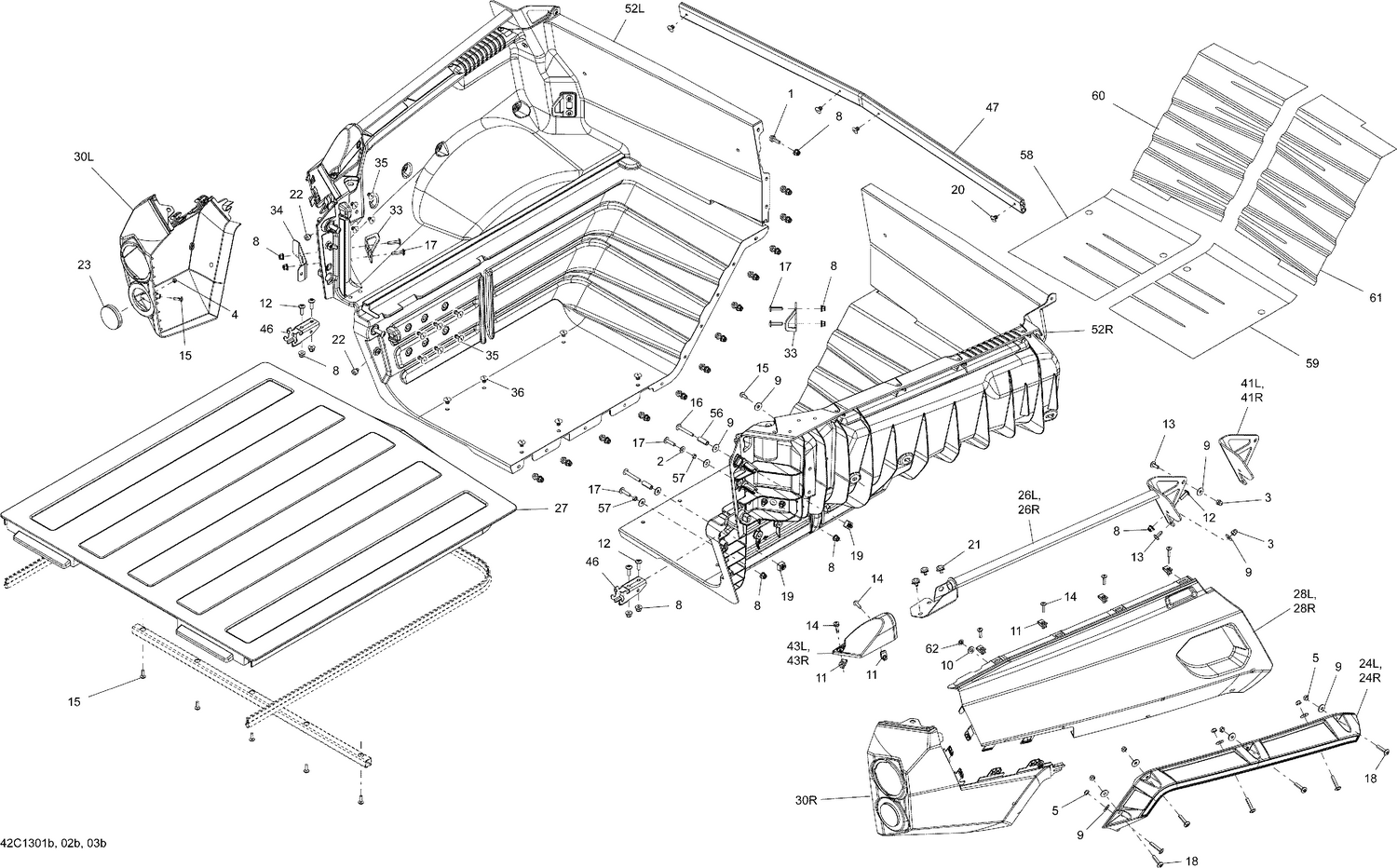

09- Rear Cargo Box
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2 | 224061121 | Flat Washer |
| 3 | 232361493 | Domed Nut M6 |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 9 | 234062670 | Stainless Steel Flat Washer |
| 10 | 234081100 | Flat Washer 8 mm, Nylon |
| 11 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 12 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 13 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 14 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 15 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 16 | 250000215 | Torx Screw M6 X 45 |
| 17 | 250000284 | Torx Screw M6 x 25 |
| 19 | 269500725 | M6 Nut Housing Ass'y |
| 20 | 293150104 | Pop Rivet 3/16" |
| 22 | 293830005 | Rubber Bumper |
| 23 | XXX | Not Available As Spare Parts |
| 27 | 708300131 | Separator Pannel Ass'y |
| 30L | 708301383 | LH Rear Facia This part replaces 708300103. |
| 30L | XXX | Not Available As Spare Parts |
| 30R | 708301384 | RH Rear Facia This part replaces 708300104. |
| 30R | XXX | Not Available As Spare Parts |
| 33 | 708300183 | Retaining Plate |
| 34 | 708300206 | Retaining Plate Support |
| 35 | 293150100 | Pop Rivet 3/16" |
| 36 | 293150104 | Pop Rivet 3/16" |
| 41L | XXX | Not Available As Spare Parts |
| 41R | XXX | Not Available As Spare Parts |
| 46 | 708300345 | Upper Pivot Support |
| 47 | 708301633 | Front Support This part replaces 708300346. |
| 52L | 715002361 | Left Box Kit This part replaces 715001259. |
| 52R | 715001257 | RH Box Ass'y |
| 56 | 708300736 | Spacer |
| 57 | 708300737 | Bushing |
| 58 | 708300809 | Heat Deflector Sheet |
| 59 | 708300810 | Heat Deflector Sheet |
| 60 | 708300811 | Heat Deflector Sheet |
| 61 | 708300812 | Heat Deflector Sheet |
