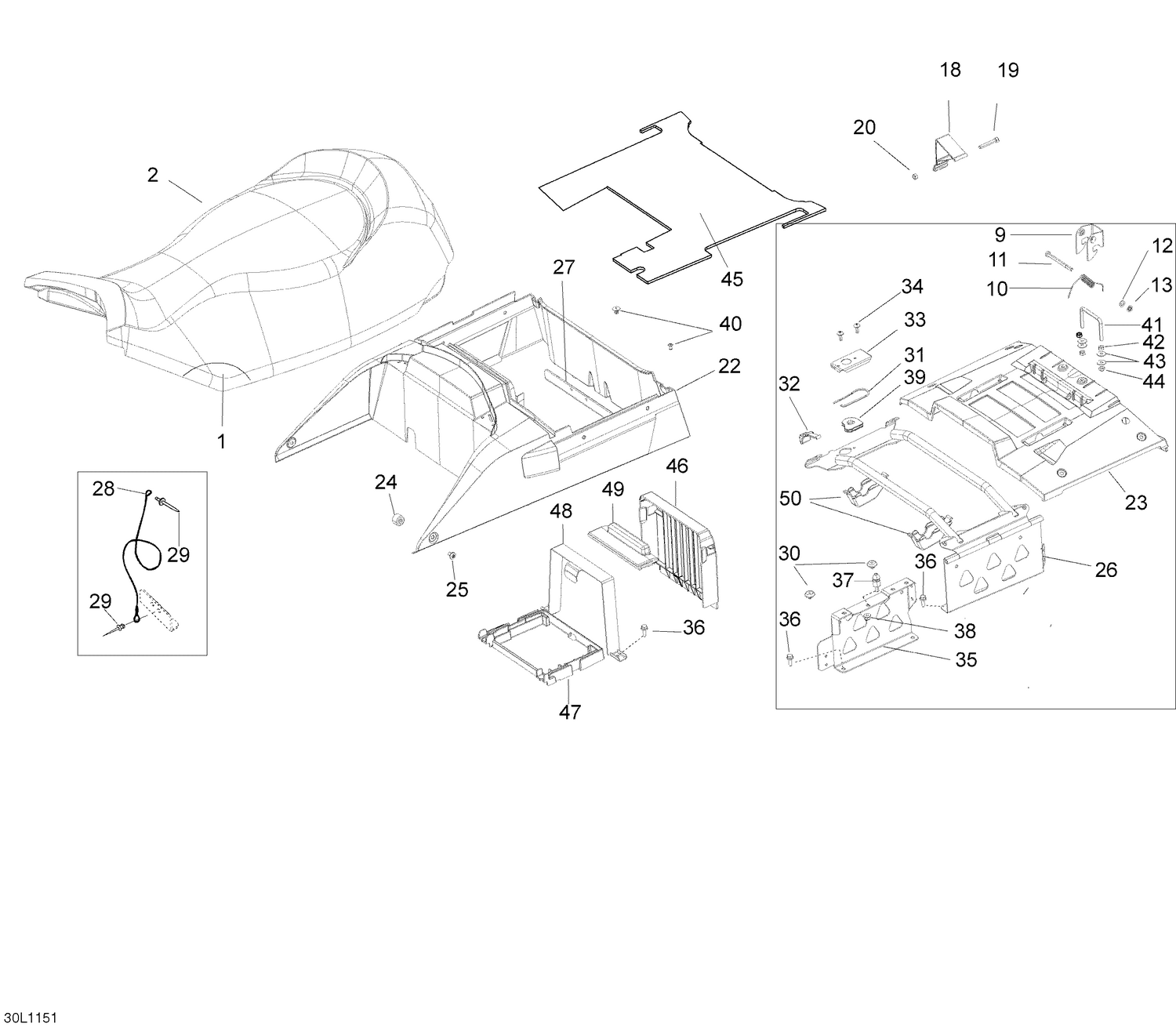

09- Seat
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510005807 | Front Seat Foam This part replaces 510005316. |
| 2 | 510005722 | Cover, front This part replaces 510005327. |
| 9 | 708000144 | Latch, Black |
| 10 | 708000369 | Spring This part replaces 708000922. |
| 11 | 207068044 | Screw Hex. M6 X 80 |
| 12 | 732610072 | Push Nut |
| 13 | 234061410 | Flat Washer 6 mm |
| 18 | 510005139 | Security Lock |
| 19 | 205064044 | Socket Screw HD.DIN.912 |
| 20 | 33010 | Lock Nut M6 (1=10Pcs) |
| 22 | 510006243 | Storage Box This part replaces 510004874. |
| 23 | 510006244 | Storage Box Cover This part replaces 510005055. |
| 24 | 510005147 | Bushing |
| 25 | 250000454 | Torx Screw M6 X 12 |
| 26 | 510005714 | Fastening Tube This part replaces 510004951. |
| 27 | 510005156 | Cable Support Plate |
| 28 | 293750070 | Seat Retainer Cable This part replaces 546777. |
| 29 | 390402200 | Pop Rivet 3/16 |
| 30 | 605452114 | Plug |
| 31 | 269700017 | Latch Spring |
| 32 | 510005072 | Puller |
| 33 | 510005698 | Lock Pin Cover This part replaces 510005112. |
| 34 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 35 | 510004998 | LOCKING PLATE (FRAME) - Call your local BRP dealership |
| 36 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 37 | 605452035 | LOCK PIN - Call your local BRP dealership |
| 38 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 39 | 510005044 | Lock Pin Guide |
| 40 | 293150104 | Pop Rivet 3/16 |
| 41 | 510004876 | FASTENER PIN - Call your local BRP dealership |
| 42 | 250000135 | Hex. Nut M6 |
| 43 | 20117 | Washer |
| 44 | 33010 | Lock Nut M6 (1=10Pcs) |
| 45 | 510005043 | Foam |
| 46 | 510005079 | Battery Cover |
| 47 | 515176804 | Battery Support |
| 48 | 510005250 | Battery Strap |
| 49 | 605356094 | Strap Cover |
