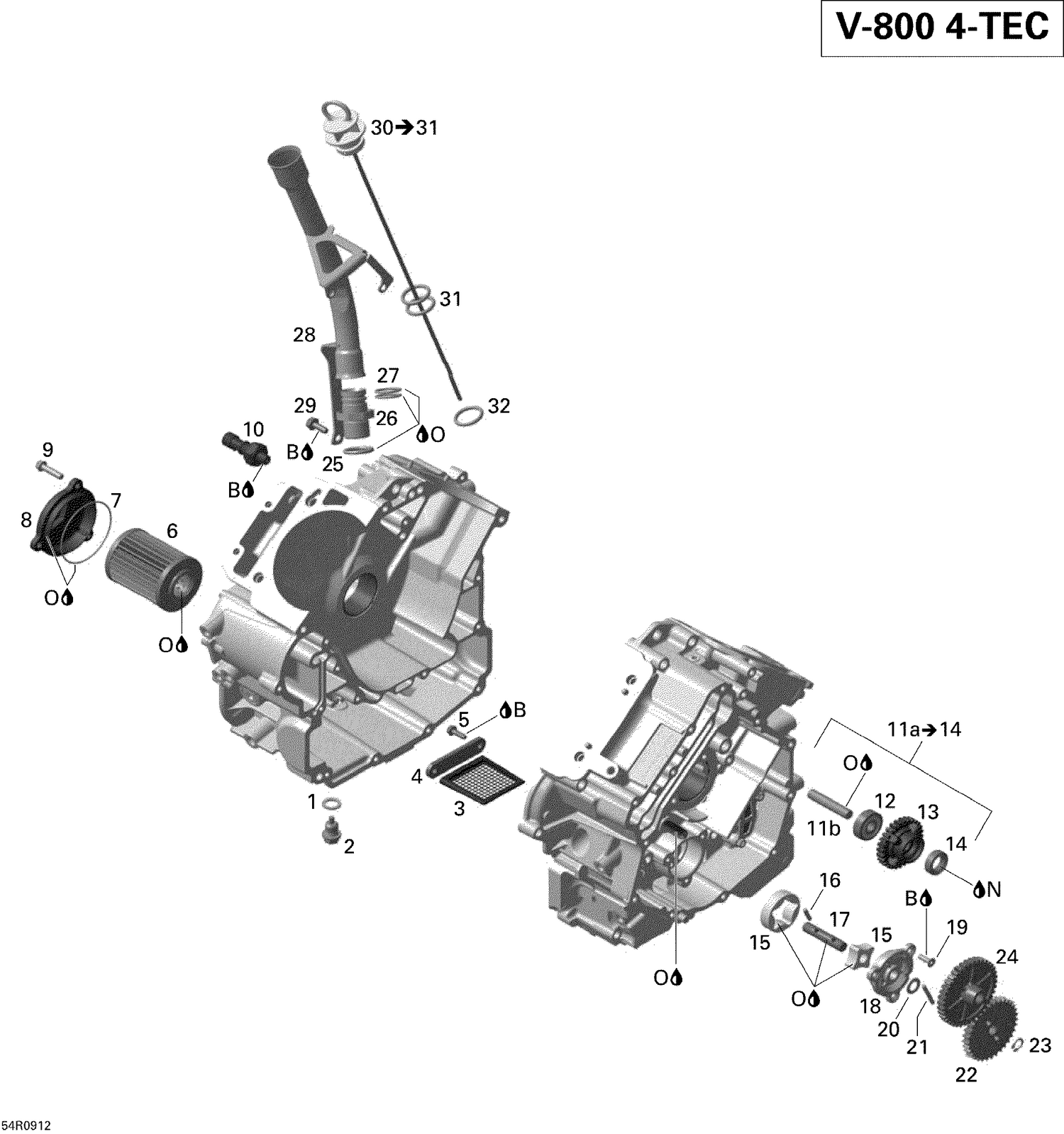

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| N |
293550030 |
Grease, Super Lube |
| 1 |
420250640 |
Copper Washer |
| 2 |
420241787 |
Magnetic Drain Plug M12 This part replaces 420241786. |
| 3 |
420256322 |
Oil Sieve This part replaces 420256321. |
| 4 |
420210661 |
Cover Sieve |
| 5 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 6 |
420256188 |
Oil Filter |
| 7 |
420230923 |
O-Ring This part replaces 420230920. |
| 8 |
420612135 |
Oil Filter cover This part replaces 420210418. |
| 9 |
420641238 |
Torx Flange Screw M6 X 25 |
| 10 |
420856537 |
Oil Pressure Switch This part replaces 420256773. |
| 11b |
Not |
Available As Spare Part - Location Pin |
| 12 |
Not |
Available As Spare Part - Ball Bearing |
| 13 |
Not |
Available As Spare Part - Idle Gear, 28 Teeth |
| 14 |
420430555 |
Oil Seal |
| 15 |
420256348 |
Oil Pump Rotor This part replaces 420256347. |
| 16 |
420232731 |
Needle Pin This part replaces 420232730. |
| 17 |
420237059 |
Oil Pump Shaft |
| 18 |
420210646 |
Oil Pump Cover This part replaces 420210641. |
| 19 |
420640823 |
Torx Head Screw M5 X 16 This part replaces 420640821. |
| 20 |
420827590 |
Thrust Washer |
| 21 |
420232431 |
Needle Pin This part replaces 420232430. |
| 22 |
420434320 |
Oil Pump Gear, 33 Teeth |
| 23 |
420245330 |
Snap Ring |
| 24 |
420434300 |
Idle Gear, 38 Teeth |
| 25 |
420631640 |
O-Ring |
| 26 |
420856610 |
Adaptor |
| 27 |
420430373 |
O-Ring This part replaces 420430370. |
| 28 |
420856920 |
OIL TUBE - Call your local BRP dealership |
| 29 |
420240385 |
TAPTITE SCREW M6 X 12 - Call your local BRP dealership |
| 31 |
420631640 |
O-Ring |
| 32 |
420631612 |
O-Ring This part replaces 420631610. |
