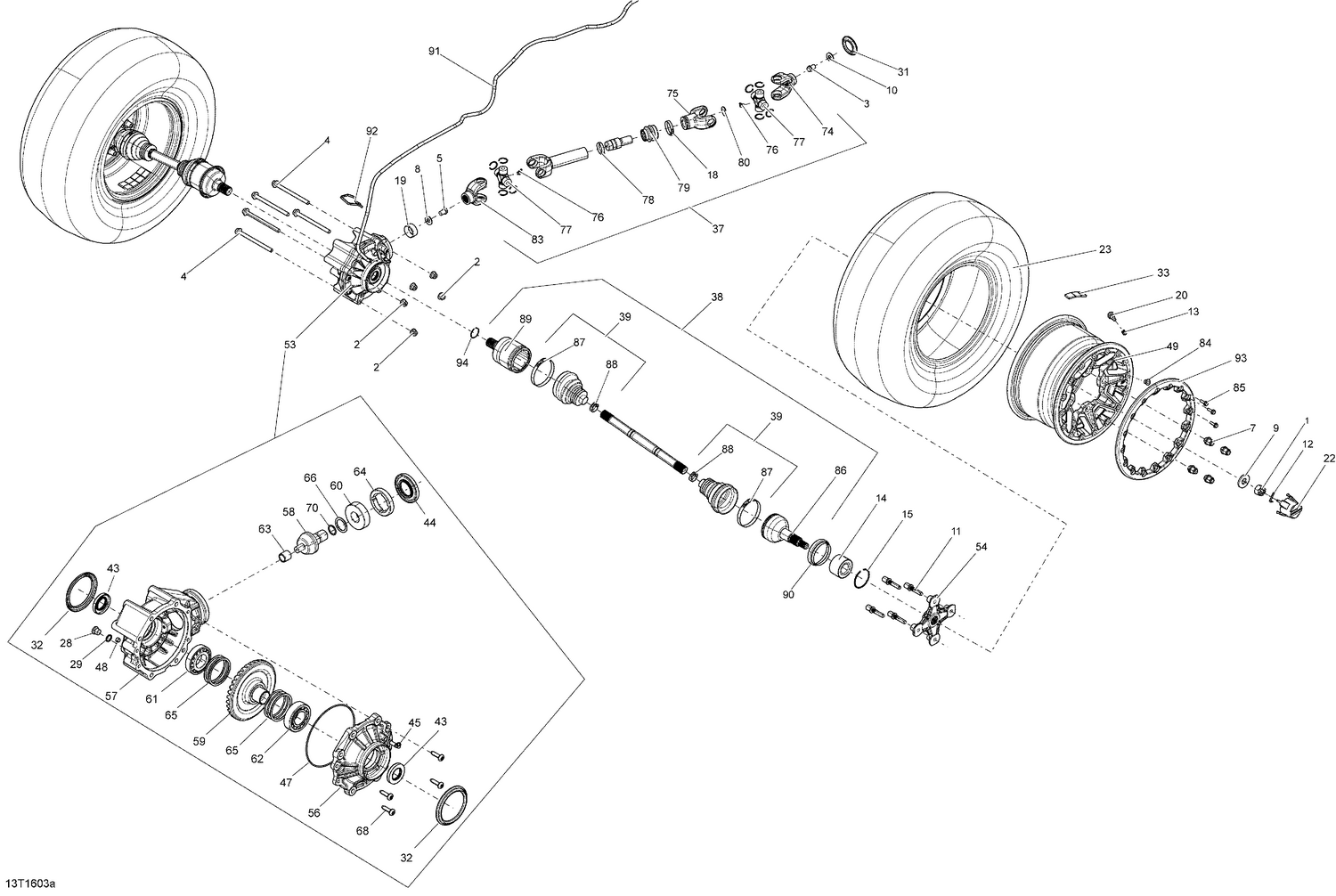

08- Drive System, Rear
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 |
| 3 | 250001039 | Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 4 | 250001041 | Hex. Flange Screw M10 X 135 This part replaces 250000508. |
| 5 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000615. |
| 7 | 250100184 | Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 8 | 250200014 | Flat Washer M10 |
| 9 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 10 | 250200102 | Flat Washer M12 |
| 12 | 250400071 | Cotter Pin |
| 13 | 293000110 | Valve Cap |
| 14 | 293350150 | Ball Bearing This part replaces 293350040. |
| 15 | 293370019 | Circlip |
| 19 | 705400036 | Wear Ring |
| 20 | 705400193 | Rim Valve With Cap |
| 22 | 705400928 | Wheel Cap |
| 28 | 705500504 | Fill Level Plug |
| 29 | 705500506 | Copper Washer |
| 31 | 705501123 | Protector |
| 32 | 705501124 | Wear Ring |
| 39 | 705501864 | Boot Kit |
| 43 | 705501556 | Oil Seal |
| 45 | 705501584 | Breather Tube |
| 48 | 705501724 | Plug Drain |
| 54 | 705501900 | Wheel Hub |
| 68 | 705502063 | Screw |
| 79 | 715900118 | Rubber Boot |
| 86 | 705501776 | JOINT_CV EXT - Call your local BRP dealership |
| 87 | 715900241 | Oetiker Clamp, 82.1 mm |
| 88 | 715900242 | Oetiker Clamp, 27.3 mm |
| 89 | 705501780 | PLUNGING JOINT - Call your local BRP dealership |
| 89a | 705501781 | Circlip |
| 91 | 219704410 | Polyurethane Hose 10000Mm Long |
| 92 | 293750008 | Tie Wrap 368 mm |
