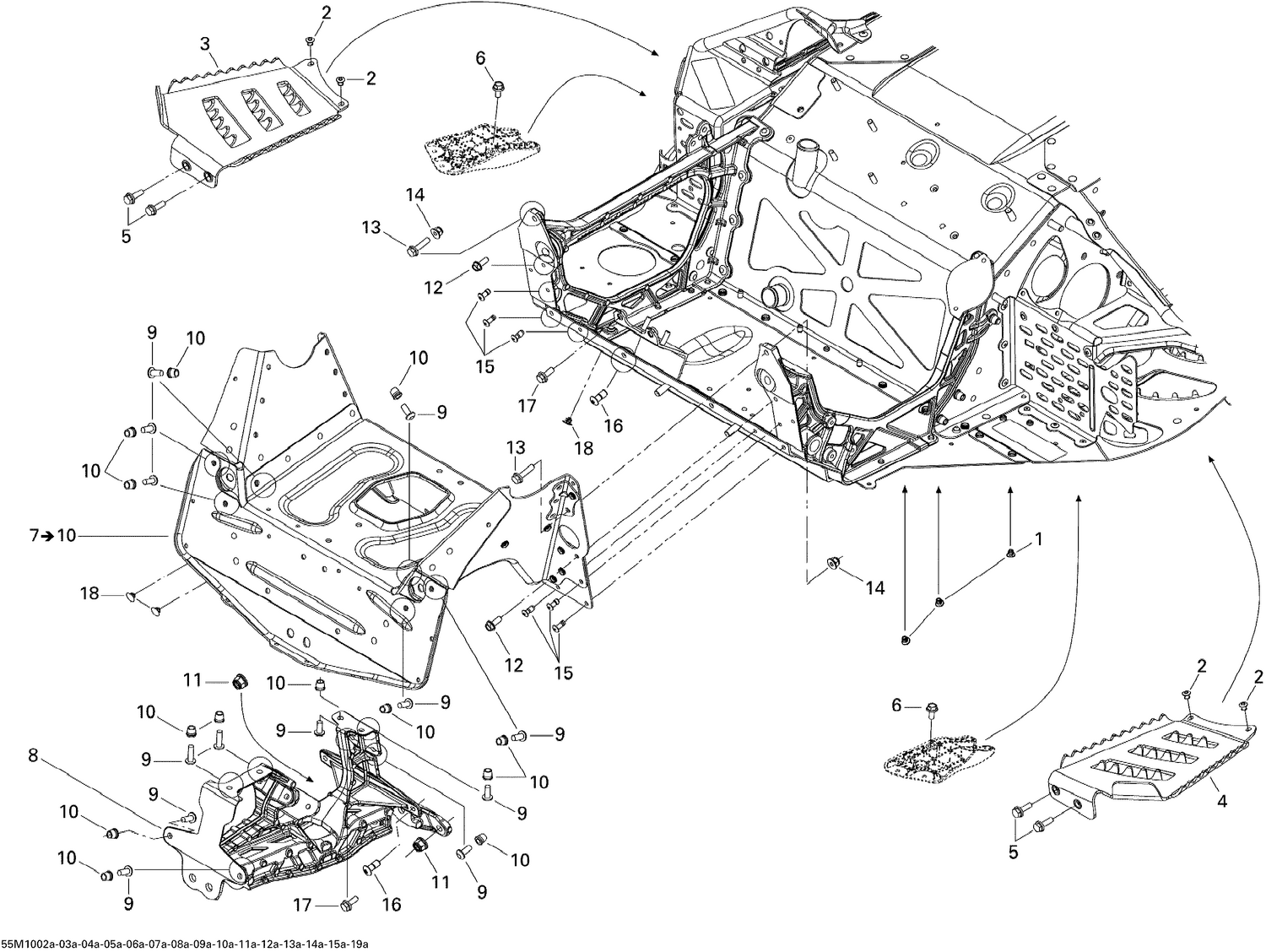

| Ref | Part Number | Description |
|---|
| 1 |
XXX |
Not Available As Spare Parts |
| 2 |
XXX |
Not Available As Spare Parts |
| 3 |
XXX |
Not Available As Spare Parts |
| 4 |
XXX |
Not Available As Spare Parts |
| 5 |
XXX |
Not Available As Spare Parts |
| 6 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 8 |
518327487 |
Front Suspension Support This part replaces 518325925. |
| 9 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 12 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 13 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 15 |
293150179 |
MONOBOLT RIVET 4.8 - Call your local BRP dealership This part replaces 293150175. |
| 16 |
293150182 |
Monobolt Rivet 6.4 |
| 17 |
207661644 |
Hex. Flange Screw M6 X 16 |
