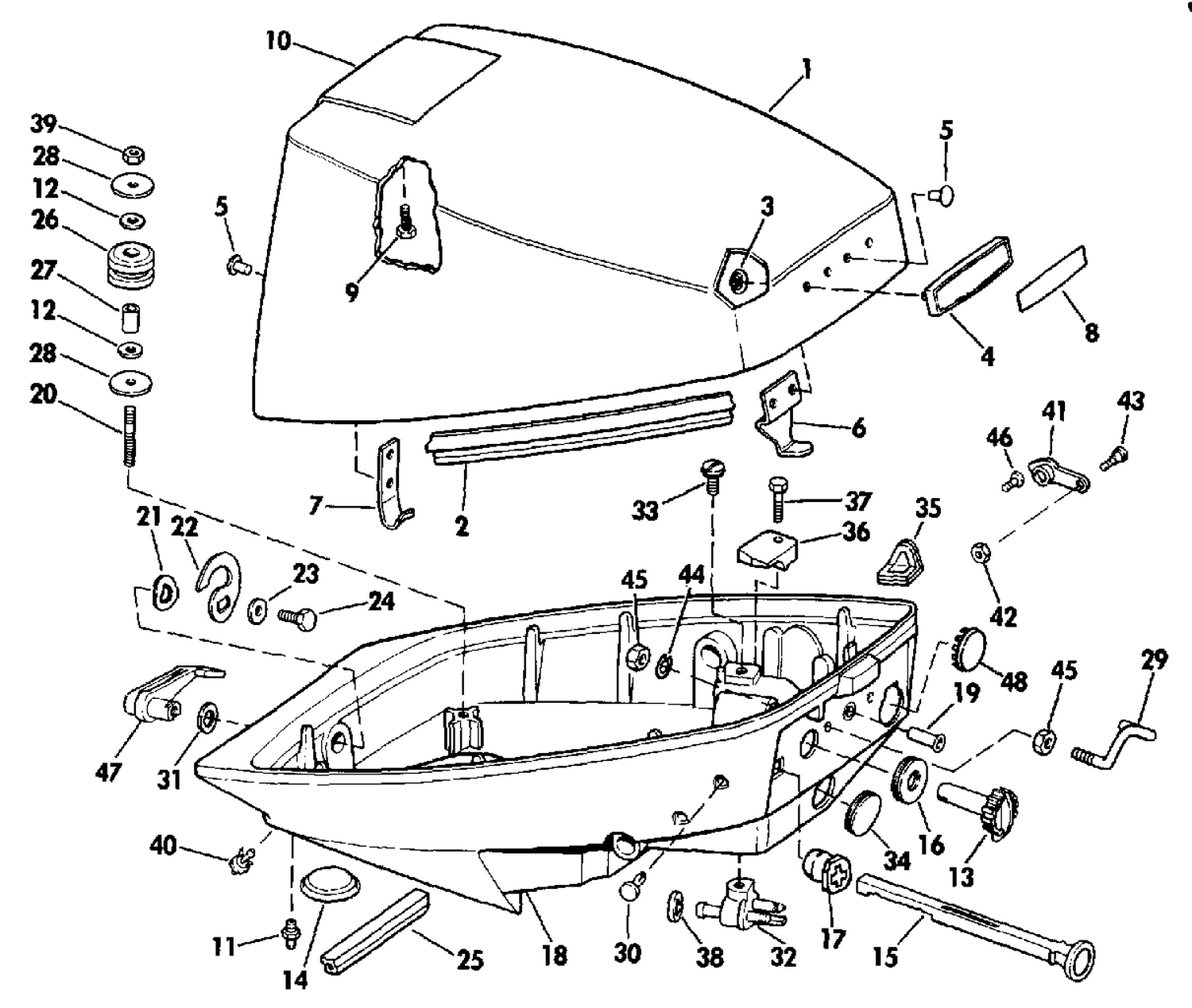

| Ref | Part Number | Description |
|---|
| 1 |
0395914 |
ENGINE COVER ASSEMBLY |
| 1 |
0395916 |
ENGINE COVER ASSEMBLY |
| 1 |
0395917 |
ENGINE COVER ASSEMBLY |
| 2 |
0331867 |
SEAL Engine cover This part replaces 0332823. |
| 4 |
0331907 |
APPLIQUE, Front |
| 5 |
0318836 |
RIVET |
| 6 |
0396886 |
HOOK, Front (Includes No. 5) |
| 7 |
0391124 |
HOOK, Rear |
| 8 |
0331197 |
PLATE, Applique |
| 8 |
0331201 |
PLATE, Applique |
| 10 |
0331134 |
TILT HANDLE |
| 13 |
0319152 |
ADJUSTING KNOB, Slow speed |
| 14 |
0327429 |
PLUG, Lower engine cover |
| 15 |
0319291 |
CHOKE KNOB |
| 16 |
0319131 |
GROMMET, Knob |
| 17 |
0320731 |
BUSHING, Choke knob |
| 18 |
0431871 |
ENGINE COVER, Lower This part replaces 0397684. |
| 18 |
0431873 |
ENGINE COVER, Lower This part replaces 0396034. |
| 20 |
0331044 |
STUD, Mount engine cover |
| 22 |
0319064 |
LATCH, Rear engine cover, lower |
| 24 |
0304027 |
VIS, arbre de commande de sens de marche |
| 25 |
0327428 |
SEAL, Engine cover to steering bracket |
| 26 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 27 |
0302406 |
SLEEVE |
| 29 |
0328305 |
ROPE GUIDE |
| 33 |
0328731 |
VIS, câble de verrouillage This part replaces 0329265. |
| 35 |
0331193 |
GROMMET, Cable |
| 36 |
0334093 |
RETAINER, Trunnion This part replaces 0331195. |
| 37 |
0319617 |
SCREW, Adaptor to motor |
| 40 |
0321885 |
NIPPLE |
| 48 |
0332606 |
PLUG, Engine cover |
| 0396005 |
0396005 |
OWNER'S MANUAL, Johnson |
| 0396006 |
0396006 |
OWNER'S MANUAL, Johnson |
| 0396330 |
0396330 |
DECAL SET |
| 0396332 |
0396332 |
DECAL SET |
