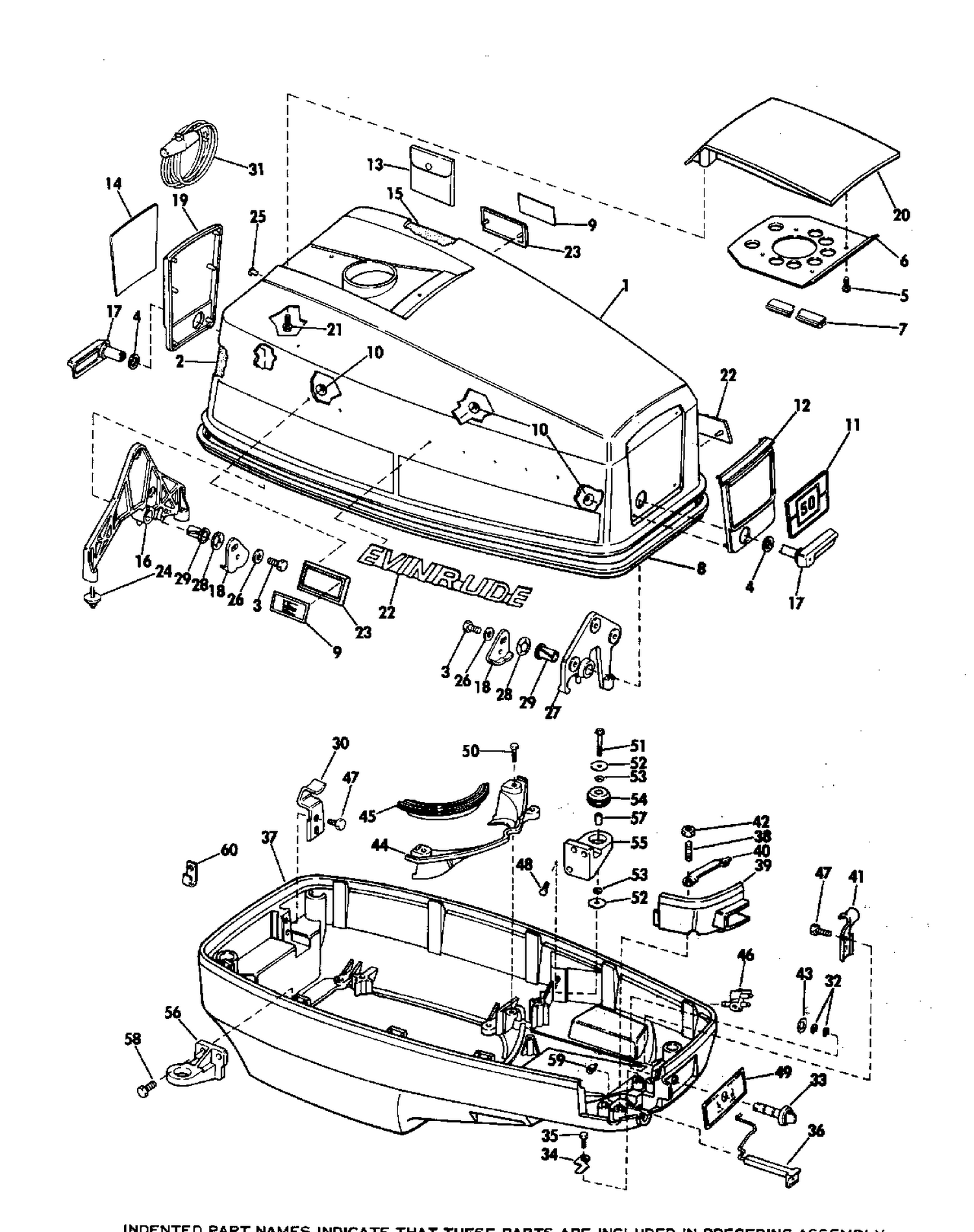

| Ref | Part Number | Description |
|---|
| 1 |
0279221 |
MOTOR COVER ASSY. |
| 3 |
0522062 |
SCREW, Hook |
| 5 |
0316195 |
SCREW |
| 6 |
0208200 |
BAFFLE , Tilt handle This part replaces 0206526. |
| 7 |
0206530 |
SEAL, Baffle |
| 8 |
0206523 |
SEAL, Motor cover upper |
| 9 |
0206664 |
PLATE, Applique |
| 11 |
0206598 |
PLATE, Applique front |
| 12 |
0206597 |
APPLIQUE, Front |
| 13 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 14 |
0206600 |
PLATE, Applique, rear |
| 16 |
0210509 |
LOCATING BRACKET, Rear This part replaces 0206529. |
| 17 |
0279222 |
HANDLE & SHAFT |
| 19 |
0206599 |
APPLIQUE, Cover, rear |
| 20 |
0206525 |
TILT HANDLE |
| 21 |
0324644 |
SCREW, Solecoid mounting This part replaces 0316194. |
| 22 |
0206596 |
APPLIQUE, "Evinrude" |
| 23 |
0206646 |
APPLIQUE, Port & stbd |
| 25 |
0314135 |
RIVER, Locating bracket |
| 27 |
0206527 |
LOCATING BRACKET, Front |
| 29 |
0553769 |
BUSHING |
| 30 |
0323474 |
HOOK, Cover to housing This part replaces 0316069. |
| 31 |
0378347 |
CORDE DE LANCEUR |
| 32 |
0315786 |
RETAINER, Knob |
| 33 |
0206536 |
ADJ. KNOB, Slow speed |
| 34 |
0316061 |
SPRING, Choke knob |
| 35 |
0313117 |
SCR,Clamp,eng cable |
| 36 |
0384223 |
CHOKE KNOB & ROD |
| 37 |
0384725 |
LOWER MOTER COVER |
| 39 |
0315683 |
CLAMP, Cable |
| 40 |
0316017 |
RETAINER, Cable |
| 41 |
0208252 |
HOOK, Front This part replaces 0206522. |
| 42 |
0316291 |
NUT |
| 43 |
0316403 |
SPRING WASHER |
| 44 |
0316062 |
FRAME, Front |
| 45 |
0316064 |
SEAL, Frame |
| 46 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 47 |
0306487 |
SCREW |
| 48 |
0313117 |
SCR,Clamp,eng cable |
| 49 |
0316191 |
PLATE, Control panel |
| 50 |
0312299 |
VIS, serre-câble |
| 51 |
0308995 |
SCREW, Front mount |
| 54 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 55 |
0316002 |
SUPPORT, Front port |
| 56 |
0316003 |
SUPPORT, Front stbd |
| 57 |
0302406 |
SLEEVE |
| 58 |
0551793 |
SCREW |
| 60 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 0279376 |
0279376 |
DECAL SET |
