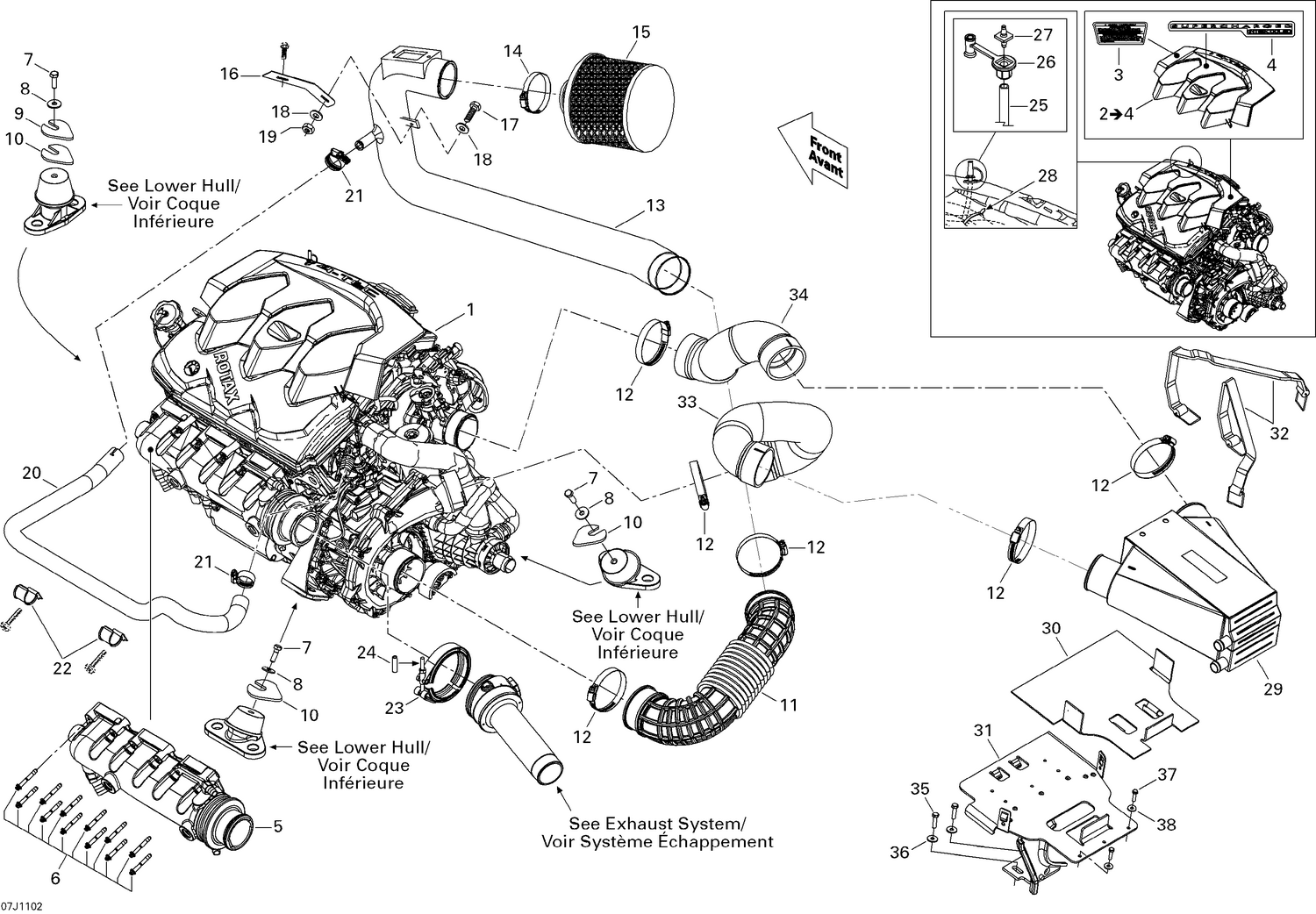

| Ref | Part Number | Description |
|---|
| 1 |
420150394 |
Engine Long Block This part replaces 420150355. |
| 3 |
219902674 |
WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership |
| 4 |
219902676 |
IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership |
| 5 |
296000422 |
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 274001434. |
| 6 |
420641198 |
Torx Flange Screw M6 X 45 |
| 7 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 8 |
234082600 |
Flat Washer 8 mm, Stainless |
| 9 |
270000025 |
SHIM 1.3 MM - Call your local BRP dealership |
| 10 |
270000024 |
SHIM 0.4 MM - Call your local BRP dealership |
| 11 |
273000188 |
INTAKE HOSE - Call your local BRP dealership |
| 12 |
293650179 |
Tridon Clamp |
| 13 |
204250437 |
AIR INTAKE TUBE - Call your local BRP dealership |
| 14 |
293650179 |
Tridon Clamp |
| 15 |
204250466 |
Air Filter This part replaces 204250436. |
| 16 |
204250404 |
BRACKET - Call your local BRP dealership |
| 17 |
207163060 |
Hex. Screw M6 X 30 |
| 18 |
211200055 |
Flat Washer, Stainless/Neoprene |
| 19 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 20 |
270000808 |
FORMED HOSE - Call your local BRP dealership |
| 21 |
293650051 |
Tridon Gear Clamp |
| 22 |
275500664 |
Retainer |
| 23 |
274001417 |
Exhaust Clamp |
| 24 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 25 |
270000469 |
HOSE 3 MM - Call your local BRP dealership |
| 26 |
293830120 |
GROMMET CAP - Call your local BRP dealership |
| 27 |
293710107 |
CONNECTOR - Call your local BRP dealership |
| 28 |
293750002 |
Tie Wrap 142 mm |
| 29 |
296000379 |
Intercooler |
| 30 |
293830124 |
RUBBER PAD - Call your local BRP dealership |
| 31 |
270000752 |
COOLER SUPPORT - Call your local BRP dealership |
| 32 |
293850093 |
Fuel Tank Strap |
| 33 |
204250474 |
Intercooler Hose Inlet |
| 34 |
204250442 |
INTERCOOLER HOSE, OUTLET - Call your local BRP dealership |
| 35 |
207162560 |
Hex. Screw M6 X 25 |
| 36 |
234062600 |
Flat Washer M6, Stainless |
| 37 |
207152060 |
Hex. Screw M5 X 20 |
