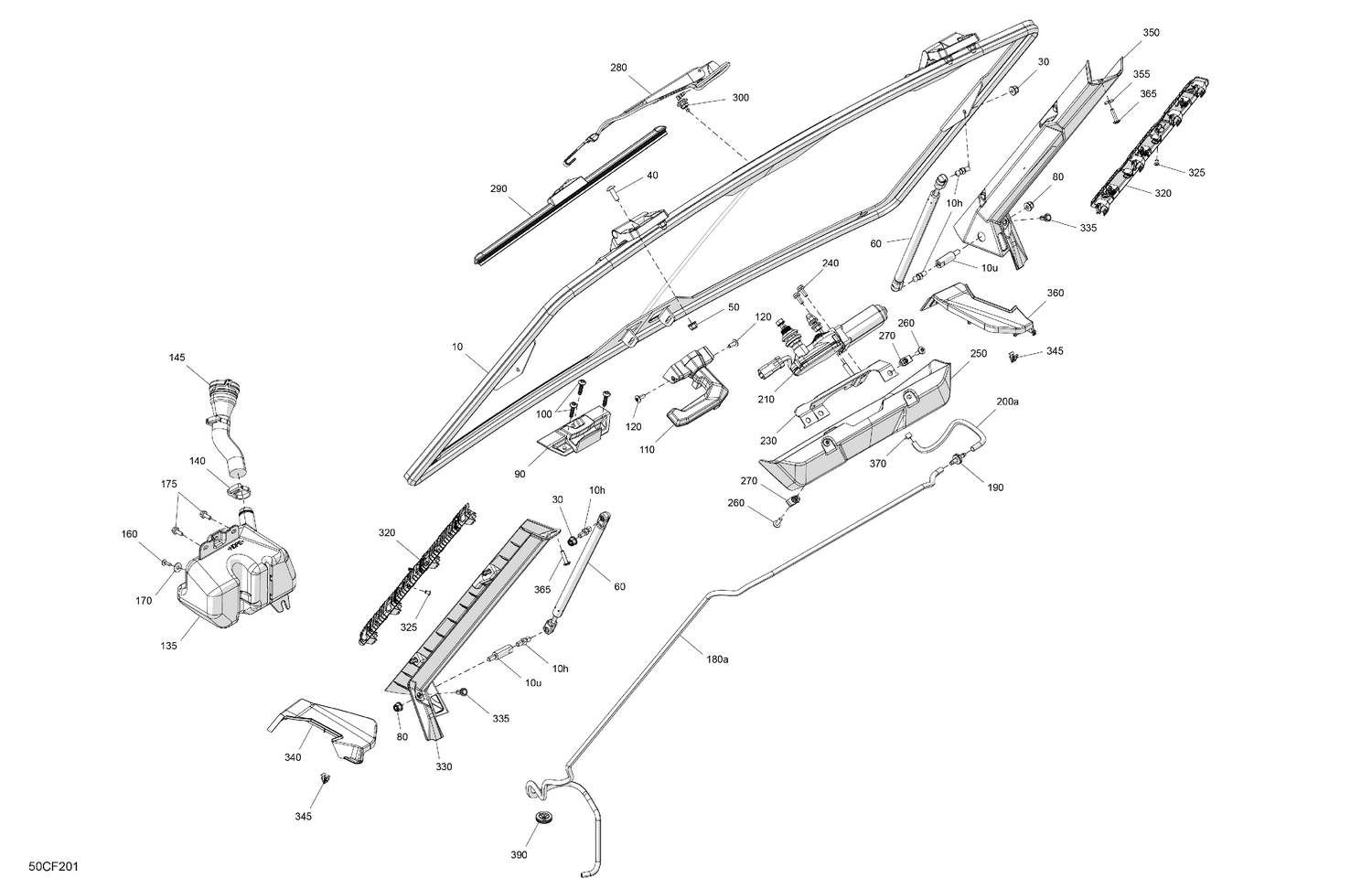

07- Body - Windshield
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10h | 705801756 | Ball Stud |
| 10u | 705801674 | Ball Stud Extension |
| 30 | 233281464 | Elastic Flange Nut M8 |
| 40 | 250000874 | Torx Truss M8 X 25 |
| 50 | 233281414 | Hex. Flange Elastic Nut M8 |
| 60 | 705801757 | Gas Strut |
| 80 | 233281414 | Hex. Flange Elastic Nut M8 |
| 90 | 705800008 | Handle Anchor |
| 100 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 110 | 703501255 | Windshield Handle Ass'y |
| 120 | 250000881 | Torx Truss M8 X 16 |
| 135 | 705801614 | Windshield Washer Tank Ass'y |
| 140 | 710008914 | Pawl Clamp |
| 145 | 705801612 | Filler Neck Ass'y |
| 160 | 250000720 | Torx Screw K50 X 16 |
| 170 | 234062670 | Stainless Steel Flat Washer |
| 175 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 180a | 219704389 | Polyurethane Hose 4000MM Long |
| 190 | 275500398 | Check Valve |
| 200a | 219704389 | Polyurethane Hose 4000MM Long |
| 210 | 705010657 | Wiper Motor |
| 230 | 705800073 | Cover Support Ass'y |
| 240 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 250 | 705802011 | Wiper Motor Trim |
| 260 | 250000722 | Torx Screw M6 X 20 |
| 270 | 250100198 | Panel Nut M6 X 1.0 |
| 280 | 705010656 | Wiper Arm |
| 290 | 705020218 | Windshield Wiper |
| 320 | 705801174 | Trim Support |
| 325 | 293150293 | Pop Rivet 3/16 X ,425 |
| 330 | 715011360 | LH Front Wiring Guide |
| 335 | 293150230 | Tuflok Plastic Rivet |
| 340 | 705801500 | LH Front Wiring Guide |
| 345 | 517306478 | Clip |
| 350 | 715011361 | RH Front Wiring Guide |
| 355 | 234062670 | Stainless Steel Flat Washer |
| 360 | 705801501 | RH Front Wiring Guide |
| 365 | 250000807 | Torx Truss Screw M6 X 25 |
| 370 | 414554800 | Spring Clamp |
