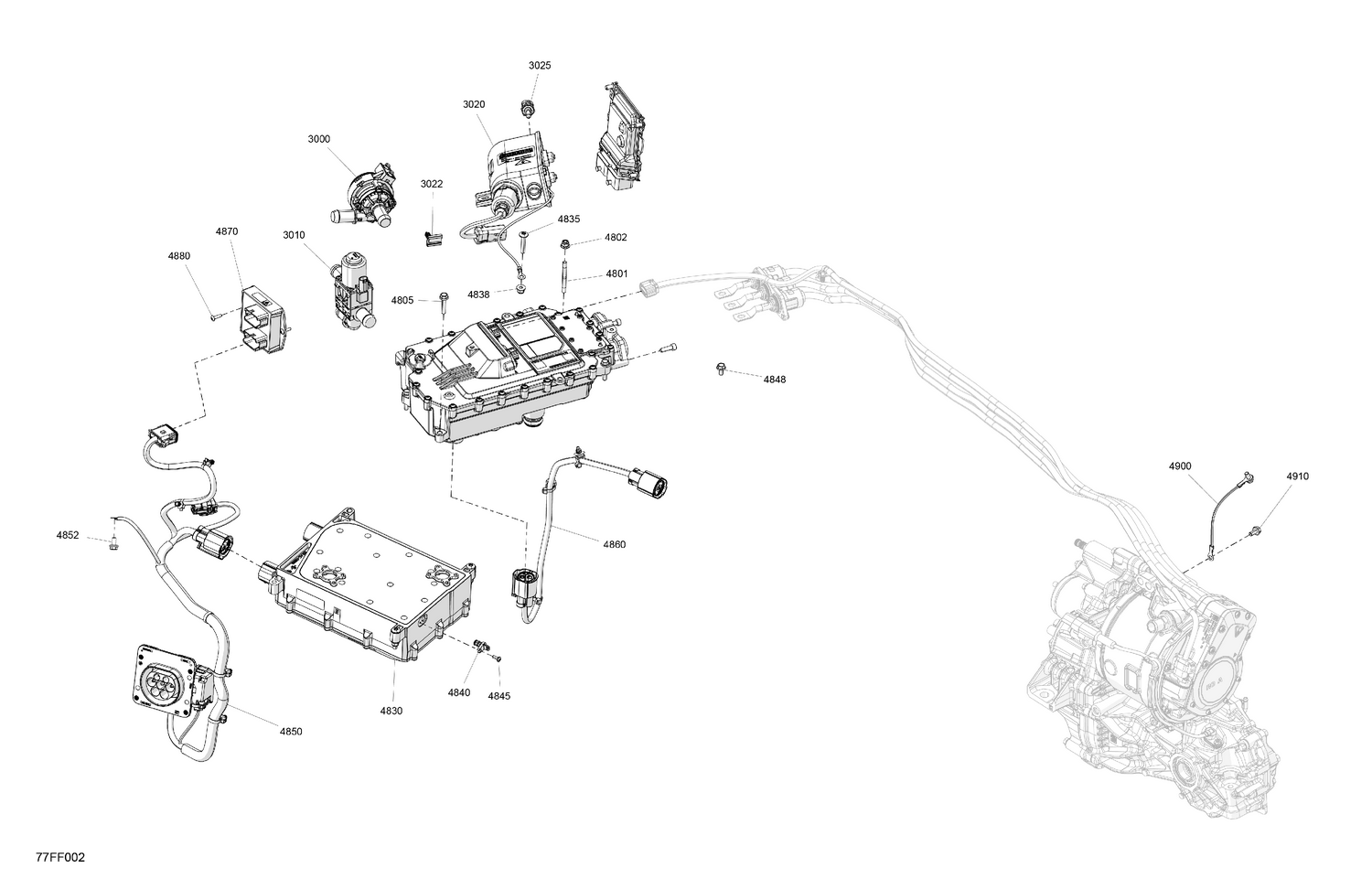

08- Electric - High Voltage
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 3000 | 709201048 | Cooling Pump |
| 3010 | 709201162 | Cooling Solenoid Valve |
| 3020 | 712000168 | Block Heater |
| 3022 | 293730118 | Fastener |
| 3025 | 278002895 | Temperature Sensor |
| 4801 | 509001410 | Threaded Rod |
| 4802 | 233161464 | Hex. Elastic Flange Nut M6 |
| 4805 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 4830 | 712000192 | Battery Charger 6.6 Kilowatt |
| 4835 | 250000541 | Torx Screw M6 X 35 |
| 4838 | 233261466 | Hex. Flange Elastic Nut M6 |
| 4840 | 293710201 | Plug Ass'y |
| 4845 | 250001298 | Torx Head Screw M4 X 10 |
| 4848 | 207661244 | Hex. Flange Screw M6 X 12 |
| 4850 | 712000081 | High Voltage Charging Port Cable (Eu) |
| 4852 | 207661244 | Hex. Flange Screw M6 X 12 |
| 4860 | 712000078 | High Voltage Charger Cable |
| 4870 | 712000162 | Heater Module |
| 4880 | 250000759 | Torx Truss Pt K40 X 16 |
| 4900 | 712000176 | Cable Ground |
