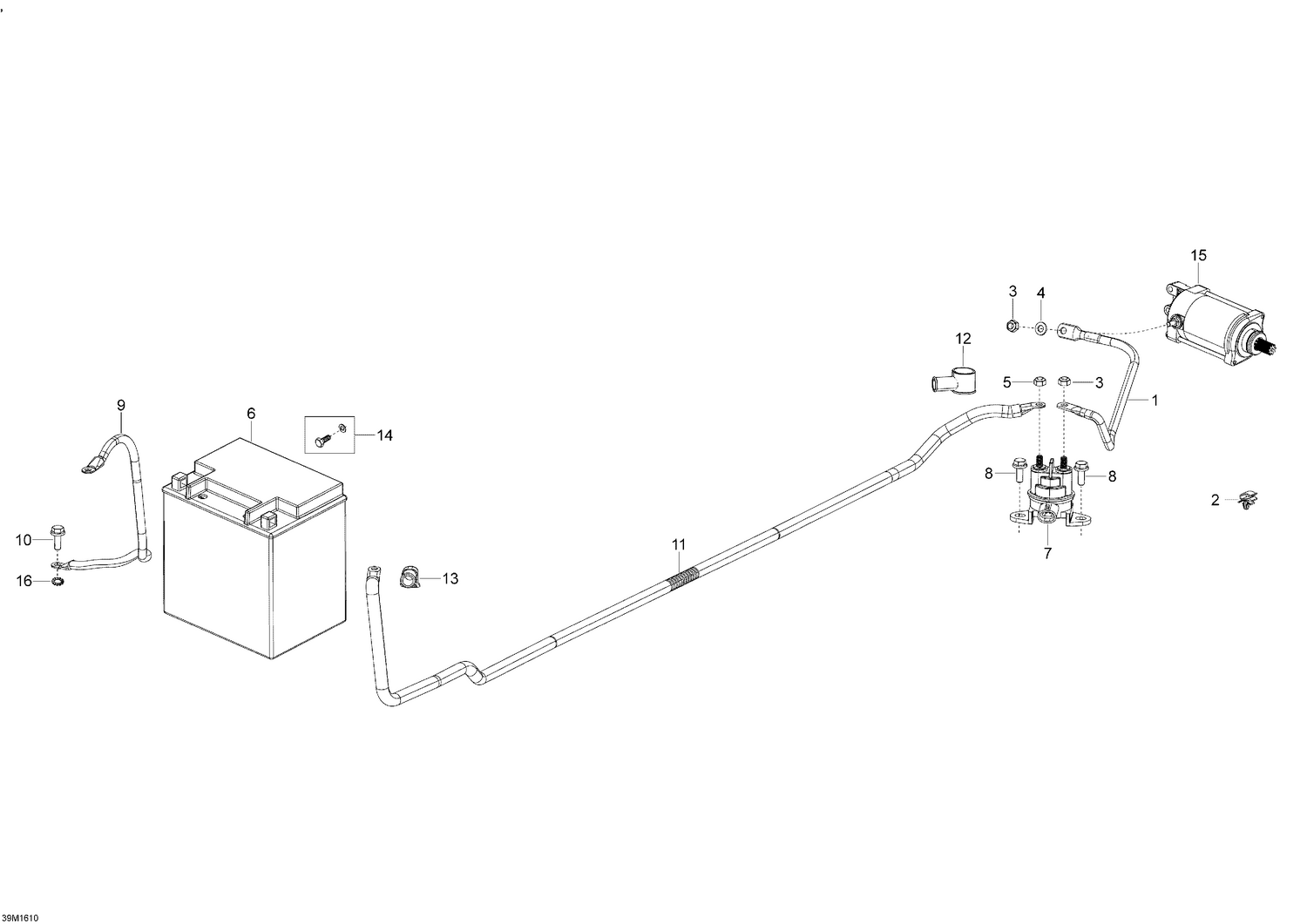

10- Battery And Electric Starter
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176806 | Start Cable |
| 2 | 515176795 | Tie Rap Mount (screwable) |
| 3 | 232561434 | Elastic Stop Nut M6 |
| 4 | 234061410 | Flat Washer 6 mm |
| 5 | 232561434 | Elastic Stop Nut M6 |
| 7 | 278003012 | Starter Relay |
| 8 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 9 | 515176780 | Ground Wire |
| 10 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 11 | 515176805 | BATTERY CABLE - Call your local BRP dealership |
| 12 | 570151000 | Protection Cap |
| 13 | 710000495 | Protector Cap |
| 14 | 250000282 | Battery Bolt Kit |
| 15 | 515178473 | Starter This part replaces 515177389. |
