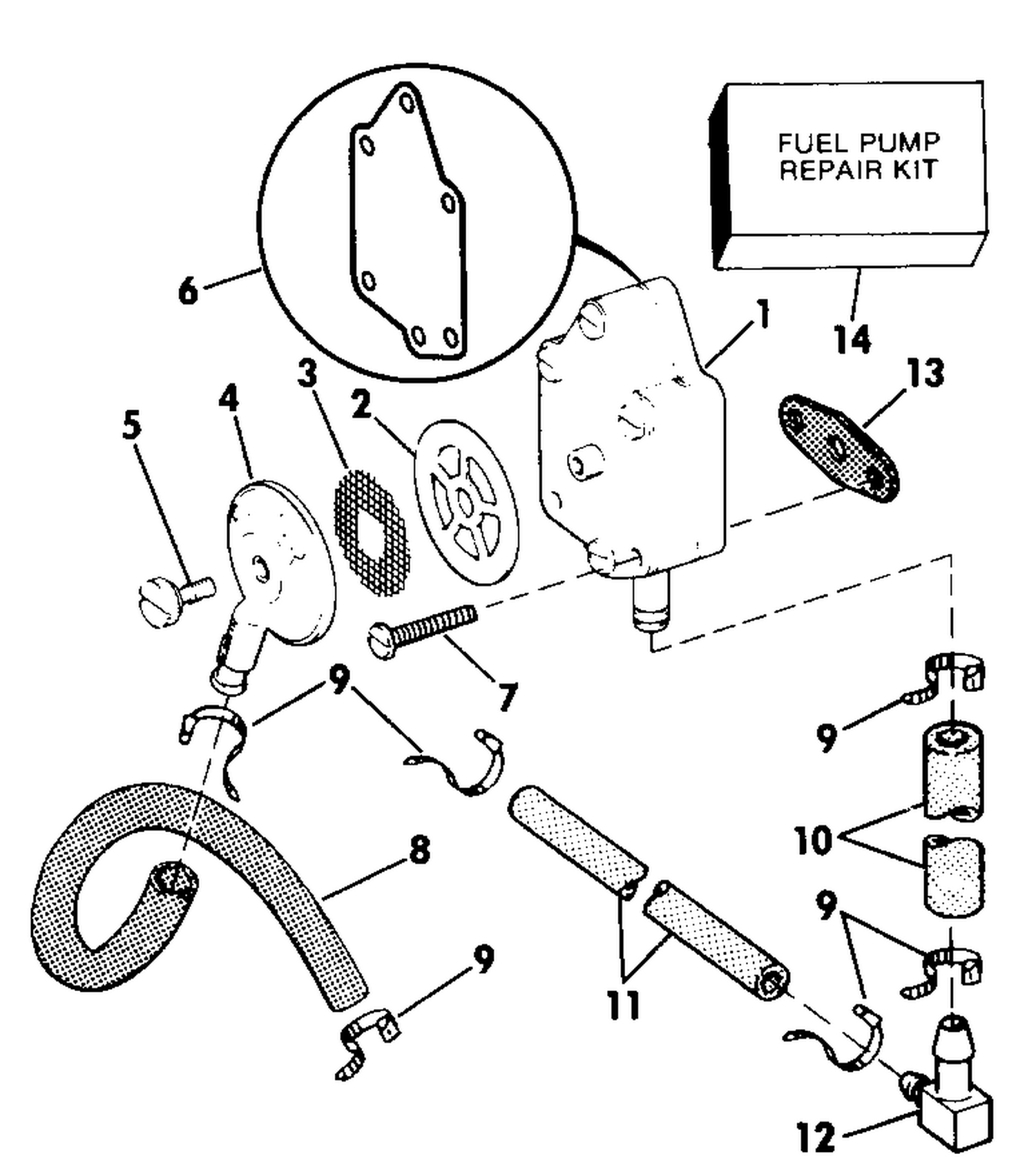

FUEL PUMP
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0438556 | FUEL PUMP ASSY. This part replaces 0395713. |
| 2 | 0338879 | GASKET, Cap to pump, upper This part replaces 0312679. |
| 4 | 0330092 | CAP Filter |
| 7 | 0328717 | NUT, Ground lead |
| 8 | HOSE, | Conn. to pump 470mm (18-1/2") long |
| 9 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10 | HOSE, | Pump to elbow 38mm (1-1/2") long |
| 11 | HOSE, | Elbow to carb, 712mm (28") long |
| 12 | 0327729 | ELBOW, Fuel hose |
| 13 | 0303615 | GASKET |
