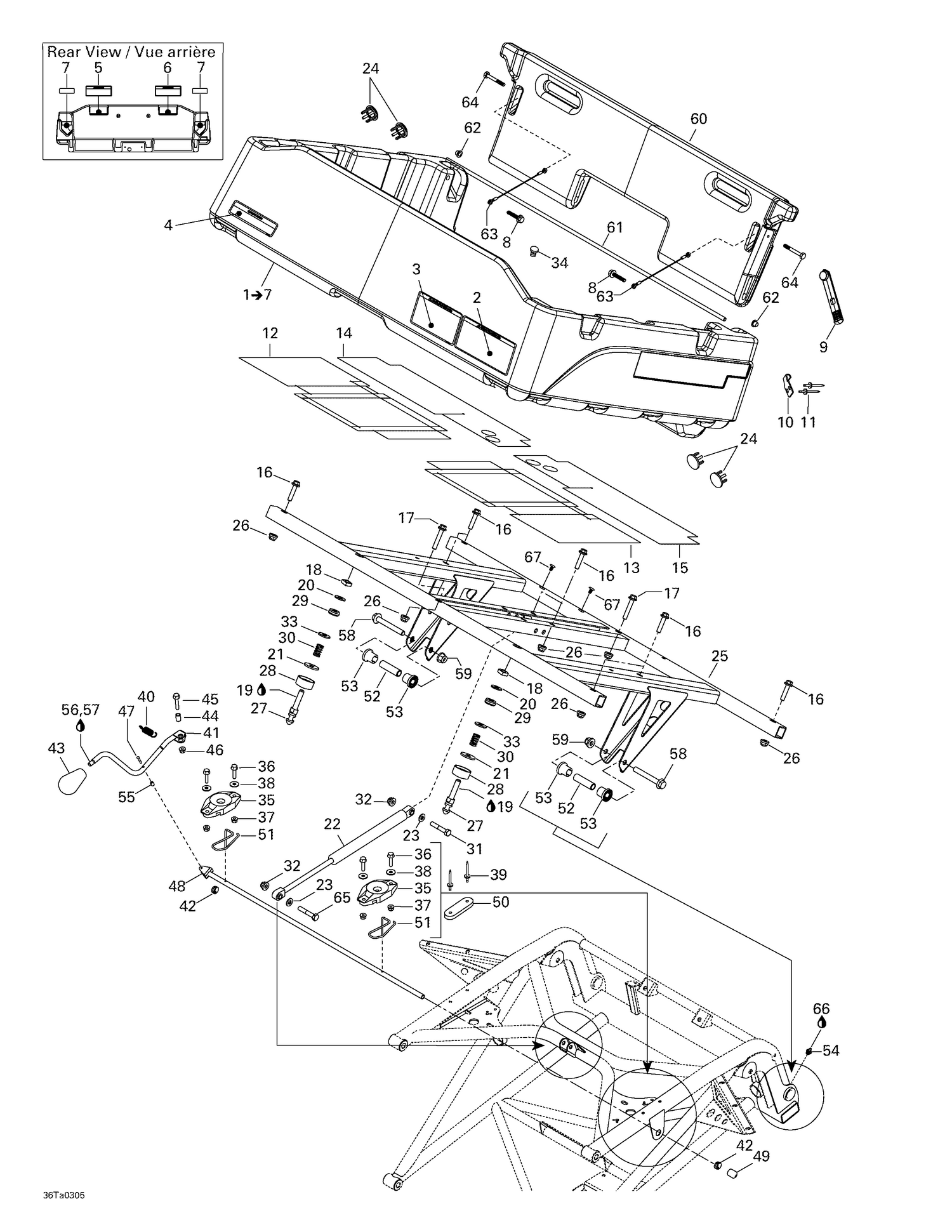

| Ref | Part Number | Description |
|---|
| 2 |
704900132 |
Warning Label (English) |
| 3 |
704900373 |
Warning Label (English) |
| 4 |
704900134 |
Warning Label (English) |
| 5 |
704900137 |
Warning Label (English) |
| 6 |
704900138 |
Warning Label (English) |
| 7 |
704900128 |
REAR REFLECTOR - Call your local BRP dealership |
| 8 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 9 |
705000297 |
Panel Bracket |
| 10 |
291000166 |
LATCH SUPPORT - Call your local BRP dealership |
| 11 |
293150023 |
RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 12 |
705000313 |
RH Heat Shield |
| 13 |
705000318 |
LH Heat Shield |
| 14 |
705000316 |
RH Heat Shield |
| 15 |
705000319 |
LH Heat Shield |
| 16 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 17 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 18 |
232802412 |
Square Nut M10 |
| 19 |
293800060 |
Loctite 243, 10 ml |
| 20 |
503175800 |
Washer |
| 21 |
506148100 |
WASHER - Call your local BRP dealership |
| 22 |
705000261 |
Gas Shock |
| 23 |
234081410 |
Flat Washer 8 mm |
| 24 |
293000096 |
PROTECTOR CAP - Call your local BRP dealership |
| 25 |
705000604 |
Box Support |
| 26 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 27 |
291000664 |
Stud Latch |
| 28 |
293830025 |
Rubber Pad |
| 29 |
211100009 |
RUBBER WASHER - Call your local BRP dealership |
| 30 |
705000307 |
Spring |
| 31 |
230080044 |
SCREW-HEX. M8 X 100 - Call your local BRP dealership |
| 32 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 33 |
250200014 |
Flat Washer M10 |
| 34 |
705000323 |
Cap |
| 35 |
708000034 |
Latch Base |
| 36 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 37 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 38 |
234062600 |
Flat Washer M6, Stainless |
| 39 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 40 |
705600098 |
BREAK PEDAL SPRING - Call your local BRP dealership |
| 41 |
705000253 |
Lever, black |
| 42 |
705000292 |
SLEEVE - Call your local BRP dealership |
| 43 |
705500022 |
LEVER BUTTON - Call your local BRP dealership |
| 44 |
293900078 |
Sleeve This part replaces 708000084. |
| 45 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 46 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 47 |
293150084 |
ROUND HEAD RIVET - Call your local BRP dealership |
| 48 |
705000289 |
CENTRAL TUBE, BLACK - Call your local BRP dealership |
| 49 |
705000300 |
CAP - Call your local BRP dealership |
| 50 |
705000299 |
Rubber Support |
| 51 |
705000259 |
SPRING - Call your local BRP dealership |
| 52 |
706200061 |
Internal Bushing |
| 53 |
706200063 |
Cushion |
| 54 |
408200700 |
Grease Fitting |
| 55 |
705000305 |
RING HOLDER - Call your local BRP dealership |
| 56 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 57 |
293800060 |
Loctite 243, 10 ml |
| 58 |
207607046 |
Hex. Flange Screw M10 X 70 |
| 59 |
233001414 |
Hex. Flange Nut M10 |
| 60 |
705000220 |
Panel |
| 61 |
705000294 |
Pivot Tube, black |
| 62 |
250100026 |
Pushnut Cap Type 3/8 |
| 63 |
705000296 |
PANEL CABLE - Call your local BRP dealership |
| 64 |
243164540 |
HEX. PLASTITE SCREW M6.81 X 45 - Call your local BRP dealership |
| 65 |
207084544 |
Hex. Screw M8 X 45 |
| 66 |
293550010 |
Synthetic Grease, 400 G |
