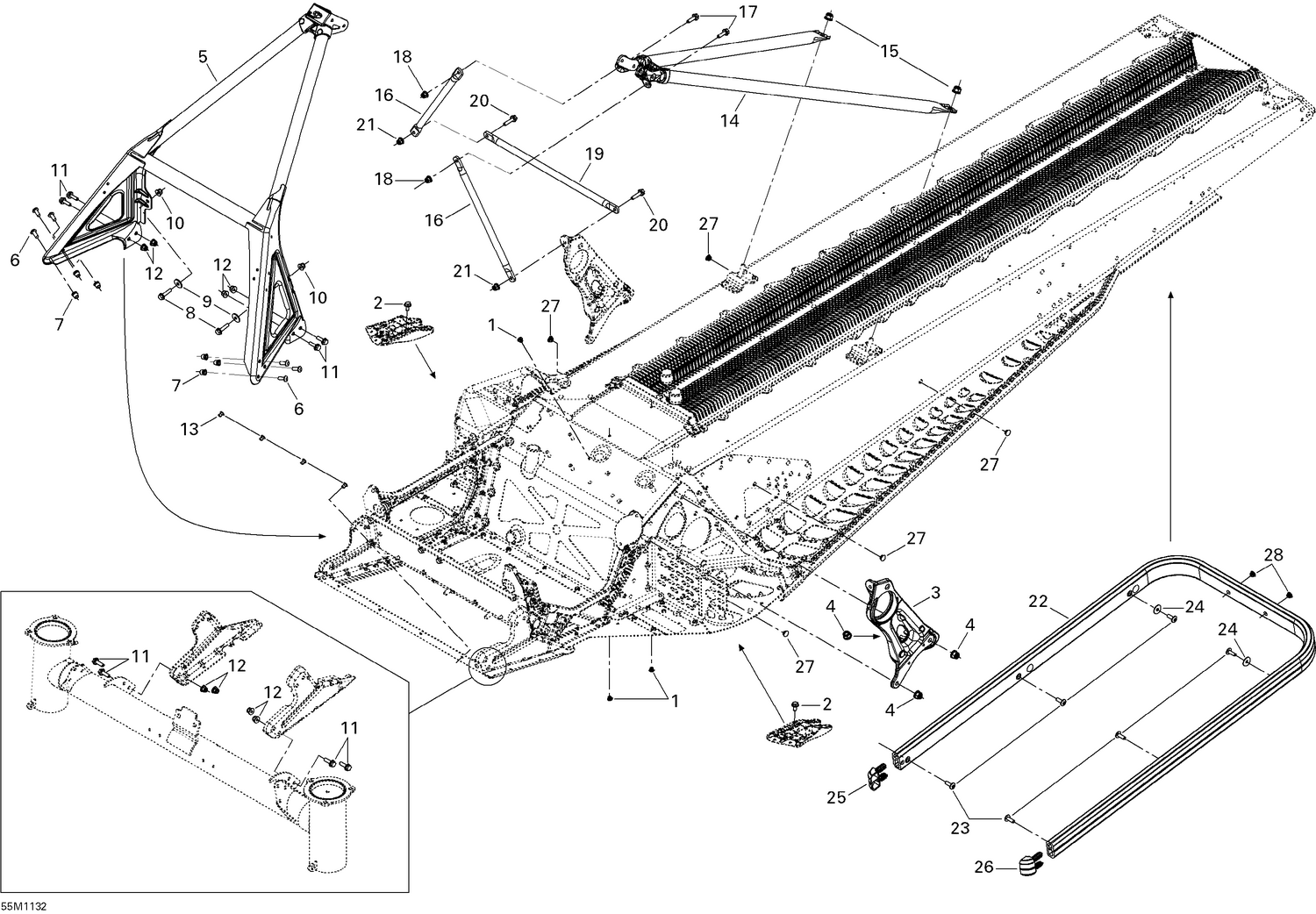

09- Frame and Components
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 390402400 | Pop Rivet 3/16" |
| 2 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 3 | 518327460 | Driven Pulley Support This part replaces 518326192. |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 518326558 | Front Member, S Module |
| 6 | 207662044 | Hex. Flange Screw M6 X 20 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 207662544 | Hex. Flange Screw M6 X 25 |
| 9 | 224061201 | Flat Washer |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 207662044 | Hex. Flange Screw M6 X 20 |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 390402200 | Pop Rivet 3/16" |
| 14 | 518326559 | Rear Member |
| 15 | 233281414 | Hex. Flange Elastic Nut M8 |
| 16 | 518325114 | Upper Lateral Column Support |
| 17 | 207662044 | Hex. Flange Screw M6 X 20 |
| 18 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 19 | 518325115 | Center Column Support |
| 20 | 207662544 | Hex. Flange Screw M6 X 25 |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 22 | 518326611 | Black Rear Bumper, 154" |
| 23 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 24 | 224061201 | Flat Washer |
| 25 | 520000965 | Black RH Cap |
| 26 | 520000964 | Black LH Cap |
| 27 | 293730047 | Black, Dart 8 mm |
