| Ref | Part Number | Description |
|---|
| ABS_L |
710001159 |
Wire Seal |
| ABS_L |
710002775 |
Terminal |
| ABS_M |
278000999 |
Wire Seal |
| ABS_M |
710000836 |
Female Terminal |
| ABS_S |
710001258 |
Plug |
| ABS_S |
710002768 |
Housing |
| ABS_S |
710002772 |
RH Connector Cover |
| ABS_S |
710002773 |
Terminal |
| ABS_S |
710006230 |
Wire Seal |
| ABS_SW |
710002000 |
Housing |
| ABS_SW |
710003047 |
Terminal |
| ABS_SW |
710005491 |
Female Terminal |
| B |
710001588 |
Female Terminal Housing, 48 Circuits |
| B |
710001589 |
Female Terminal |
| B |
710001591 |
Cover, 48 positions |
| B |
710001592 |
Plug |
| B |
710001593 |
Plug |
| B |
710001727 |
Female Terminal |
| B |
710001728 |
Terminal |
| BFS1 |
515177192 |
Female Housing, 2 Circuits |
| BFS1 |
710001152 |
Lock |
| BFS1 |
710001163 |
Wire Seal |
| BFS1 |
710001164 |
Female Terminal |
| BFS2 |
515177192 |
Female Housing, 2 Circuits |
| BFS2 |
710001152 |
Lock |
| BFS2 |
710001163 |
Wire Seal |
| BFS2 |
710001164 |
Female Terminal |
| BN1 |
710000913 |
Terminal |
| BN3 |
710006801 |
Open Barell |
| BP1 |
278000992 |
Open Barrel |
| BP2 |
710007033 |
Cap Battery Cable |
| BRK |
409209400 |
Male Terminal Housing, 2 Circuits |
| BRK |
515176164 |
Male Terminal |
| BRK |
515176621 |
Wire Seal |
| CC |
409209700 |
Female Housing, 4 Circuits |
| CC |
515176621 |
Wire Seal |
| CC |
710001340 |
Female Terminal |
| CL |
278002858 |
Female Housing 20 Circuits |
| CL |
278002860 |
Sealing Cap |
| CL |
515178018 |
Female Terminal |
| CL |
515178349 |
Female Terminal 22 AWG |
| CL_KEYPAD |
710001161 |
Housing |
| CL_KEYPAD |
710001162 |
Lock |
| CL_KEYPAD |
710001163 |
Wire Seal |
| CL_KEYPAD |
710001164 |
Female Terminal |
| C_AC_W0 |
278000230 |
Male Terminal |
| C_AC_W0 |
278001008 |
Insulated Sheath |
| C_AC_W1 |
278000230 |
Male Terminal |
| C_AC_W1 |
278001008 |
Insulated Sheath |
| C_AC_W11 |
278000230 |
Male Terminal |
| C_AC_W11 |
278001008 |
Insulated Sheath |
| C_AC_W2 |
278000230 |
Male Terminal |
| C_AC_W2 |
278001008 |
Insulated Sheath |
| C_AC_W3 |
278000230 |
Male Terminal |
| C_AC_W3 |
278001008 |
Insulated Sheath |
| C_AC_W4 |
278000230 |
Male Terminal |
| C_AC_W4 |
278001008 |
Insulated Sheath |
| C_AC_W5 |
278000230 |
Male Terminal |
| C_AC_W5 |
278001008 |
Insulated Sheath |
| C_AC_W6 |
278000230 |
Male Terminal |
| C_AC_W6 |
278001008 |
Insulated Sheath |
| C_AC_W7 |
278000230 |
Male Terminal |
| C_AC_W7 |
278001008 |
Insulated Sheath |
| C_AC_W8 |
278000230 |
Male Terminal |
| C_AC_W8 |
278001008 |
Insulated Sheath |
| C_AC_W9 |
278000230 |
Male Terminal |
| C_AC_W9 |
278001008 |
Insulated Sheath |
| D2 |
409012700 |
Diode |
| DC1 |
710005373 |
Housing |
| DC1 |
710005518 |
Terminal |
| DC2_1 |
409010300 |
Female Terminal |
| DC2_2 |
409010300 |
Female Terminal |
| DC3 |
515175231 |
Female Terminal |
| DC3 |
515175658 |
Female Housing, 2 Circuits |
| DC3_CAP |
710000667 |
Male Housing, 2 Circuits |
| DESS |
710001161 |
Housing |
| DESS |
710001162 |
Lock |
| DESS |
710001163 |
Wire Seal |
| DESS |
710001164 |
Female Terminal |
| DESS |
710001225 |
Cap |
| DIFF |
710002000 |
Housing |
| DIFF |
710003047 |
Terminal |
| DIFF |
710005491 |
Female Terminal |
| DLC |
710002705 |
Lock |
| DLC |
710002706 |
Female Housing 6 Circuits |
| DLC |
710005437 |
Plug |
| DLC |
710005438 |
Female Terminal |
| DLC |
710005439 |
Female Terminal |
| DPS |
278002186 |
Wire Seal |
| DPS |
278002187 |
Female Terminal |
| DPS |
710001222 |
Lock |
| DPS |
710001873 |
Terminal |
| DPS |
710002075 |
Plug |
| DPS |
710003153 |
Seal |
| DPS |
710004989 |
Female Housing |
| DPS |
710005098 |
Lock |
| FL_F |
409012100 |
Female Terminal |
| FL_F |
710000402 |
Wire Seal |
| FR_F |
409012100 |
Female Terminal |
| FR_F |
710000402 |
Wire Seal |
| FT |
278000217 |
Female Housing, 2 Circuits |
| FT |
278000218 |
Wire Seal |
| FT |
409004300 |
Male Terminal |
| FT |
710000992 |
Clip |
| F_AC_W0 |
278001007 |
Insulated Sheath |
| F_AC_W0 |
278001009 |
Female Terminal |
| F_AC_W1 |
278001007 |
Insulated Sheath |
| F_AC_W1 |
278001009 |
Female Terminal |
| F_AC_W2 |
278001007 |
Insulated Sheath |
| F_AC_W2 |
278001009 |
Female Terminal |
| F_AC_W3 |
278001007 |
Insulated Sheath |
| F_AC_W3 |
278001009 |
Female Terminal |
| HIC |
710001222 |
Lock |
| HIC |
710001225 |
Cap |
| HIC |
710001228 |
Terminal |
| HIC |
710001229 |
Terminal |
| HIC |
710001233 |
Seal |
| HIC |
710001332 |
Seal Wire |
| HIC |
710001930 |
Female Housing, 12 Circuits |
| HIC |
710006333 |
Lock |
| HIC9_F |
710001222 |
Lock |
| HIC9_F |
710001225 |
Cap |
| HIC9_F |
710001228 |
Terminal |
| HIC9_F |
710001229 |
Terminal |
| HIC9_F |
710001233 |
Seal |
| HIC9_F |
710001332 |
Seal Wire |
| HIC9_F |
710001930 |
Female Housing, 12 Circuits |
| HIC9_F |
710006333 |
Lock |
| HZ_SW |
710002000 |
Housing |
| HZ_SW |
710003047 |
Terminal |
| HZ_SW |
710005491 |
Female Terminal |
| KX1 |
409010700 |
Female Terminal |
| KX2 |
409010700 |
Female Terminal |
| MC1_1 |
710002315 |
Terminal |
| MC1_1 |
710004047 |
Female Housing |
| MC1_2 |
710002315 |
Terminal |
| MC1_2 |
710004048 |
Female Housing |
| MC2_1 |
710002315 |
Terminal |
| MC2_1 |
710004047 |
Female Housing |
| MC2_2 |
710002315 |
Terminal |
| MC2_2 |
710004048 |
Female Housing |
| MFS_B |
409012100 |
Female Terminal |
| MFS_B |
710000080 |
Cap |
| MFS_B |
710000081 |
Female Housing, 6 Circuits |
| MFS_B |
710000402 |
Wire Seal |
| MFS_W |
409012100 |
Female Terminal |
| MFS_W |
409012300 |
Seal |
| MFS_W |
710000080 |
Cap |
| MFS_W |
710000081 |
Female Housing, 6 Circuits |
| MFS_W |
710000402 |
Wire Seal |
| OP_PRES |
278002378 |
Male Housing |
| OP_PRES |
409207600 |
Male Lock, 3 Circuits |
| OP_PRES |
710001348 |
Male Terminal |
| OP_PRES |
710005273 |
Clip |
| PF1 |
278000216 |
Wire Seal |
| PF1 |
278000218 |
Wire Seal |
| PF1 |
278001065 |
Wire Seal |
| PF1 |
278002578 |
Female Terminal |
| PF1 |
278003448 |
Fuse Base Ass'y |
| PF1 |
278003553 |
Fuse Cover |
| PF1 |
293300198 |
Seal |
| PF1 |
515177177 |
Female Terminal |
| PF1 |
710000048 |
Wire Seal |
| PF1 |
710000918 |
Female Terminal |
| PF1_T_LABEL |
710008096 |
Fuse Box Decal |
| PF2 |
278000216 |
Wire Seal |
| PF2 |
278000218 |
Wire Seal |
| PF2 |
278001065 |
Wire Seal |
| PF2 |
278002578 |
Female Terminal |
| PF2 |
278003448 |
Fuse Base Ass'y |
| PF2 |
278003553 |
Fuse Cover |
| PF2 |
293300198 |
Seal |
| PF2 |
710000890 |
Female Terminal |
| PF2 |
710000918 |
Female Terminal |
| PF2_LABEL |
710008085 |
Fuse Box Decal |
| PF2_SP1 |
710000744 |
Little Fuse, 10 Amperes |
| PF2_SP2 |
710000744 |
Little Fuse, 10 Amperes |
| PF2_SP3 |
710000744 |
Little Fuse, 10 Amperes |
| PF3 |
278001325 |
Fuse Holder |
| PF3 |
710000113 |
Female Terminal |
| PF4 |
278001325 |
Fuse Holder |
| PF4 |
710000113 |
Female Terminal |
| PL_L |
278000220 |
Male Connector, 2 Circuits |
| PL_L |
278000223 |
Female Terminal |
| PL_L |
278001065 |
Wire Seal |
| PL_R |
278000220 |
Male Connector, 2 Circuits |
| PL_R |
278000223 |
Female Terminal |
| PL_R |
278001065 |
Wire Seal |
| PPS |
515177151 |
Housing |
| PPS |
710001229 |
Terminal |
| PPS |
710001233 |
Seal |
| PPS |
710005296 |
Lock 6 Positions |
| P_ACC |
710006749 |
Folded Terminal Eyelet |
| R_AC_W10 |
278001007 |
Insulated Sheath |
| R_AC_W10 |
278001009 |
Female Terminal |
| R_AC_W11 |
278001007 |
Insulated Sheath |
| R_AC_W11 |
278001009 |
Female Terminal |
| R_AC_W4 |
278001007 |
Insulated Sheath |
| R_AC_W4 |
278001009 |
Female Terminal |
| R_AC_W5 |
278001007 |
Insulated Sheath |
| R_AC_W5 |
278001009 |
Female Terminal |
| R_AC_W6 |
278001007 |
Insulated Sheath |
| R_AC_W6 |
278001009 |
Female Terminal |
| R_AC_W7 |
278001007 |
Insulated Sheath |
| R_AC_W7 |
278001009 |
Female Terminal |
| R_AC_W8 |
278001007 |
Insulated Sheath |
| R_AC_W8 |
278001009 |
Female Terminal |
| R_AC_W9 |
278001007 |
Insulated Sheath |
| R_AC_W9 |
278001009 |
Female Terminal |
| SB |
278001482 |
Seal |
| SB |
710001134 |
Female Terminal |
| SB |
710002043 |
Lock |
| SB |
710002177 |
Housing |
| SS |
515177192 |
Female Housing, 2 Circuits |
| SS |
710001152 |
Lock |
| SS |
710001153 |
Seal Wire |
| SS |
710001164 |
Female Terminal |
| TRL_M_10P |
710001224 |
Terminal |
| TRL_M_10P |
710001233 |
Seal |
| TRL_M_10P |
710001952 |
Housing |
| TRL_M_10P |
710006361 |
Lock |
| WSS_FL |
515178348 |
Female Terminal 18-20 AWG |
| WSS_FL |
710005669 |
Connector 2 Pins |
| WSS_FL |
710005689 |
Seal |
| WSS_FR |
515178348 |
Female Terminal 18-20 AWG |
| WSS_FR |
710005669 |
Connector 2 Pins |
| WSS_FR |
710005689 |
Seal |
| WSS_REAR_M |
515177201 |
Housing |
| WSS_REAR_M |
710001224 |
Terminal |
| WSS_REAR_M |
710001233 |
Seal |
| WSS_REAR_M |
710006398 |
Lock |
| YAW |
710003730 |
Housing |
| YAW |
710006230 |
Wire Seal |

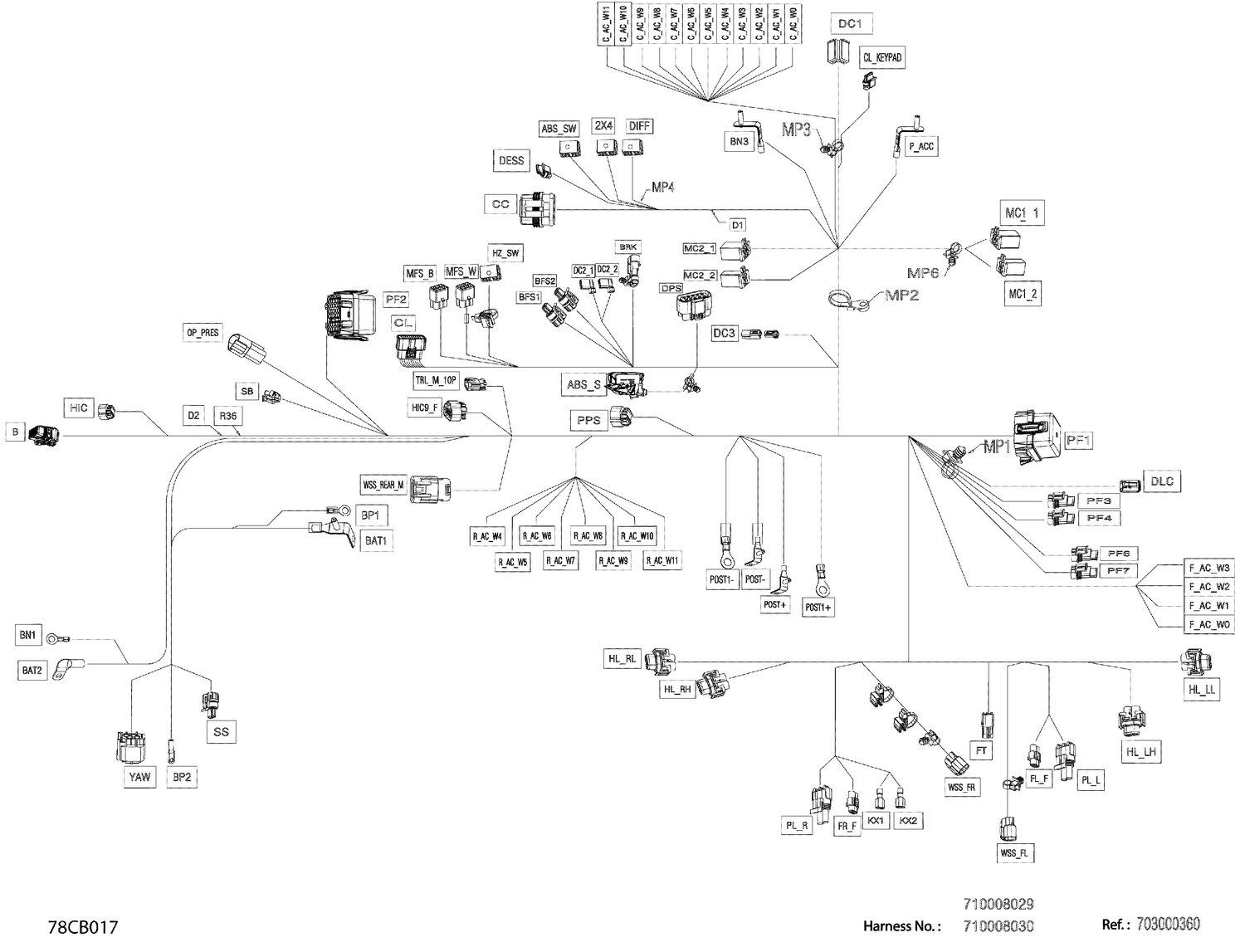

| 300 |
710008030 |
Main Wiring Harness |
