| Ref | Part Number | Description |
|---|
| AMP |
ON |
AUDIO 278001007 Insulated Sheath 278001007 |
| AMP |
SPK |
M 515178907 Molex Male Connector 8 Cavities 515178907 |
| AUDIO |
OUT |
AMP SPK 710007945 Female Connector 8 Cavities 710007945 |
| AUDIO |
SUB |
M 515178020 2 Circuits Male Housing 515178020 |
| AUDIO |
SUB1 |
F 515175670 Female Terminal Housing, 2 Circuits 515175670 |
| AUDIO |
SUB2 |
CAP 515175665 Male Terminal Housing, 2 Circuits 515175665 |
| BN1 |
278001392 |
Open Barrel Terminal |
| BP1 |
278001392 |
Open Barrel Terminal |
| BP2 |
710007033 |
Cap Battery Cable |
| CL |
278002860 |
Sealing Cap |
| CL |
515178349 |
Female Terminal 22 AWG |
| CL |
515179227 |
Female Molex Connector 20 Cavities |
| CONSOLE |
IC |
F 710001226 Housing 710001226 |
| D2 |
409012700 |
Diode |
| D4 |
409012700 |
Diode |
| D5 |
409012700 |
Diode |
| DC1 |
710005373 |
Housing |
| DC1 |
710005518 |
Terminal |
| DC3 |
515175231 |
Female Terminal |
| DC3 |
515175658 |
Female Housing, 2 Circuits |
| DC3F |
515175231 |
Female Terminal |
| DC3F |
515175658 |
Female Housing, 2 Circuits |
| DC3M |
515175232 |
Male Terminal |
| DC3M |
515175654 |
Male Terminal Housing, 2 Circuits |
| DLC |
710002705 |
Lock |
| DLC |
710002706 |
Female Housing 6 Circuits |
| DLC |
710005438 |
Female Terminal |
| DLC |
710005439 |
Female Terminal |
| DLC |
710010709 |
Connector Cap |
| DPS |
278002186 |
Wire Seal |
| DPS |
278002187 |
Female Terminal |
| DPS |
710001222 |
Lock |
| DPS |
710001873 |
Terminal This part replaces 710001765. |
| DPS |
710002075 |
Plug |
| DPS |
710003153 |
Seal |
| DPS |
710004989 |
Female Housing |
| DPS |
710005098 |
Lock |
| FP |
278002185 |
Male Housing, 4 Circuits |
| FP |
710001222 |
Lock |
| FP |
710001869 |
Terminal |
| FP |
710001873 |
Terminal This part replaces 710001765. |
| FP |
710003153 |
Seal |
| FP |
710006214 |
Lock |
| FRONT |
FW |
IC FAN F 278002185 Male Housing, 4 Circuits 278002185 |
| GND11 |
278001007 |
Insulated Sheath |
| GND11 |
710000421 |
Female Terminal |
| GND11 |
710006310 |
Cap |
| GND12 |
278001007 |
Insulated Sheath |
| GND12 |
710000421 |
Female Terminal |
| GND12 |
710006310 |
Cap |
| GND13 |
278001007 |
Insulated Sheath |
| GND13 |
710000421 |
Female Terminal |
| GND13 |
710006310 |
Cap |
| GND14 |
278001007 |
Insulated Sheath |
| GND14 |
710000421 |
Female Terminal |
| GND14 |
710006310 |
Cap |
| GND15 |
278001007 |
Insulated Sheath |
| GND15 |
710000421 |
Female Terminal |
| GND15 |
710006310 |
Cap |
| GND16 |
278001007 |
Insulated Sheath |
| GND16 |
710000421 |
Female Terminal |
| GND16 |
710006310 |
Cap |
| GND17 |
278001007 |
Insulated Sheath |
| GND17 |
710000421 |
Female Terminal |
| GND17 |
710006310 |
Cap |
| GND18 |
278001007 |
Insulated Sheath |
| GND18 |
710000421 |
Female Terminal |
| GND18 |
710006310 |
Cap |
| HELMET |
FAN |
CAP 278000281 Female Terminal Housing, 3 Circuits 278000281 |
| HUB |
ID |
LT 710007617 Plug 710007617 |
| IMU |
710001118 |
Wire Seal |
| IMU |
710003730 |
Housing |
| IMU |
710008356 |
Femal Terminal |
| IMU |
710010230 |
Female Terminal |
| LED |
L |
CAP 278000281 Female Terminal Housing, 3 Circuits 278000281 |
| LED |
R |
CAP 278000281 Female Terminal Housing, 3 Circuits 278000281 |
| LED |
ROOF |
CAP 278002185 Male Housing, 4 Circuits 278002185 |
| PF1 |
2 |
LT 710003132 Seal Joint 71000313 |
| PF12 |
278001325 |
Fuse Holder |
| PF12 |
710000113 |
Female Terminal |
| PF2 |
2 |
SP1 710000745 Little Fuse, 15 Ampere 710000745 |
| PF2 |
278000216 |
Wire Seal |
| PF2 |
278000218 |
Wire Seal |
| PF2 |
278001065 |
Wire Seal |
| PF2 |
278002578 |
Female Terminal |
| PF2 |
293300198 |
Seal |
| PF2 |
710000048 |
Wire Seal |
| PF2 |
710000890 |
Female Terminal |
| PF2 |
710000918 |
Female Terminal |
| PF2 |
710001631 |
Cap |
| PF2 |
710005623 |
Fusebox Ass'y |
| PF2 |
710007491 |
Cover This part replaces 710004120. |
| PF2 |
710010349 |
Fuses Decal |
| PF3 |
278001325 |
Fuse Holder |
| PF3 |
710000113 |
Female Terminal |
| POST |
CUP |
ACC WIP+ 515177246 Shrink Tubing, 6 mm 515177246 |
| POST |
DASH |
ACM1+ 710000913 Terminal 710000913 |
| PPS |
IC |
F 710001951 Housing 710001951 |
| PWR |
AMP |
SPK F 710008706 Connector Molex Female 2 Cavities 710008706 |
| PWR |
FLIP |
CAP 515175665 Male Terminal Housing, 2 Circuits 515175665 |
| REAR |
FW |
IC AUDIO F 278003535 Female Housing, 4 circuits 278003535 |
| S127 |
278001007 |
Insulated Sheath |
| S127 |
710000421 |
Female Terminal |
| S127 |
710006310 |
Cap |
| S201 |
278001007 |
Insulated Sheath |
| S201 |
710000421 |
Female Terminal |
| S201 |
710006310 |
Cap |
| S203 |
278001007 |
Insulated Sheath |
| S203 |
710000421 |
Female Terminal |
| S203 |
710006310 |
Cap |
| S210 |
278001007 |
Insulated Sheath |
| S210 |
710000421 |
Female Terminal |
| S210 |
710006310 |
Cap |
| S211 |
278001007 |
Insulated Sheath |
| S211 |
710000421 |
Female Terminal |
| S211 |
710006310 |
Cap |
| S212 |
278001007 |
Insulated Sheath |
| S212 |
710000421 |
Female Terminal |
| S212 |
710006310 |
Cap |
| S223 |
278001007 |
Insulated Sheath |
| S223 |
710000421 |
Female Terminal |
| S223 |
710006310 |
Cap |
| S225 |
278001007 |
Insulated Sheath |
| S225 |
710000421 |
Female Terminal |
| S225 |
710006310 |
Cap |
| S226 |
278001007 |
Insulated Sheath |
| S226 |
710000421 |
Female Terminal |
| S226 |
710006310 |
Cap |
| S227 |
278001007 |
Insulated Sheath |
| S227 |
710000421 |
Female Terminal |
| S227 |
710006310 |
Cap |
| S228 |
278001007 |
Insulated Sheath |
| S228 |
710000421 |
Female Terminal |
| S228 |
710006310 |
Cap |
| SB |
278001482 |
Seal |
| SB |
710001134 |
Female Terminal |
| SB |
710002043 |
Lock |
| SB |
710002177 |
Housing |
| SNS1 |
278002856 |
Housing JAE 2 Circuits |
| SNS1 |
278002857 |
Female Terminal |
| SPK |
FL |
F 515178579 Amphenol Female Connector 2 Cavities 515178579 |
| SPK |
FR |
F 515178579 Amphenol Female Connector 2 Cavities 515178579 |
| SS |
515177192 |
Female Housing, 2 Circuits |
| SS |
710001152 |
Lock |
| SS |
710001163 |
Wire Seal |
| SS |
710001164 |
Female Terminal |
| SW1 |
409010300 |
Female Terminal |
| SW2 |
409010300 |
Female Terminal |
| SW3 |
409010300 |
Female Terminal |
| SW4 |
710009927 |
Terminal |
| SWW |
710002000 |
Housing |
| SWW |
710003047 |
Terminal |
| SWWRC |
278000223 |
Female Terminal |
| SWWRC |
278000273 |
Male Housing, 3 Circuits |
| SWWRC |
278001065 |
Wire Seal |
| WASHER |
278001665 |
Female Terminal |
| WASHER |
515175670 |
Female Terminal Housing, 2 Circuits |
| WASHER |
515175675 |
Female Lock, 2 Circuits |
| WIPER |
278000632 |
Female Terminal |
| WIPER |
278000738 |
Male Lock, 4 Circuits |
| WIPER |
278000739 |
Male Connector, 4 Circuits |
| WIPER |
293000052 |
Sealing Cap |
| XCU |
A |
LT 515178666 Terminal 515178666 |
| 4X4 |
ACT |
SENSR F 278003442 Female Terminal Housing, 3 Circuits 278003442 |
| 20a1 |
710010659 |
Fuse Holder Support |
| 20a2 |
710010649 |
Fuses Decal |
| 20a3 |
710010349 |
Fuses Decal |
| 20a4 |
710010678 |
Fuses Decal |
| 20a5 |
710008059 |
Push Lock Washer |

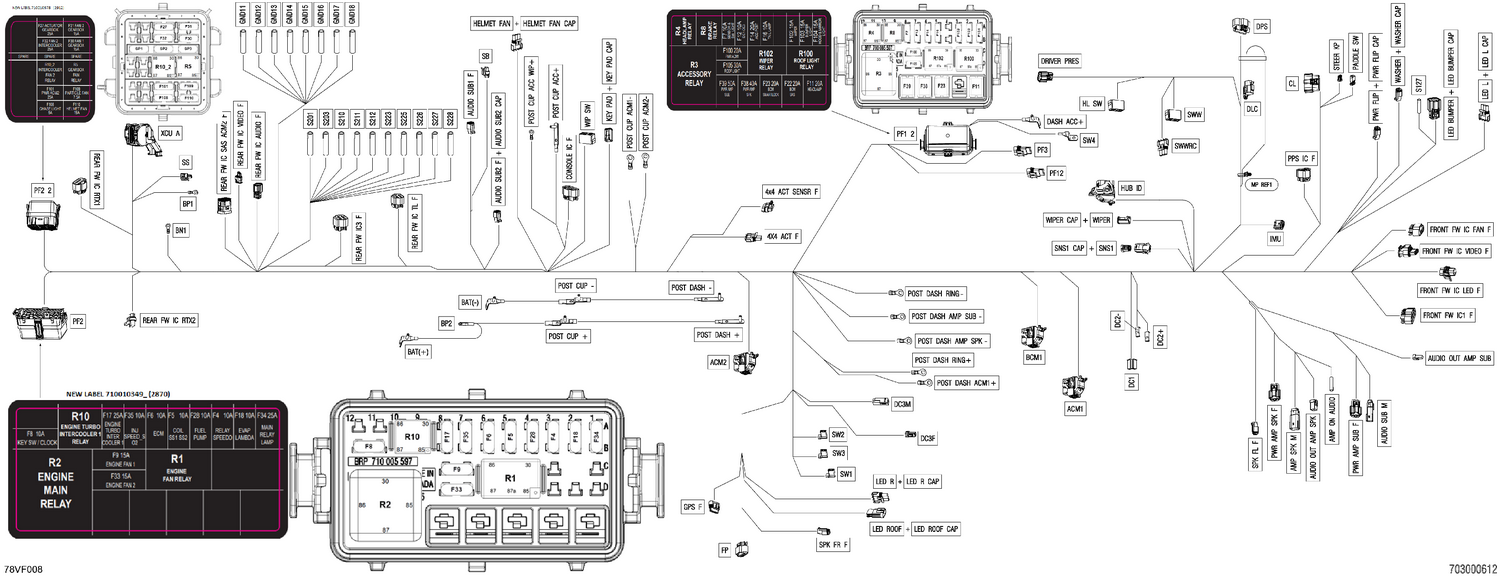

| 300 |
710010646 |
Main Wiring Harness Long |
