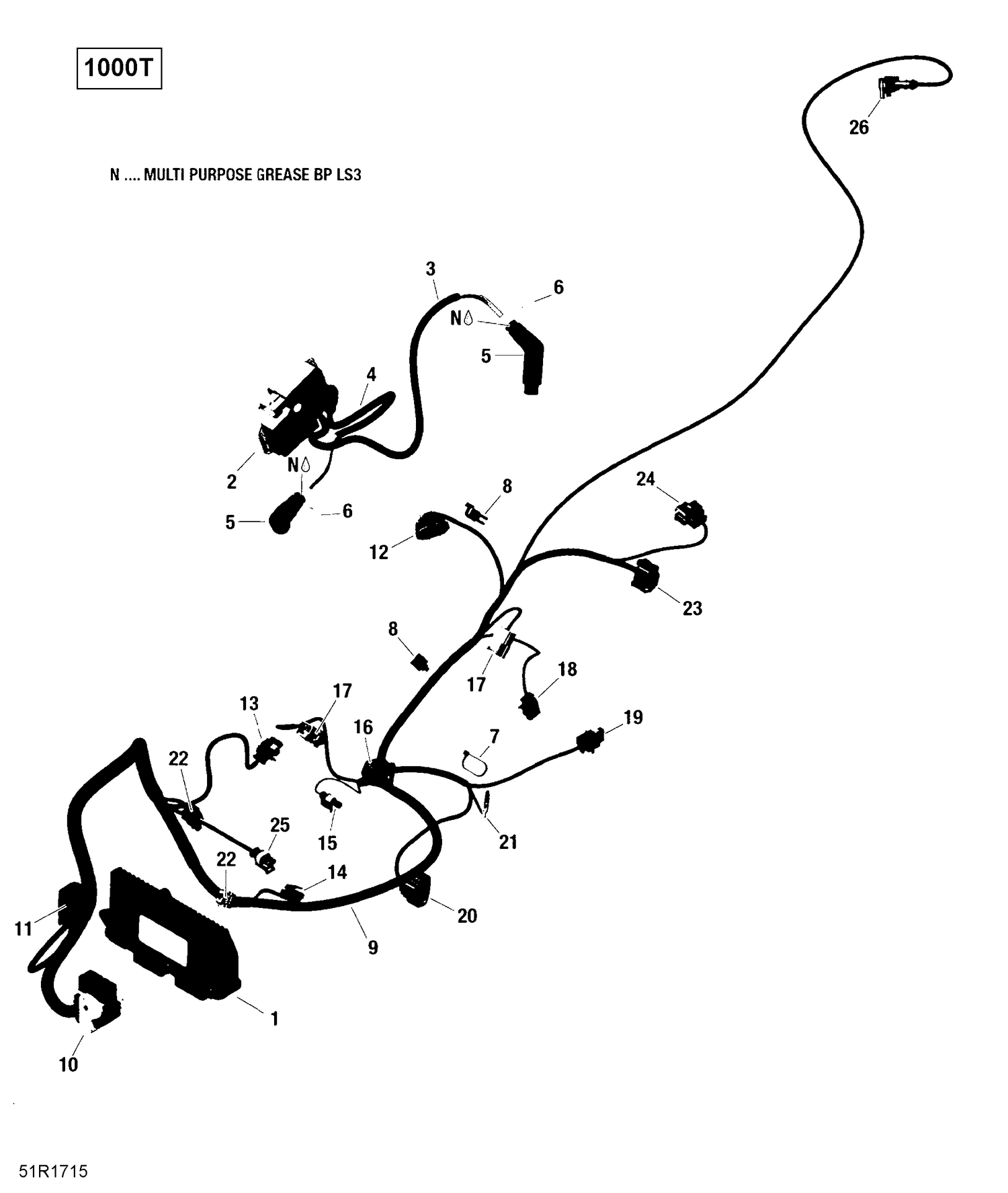

10- Engine Harness and Electronic Module - Turbo

10- Engine Harness and Electronic Module - Turbo

Parts (26)

RefPart NumberDescription
2 XXX Not Available As Spare Parts
2b 710000568 Housing
3 420665333 Spark Plug Cable, 790 mm, Rear This part replaces 420665330.
4 420665333 Spark Plug Cable, 790 mm, Rear This part replaces 420664300.
5 420265020 Spark Plug Connector
6 420866710 Tie Rap
7 293750001 Tie Wrap 94 mm
8 420951650 Cable Clamp 150mm
10 XXX Not Available As Spare Parts
11 710001927 Housing
12 XXX Not Available As Spare Parts
13 278000997 Male Housing, 3 Circuits
14 278001005 Male Housing, 2 Circuits
15 278001012 Male Housing, 1 Circuit
16 278002378 Male Housing
17 XXX Not Available As Spare Parts
18 278001005 Male Housing, 2 Circuits
19 278000997 Male Housing, 3 Circuits
20 710000329 Male Housing, 4 Circuits
21 XXX Not Available As Spare Parts
21a 278001009 Female Terminal
21b 278001007 Insulated Sheath
22 278001005 Male Housing, 2 Circuits
23 710003731 Housing
24 XXX Not Available As Spare Parts
25 XXX Not Available As Spare Parts
