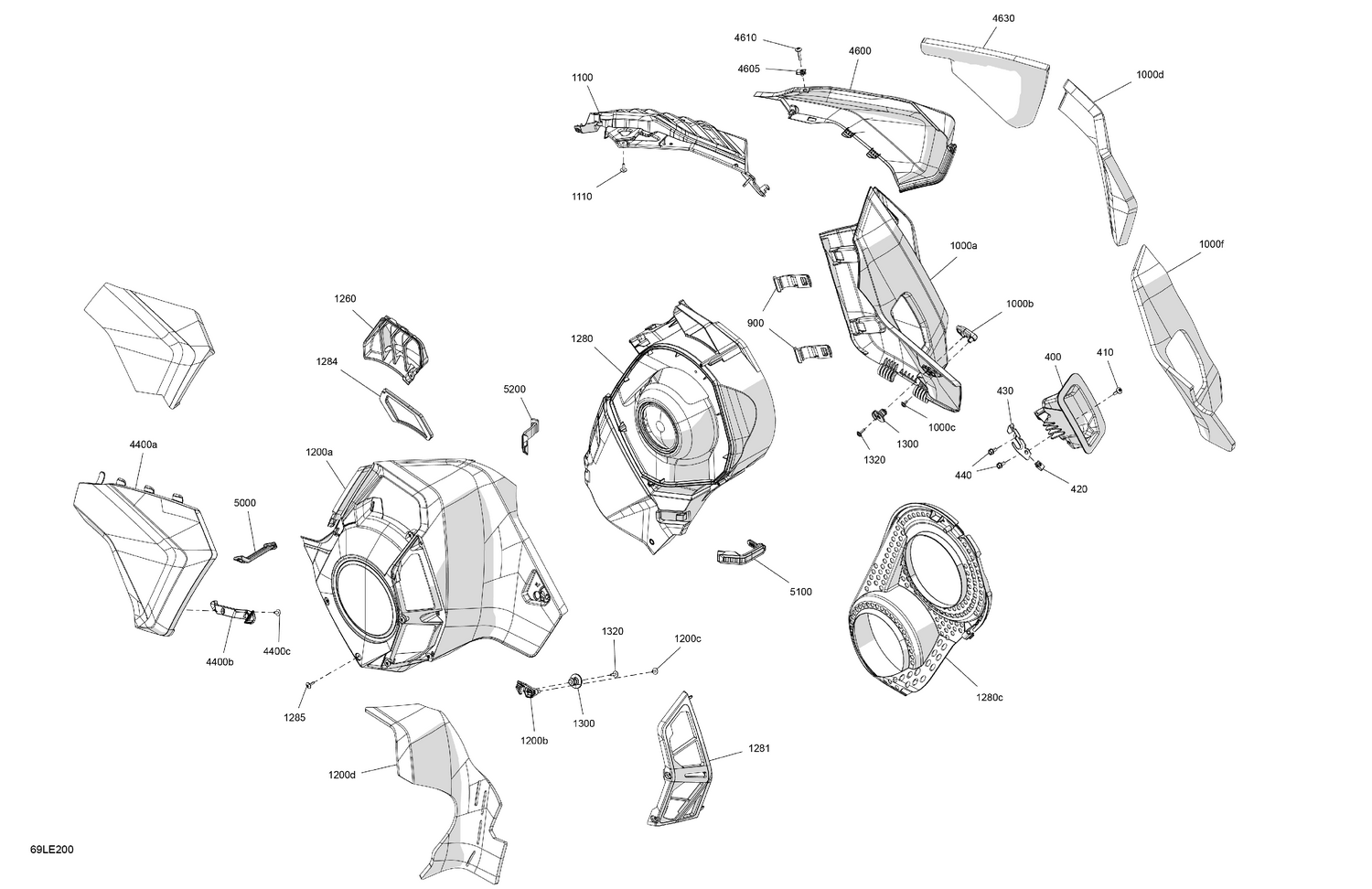

07- Body - Side Panels
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 400 | 517306759 | RH Console |
| 410 | 250000586 | Torx Truss M5 X 20 |
| 420 | 250000958 | Panel Nut M5 X 0.8 |
| 430 | 517306315 | Rope Guide |
| 440 | 210261250 | Hex. Flanged Screw M6 X 12 |
| 900 | 517308267 | Front Soft Latch |
| 1000a | 517307876 | Deep Black, RH Rear Panel |
| 1000b | 517306320 | RH Rear Latch |
| 1000c | 250000805 | Plastite Screw M4 X 10 |
| 1000d | 517308936 | Acoustic Insulation |
| 1000f | 517308937 | Acoustic Insulation |
| 1100 | 517307877 | RH Grill |
| 1110 | 250000725 | Screw M4 X 16 |
| 1200a | 517307878 | Deep Black, LH Panel |
| 1200b | 517306325 | LH Rear Latch |
| 1200c | 250000805 | Plastite Screw M4 X 10 |
| 1200d | 517308935 | Acoustic Insulation |
| 1260 | 517308537 | LH Out Grill |
| 1280c | 417300604 | Int CVT Cover |
| 1281 | 517308166 | Air Filter |
| 1284 | 517308716 | Filter Grill |
| 1285 | 250000889 | Screw M4 X 16 |
| 1300 | 517305985 | Rear Stud |
| 1320 | 250000725 | Screw M4 X 16 |
| 4400a | 517309570 | Hot Chilli Metallic, LH Front Panel |
| 4400b | 517308530 | LH Central Latch |
| 4400c | 250000805 | Plastite Screw M4 X 10 |
| 4600 | 517309571 | Hot Chilli Metallic, RH Front Panel |
| 4605 | 250000958 | Panel Nut M5 X 0.8 |
| 4610 | 250000587 | Torx Screw M5 X 26 |
| 4630 | 517309005 | Acoustic Insulation |
| 5000 | 517308518 | LH Lower Soft Latch |
| 5100 | 517309305 | Rear Soft Latch |
