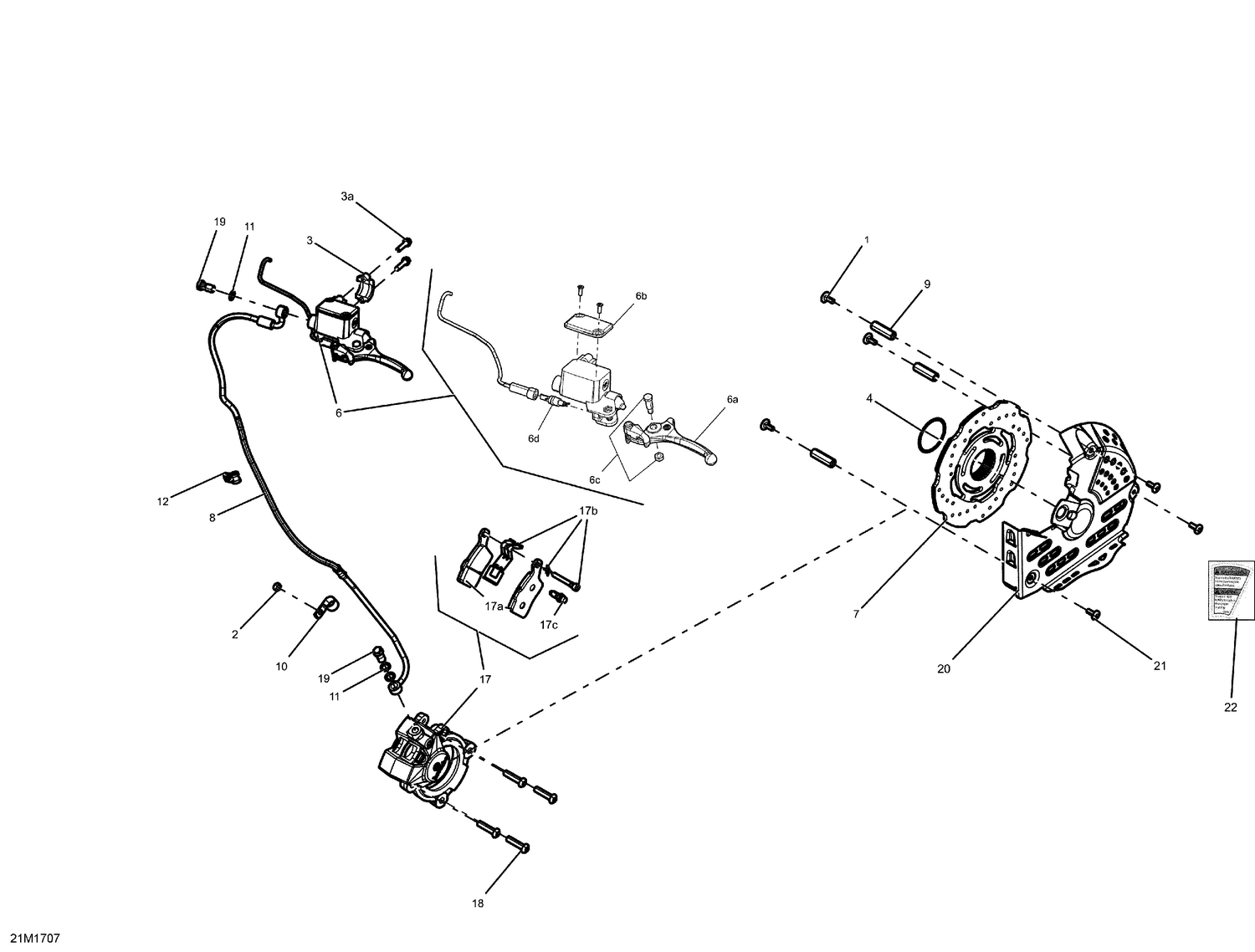

06- Brakes
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207761644 | Carriage Bolt M6 X 1.0 X 16 |
| 2 | 232561414 | Elastic Stop Nut M6 |
| 3a | 250000447 | Hex. Flange Screw M6 X 25 |
| 4 | 293300134 | O-Ring |
| 6a | 507032428 | LEVER - Call your local BRP dealership |
| 6b | 415029900 | Cap |
| 6c | 415030000 | Pin Ass'y |
| 6d | 507032526 | Microswitch |
| 7 | 507032513 | Disk |
| 8 | 507032528 | Hose |
| 9 | 507032533 | THREADED TUBE - Call your local BRP dealership |
| 10 | 518321570 | Open Clamp |
| 11 | 705601628 | Copper Washer This part replaces 705600310. |
| 12 | 293650256 | Clamp |
| 17a | 507032489 | Brake Pads Kit |
| 17b | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 17c | 507032475 | Bleeder |
| 18 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
| 19 | 507032551 | Banjo Bolt |
| 20 | 507032531 | DISK PROTECTOR, ALUMINUM - Call your local BRP dealership |
| 21 | 250000717 | Torx Head Screw M6 X 16 |
