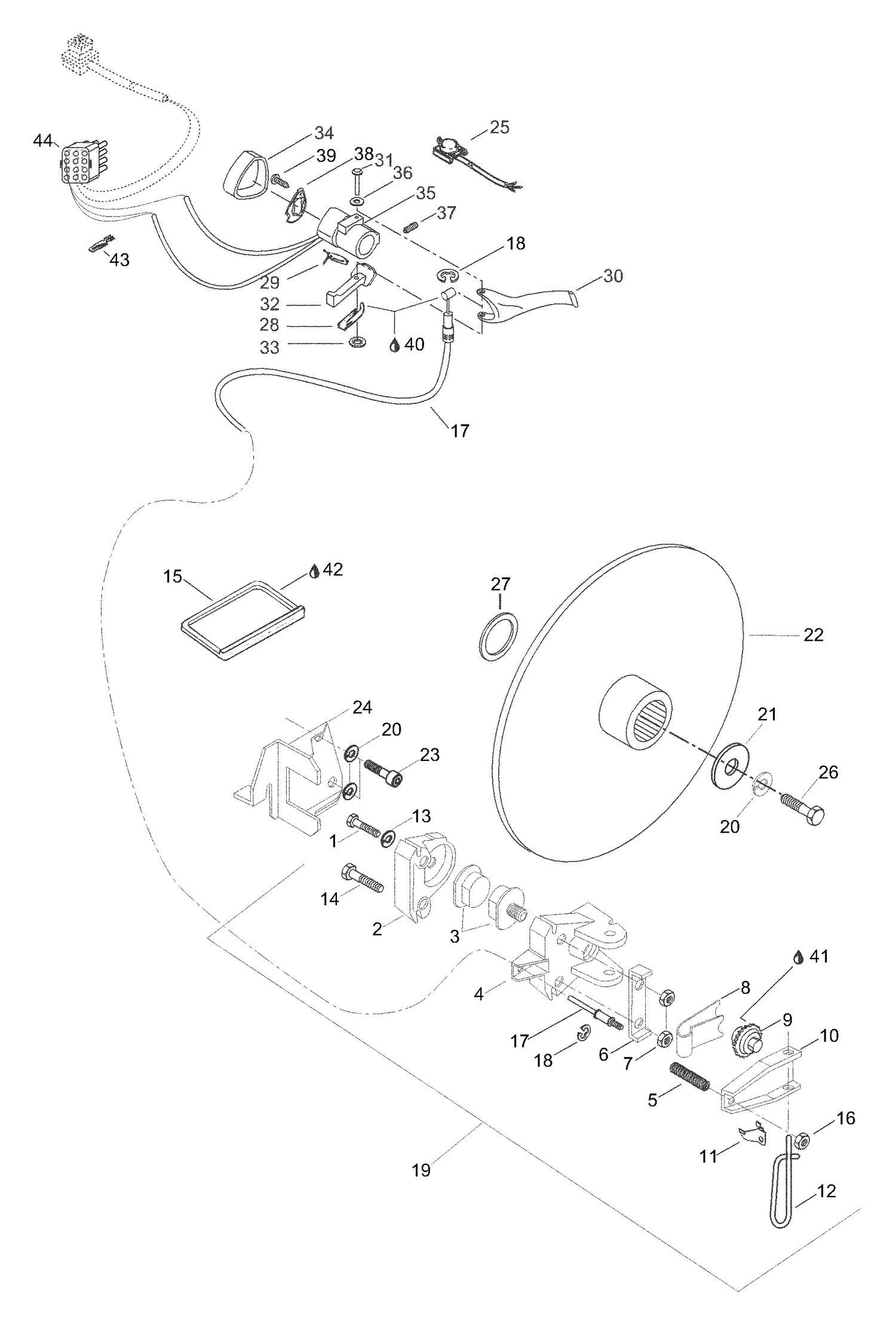

| Ref | Part Number | Description |
|---|
| 1 |
207151444 |
Screw M5 x 14 This part replaces 222051465. |
| 2 |
414466800 |
ANVIL - Call your local BRP dealership |
| 3 |
860700700 |
Pad_Brake Kit - Call your local BRP dealership |
| 4 |
507026600 |
Mobile brake lining hold |
| 5 |
414460600 |
SPRING - Call your local BRP dealership |
| 6 |
507020400 |
LOCK-TAB - Call your local BRP dealership |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 8 |
507020200 |
RELEASE SPRING - Call your local BRP dealership |
| 9 |
507019600 |
Ratchel wheel |
| 10 |
507021500 |
LEVER - Call your local BRP dealership |
| 11 |
507009400 |
RATCHET SPRING - Call your local BRP dealership |
| 12 |
507027500 |
Pin |
| 13 |
507023600 |
TAB LOCK - Call your local BRP dealership |
| 14 |
207085044 |
Screw M8x1.25x50 |
| 15 |
572013500 |
Slider |
| 16 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 17 |
414922500 |
BRAKE CABLE - Call your local BRP dealership |
| 18 |
31038 |
Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 19 |
580251002 |
Brake calibre, mec. |
| 20 |
20014 |
Lock washer |
| 21 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 22 |
5340065 |
Brake disc |
| 23 |
40305 |
Allen screw M8x20 |
| 24 |
5340079 |
Brake Support |
| 25 |
415085800 |
Dimmer switch |
| 26 |
40036 |
Screw M8x20 |
| 27 |
31013 |
Shim Ring |
| 28 |
517229300 |
Spring |
| 29 |
415085700 |
Brake light switch |
| 30 |
572025700 |
BRAKE HANDLE - Call your local BRP dealership |
| 31 |
517229400 |
PIN - Call your local BRP dealership |
| 32 |
572025200 |
Brake lever |
| 33 |
389804300 |
Push Nut |
| 34 |
572073800 |
BRAKE COVER - Call your local BRP dealership |
| 35 |
24034 |
Brake handle housing |
| 36 |
414729400 |
WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership |
| 37 |
414440800 |
Socket Set Screw M8 X 10 |
| 38 |
572086600 |
Cover |
| 39 |
414473200 |
Screw |
| 40 |
293550004 |
Dielectric grease |
| 41 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 42 |
413706100 |
LITHIUM GREASE, 400 GR - Call your local BRP dealership |
| 43 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
