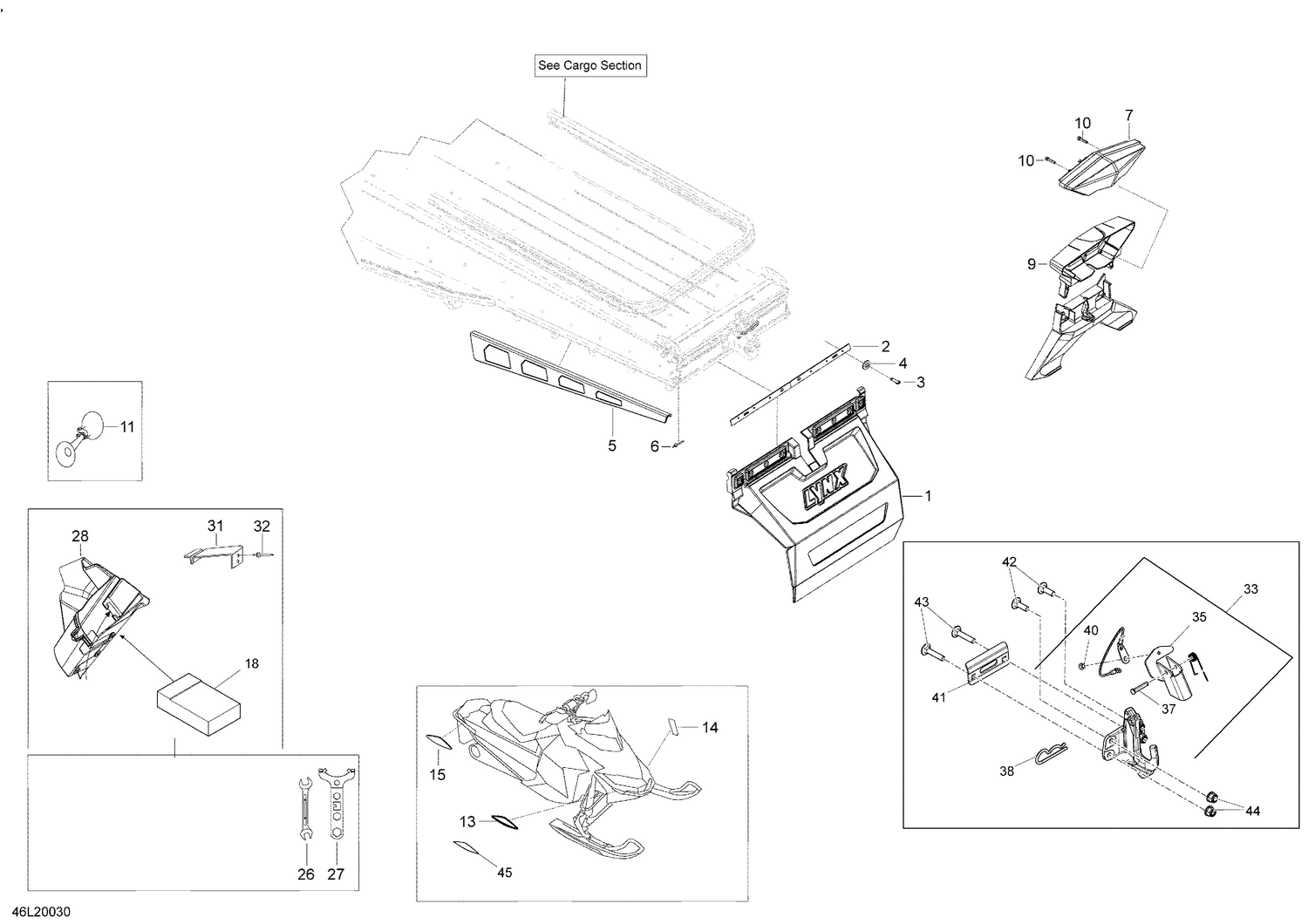

10- Utilities
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001408 | Snow Guard Lynx 600 Long Black |
| 2 | 520001022 | Fastening Plate 600 |
| 3 | 250000676 | Forming Screw M5 x 16 |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 293150163 | Rivet Hucklok |
| 7 | 520001233 | Rear light |
| 9 | 511000763 | Rear Light Support |
| 10 | 40611 | Screw Plastofast 4x10(1=10pcs) |
| 11 | 549011291 | Pallotorvi |
| 13 | 520001600 | Yellow, RH Reflector |
| 14 | 520001601 | Yellow, LH Reflector |
| 15 | 705002423 | Front Lateral Reflector, Amber |
| 18 | 520001593 | Tools Kit This part replaces 529000078. |
| 26 | 34017 | Fork Wrench 17/19mm |
| 27 | 520001442 | Wrench |
| 28 | 708200043 | TOOLS BOX - Call your local BRP dealership |
| 31 | 5346728 | Toolkit Support Spring (Opt.) |
| 32 | 36108 | Rivet steel 4.8x8 ZN bright |
| 35 | 520001775 | Locking Plate |
| 37 | 520001810 | Clevis Pin Din En 22341/ Iso 2341 B |
| 38 | 41029 | Spring cotter |
| 40 | 390909100 | Avex Rivet |
| 41 | 520000727 | Pressure plate |
| 42 | 207782544 | Carriage Bolt, M8 X 25 |
| 43 | 207784044 | Bolt Carriage M8 X 40 |
| 45 | 520001766 | Support Tape |
