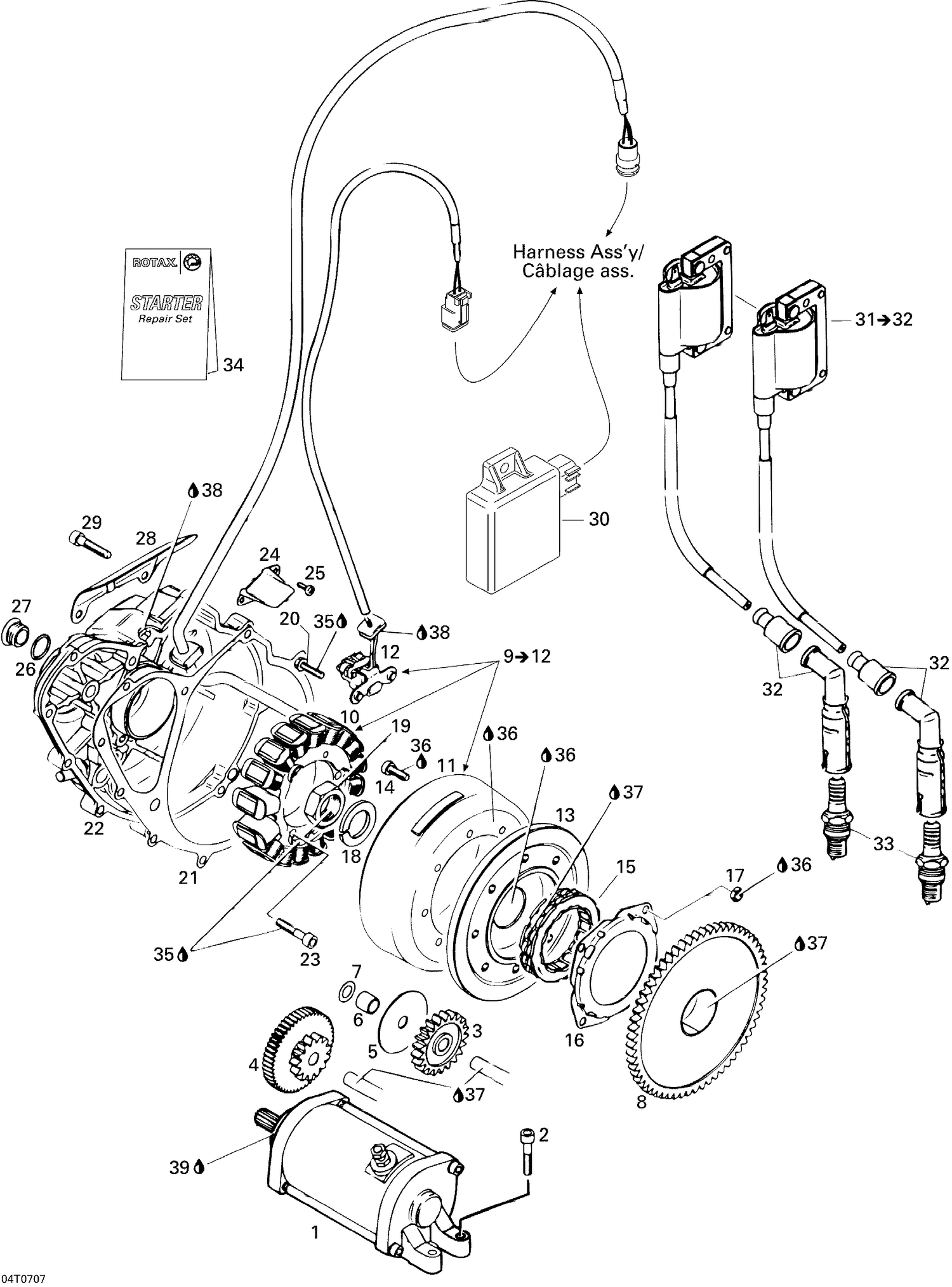

| Ref | Part Number | Description |
|---|
| 1 |
420294351 |
ELECTRIC STARTER - Call your local BRP dealership |
| 2 |
205063044 |
Socket Head Screw M6 X 30 |
| 3 |
420234655 |
INTERMEDIATE GEAR, 24 TEETH - Call your local BRP dealership |
| 4 |
420234756 |
Intermediate Gear, 11/52 Teeth |
| 5 |
420627080 |
Thrust Washer |
| 6 |
420247785 |
SPACER - Call your local BRP dealership |
| 7 |
420827590 |
Thrust Washer |
| 8 |
420634319 |
STARTING GEAR, 61 TEETH - Call your local BRP dealership |
| 10 |
420296520 |
STATOR ASS'Y, 12V180W - Call your local BRP dealership |
| 11 |
420296510 |
FLYWHEEL ROTOR ASS'Y, 12V180W - Call your local BRP dealership |
| 12 |
420265153 |
Pickup Ass'y |
| 13 |
420264577 |
FLYWHEEL ROTOR HUB - Call your local BRP dealership |
| 14 |
420640980 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 15 |
420958857 |
Sprag Clutch |
| 16 |
420259192 |
SPRAG CLUTCH HOUSING - Call your local BRP dealership |
| 17 |
420242031 |
NUT BM6 - Call your local BRP dealership |
| 18 |
420945759 |
Lock Washer, 22 mm |
| 19 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842237. |
| 20 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 21 |
420250920 |
GASKET - Call your local BRP dealership |
| 22 |
420211291 |
IGNITION COVER - Call your local BRP dealership |
| 23 |
420241814 |
Socket Head Screw M6 X 35 This part replaces 420241811. |
| 24 |
420251889 |
Interior Cable Support Ass'y This part replaces 420251880. |
| 25 |
420240196 |
Phillips Screw M4 X 8 This part replaces 420240195. |
| 26 |
420250890 |
O-Ring |
| 27 |
420241801 |
Drain Plug |
| 28 |
420251990 |
CABLE EXTERNAL COVER - Call your local BRP dealership |
| 29 |
205063044 |
Socket Head Screw M6 X 30 |
| 30 |
420664170 |
AMPLIFIER BOX - Call your local BRP dealership |
| 32 |
420665010 |
SPARK PLUG CAP - Call your local BRP dealership |
| 33 |
707000008 |
Spark Plug NGK DR8EA |
| 34 |
420294354 |
STARTER BRUSH KIT - Call your local BRP dealership |
| 35 |
293800060 |
Loctite 243, 10 ml |
| 36 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 37 |
293600121 |
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership This part replaces 293600039. |
| 38 |
420297907 |
Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
