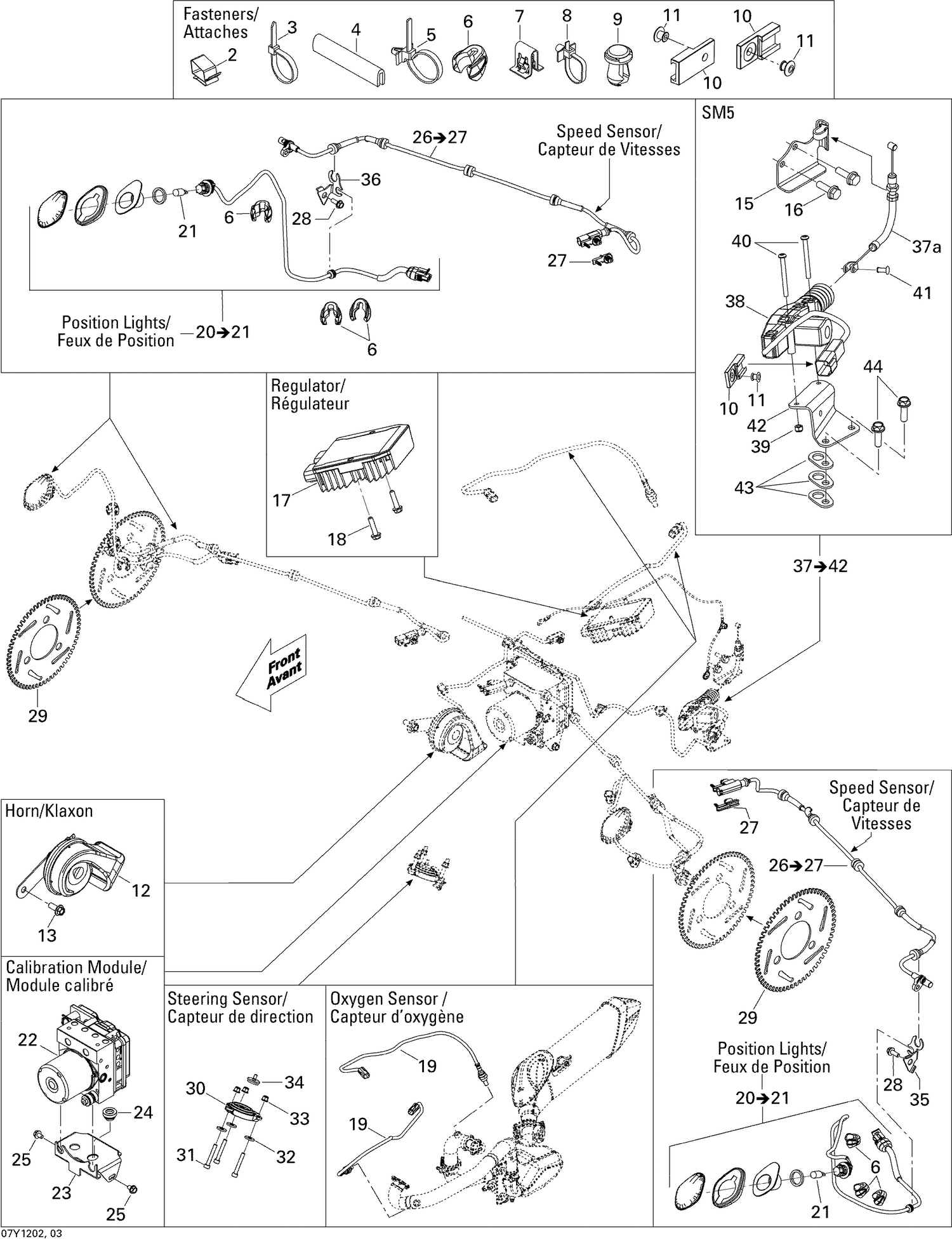

| Ref | Part Number | Description |
|---|
| 3 |
414115200 |
Tie-Rap 180 mm |
| 3 |
515175220 |
Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4 |
219704354 |
Trim 1000Mm Long |
| 6 |
710001452 |
WIRE BRACKET - Call your local BRP dealership |
| 8 |
710002197 |
UNLOCKING CLIP - Call your local BRP dealership |
| 9 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 10 |
270000141 |
Clip |
| 11 |
390402400 |
Pop Rivet 3/16" |
| 12 |
710004229 |
HORN - Call your local BRP dealership This part replaces 710002318. |
| 13 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 17 |
710001191 |
Voltage Regulator |
| 18 |
210262550 |
Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 19 |
707600872 |
Oxygen Sensor |
| 20 |
710001478 |
Position Light |
| 21 |
410922994 |
BULB 5W. - Call your local BRP dealership |
| 22 |
219800097 |
VSS Hydraulic Unit |
| 23 |
705600602 |
MODULE BRACKET - Call your local BRP dealership |
| 24 |
710000938 |
STOPPER - Call your local BRP dealership |
| 25 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 26 |
706200495 |
SPEED SENSOR - Call your local BRP dealership |
| 27 |
219800059 |
Speed Sensor Clip |
| 28 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 29 |
705600436 |
TONE WHEEL - Call your local BRP dealership |
| 30 |
709400363 |
Steering Position Sensor |
| 31 |
205053588 |
Socket Head Screw M5 X 35 |
| 32 |
234051410 |
Flat Washer M5 |
| 33 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 34 |
709400362 |
ENCODER MAGNET - Call your local BRP dealership |
| 35 |
710002019 |
LH WIRE SUPPORT - Call your local BRP dealership |
| 36 |
710002018 |
RH WIRE SUPPORT - Call your local BRP dealership |
