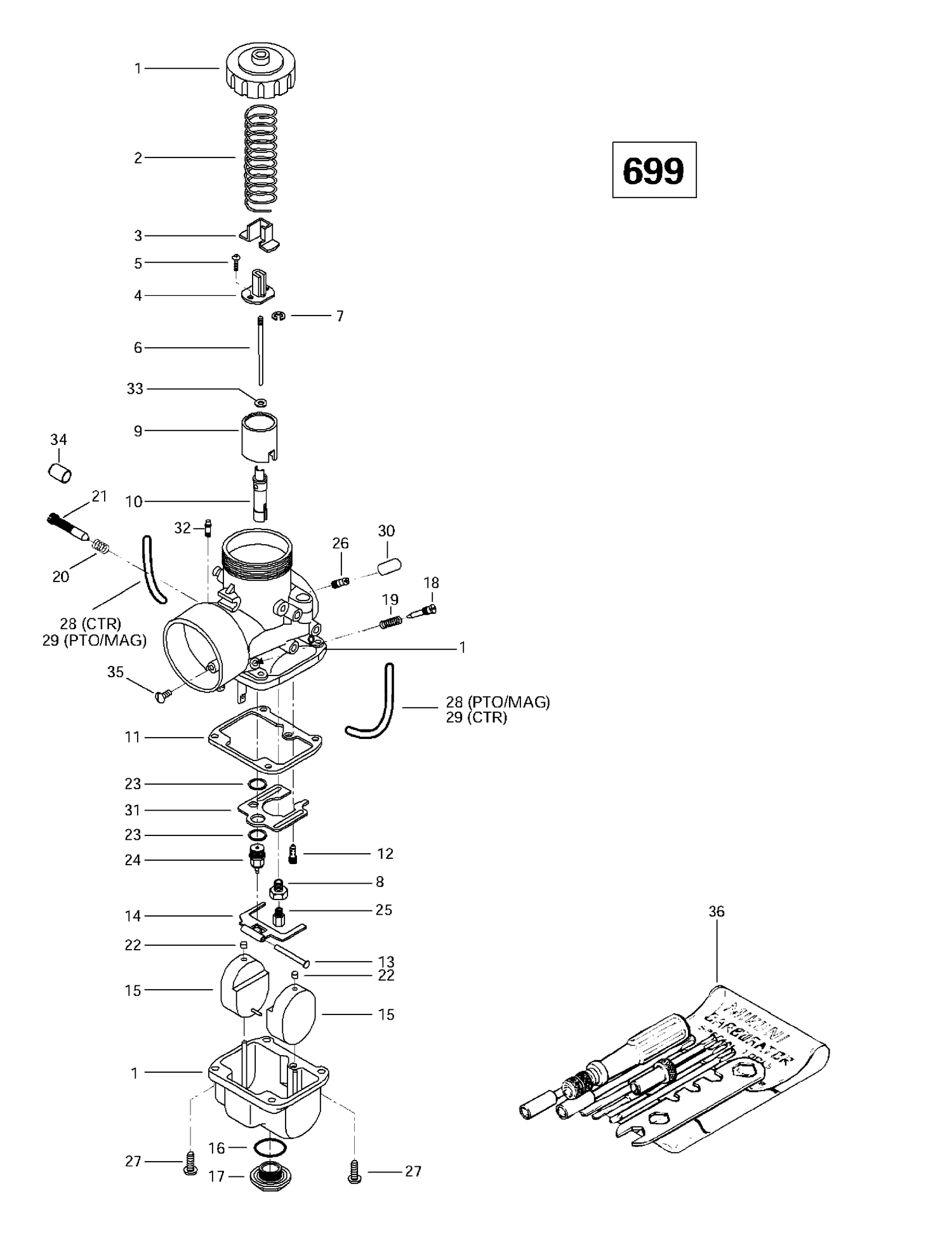

02- Carburetors (699)
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 404105100 | COVER - Call your local BRP dealership |
| 2 | 404154800 | Spring |
| 3 | 404122100 | Cover |
| 4 | 404160800 | CONNECTOR - Call your local BRP dealership This part replaces 404122900. |
| 5 | 404121300 | Screw With Washer |
| 6 | 404157900 | Needle J8-6DEY2 |
| 7 | 404152400 | E-Ring |
| 8 | 404105500 | Guide Screw |
| 9 | 404131300 | Piston Valve CA 2.5 |
| 10 | 404156900 | Needle Jet NJ-480-P7 |
| 11 | 404104700 | GASKET - Call your local BRP dealership |
| 12 | 404109500 | PILOT JET 50 - Call your local BRP dealership |
| 13 | 404103300 | Lever Pin |
| 14 | 404105000 | FLOAT LEVER - Call your local BRP dealership |
| 15 | 404105400 | FLOAT - Call your local BRP dealership |
| 16 | 404101500 | O-RING - Call your local BRP dealership |
| 17 | 404105600 | DRAIN PLUG SCREW - Call your local BRP dealership |
| 18 | 404149000 | AIR SCREW - Call your local BRP dealership |
| 19 | 404139800 | SPRING - Call your local BRP dealership |
| 20 | 404101700 | Spring |
| 21 | 404102800 | IDLE SPEED SCREW - Call your local BRP dealership |
| 22 | 404105800 | Cap |
| 23 | 404101600 | Seat Washer |
| 24 | 404147400 | Needle Valve 1.5 |
| 25 | 404106000 | Main Jet 350 |
| 26 | 404153400 | Nipple |
| 27 | 404102000 | Screw With Lock Washer |
| 28 | 404160000 | Vent Tube (Long) |
| 29 | 404160100 | AIR VENT TUBE - Call your local BRP dealership |
| 30 | 404155200 | Cap |
| 31 | Not | Available As Spare Part - Baffle Plate |
| 32 | 404158900 | Filter |
| 33 | 404117000 | Packing |
| 34 | 404152500 | Cap |
| 35 | 404131700 | Plug Screw |
| 36 | 404112000 | TOOL KIT - Call your local BRP dealership |
