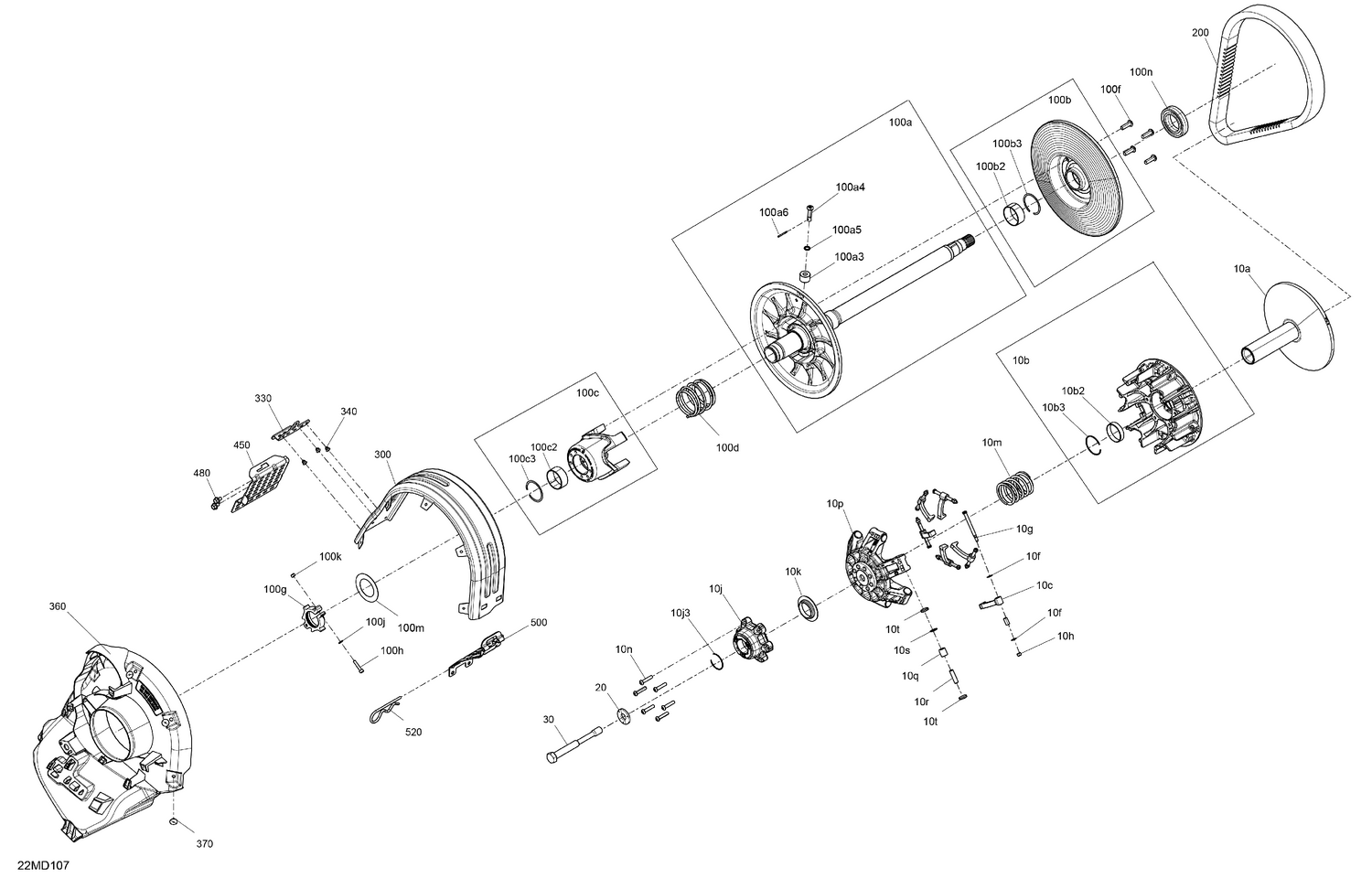

04- Drive - Pulley
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 417224091 | Fixed Flange Ass'y |
| 10b2 | 417222758 | Bushing |
| 10b3 | 293370037 | Circlip |
| 10c | 417223508 | Ramp 716 Ass'y |
| 10f | 417223255 | Thrust Washer |
| 10g | 417223694 | Ramp Axle |
| 10h | 417224336 | Nut-Stop Elastic DIN.985 |
| 10j3 | 293370065 | Circlip |
| 10k | 417223752 | Seat Spring |
| 10m | 417223745 | Clutch Spring |
| 10n | 250000580 | Torx Screw M6 X 30 |
| 10p | 417223865 | Governor Cup Ass'y |
| 10q | 417223767 | Roller |
| 10r | 417223257 | Roller Axle |
| 10s | 293300185 | O-Ring |
| 10t | 417223919 | Slider Shoe |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300432 | Pulley Drive Bolt |
| 100a3 | 417127016 | Pulley Roller |
| 100a4 | 417127294 | Pivot Stud |
| 100a5 | 250200009 | Lock Washer 8 mm |
| 100a6 | 250400070 | Spring Pin |
| 100b2 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100b3 | 293370049 | Circlip |
| 100c2 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100c3 | 293370049 | Circlip |
| 100d | 417127467 | Release Spring |
| 100f | 250000757 | Button Head Torx Screw M8 X 25 S.Gr |
| 100g | 415129604 | Calibration Ass'y |
| 100h | 250000981 | Socket Screw M5 X 25 |
| 100j | 234051410 | Flat Washer M5 |
| 100k | 232551414 | Elastic Stop Nut M5 |
| 100m | 417127155 | Washer |
| 100n | 504152574 | Ball Bearing |
| 200 | 417300585 | Drive Belt |
| 300 | 417300620 | Belt Guard |
| 330 | 417300525 | Front Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360 | 417300609 | CVT Cooling Duct |
| 370 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 450 | 417300583 | Front Guard Support |
| 480 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 500 | 417300633 | Rear Guard Support |
