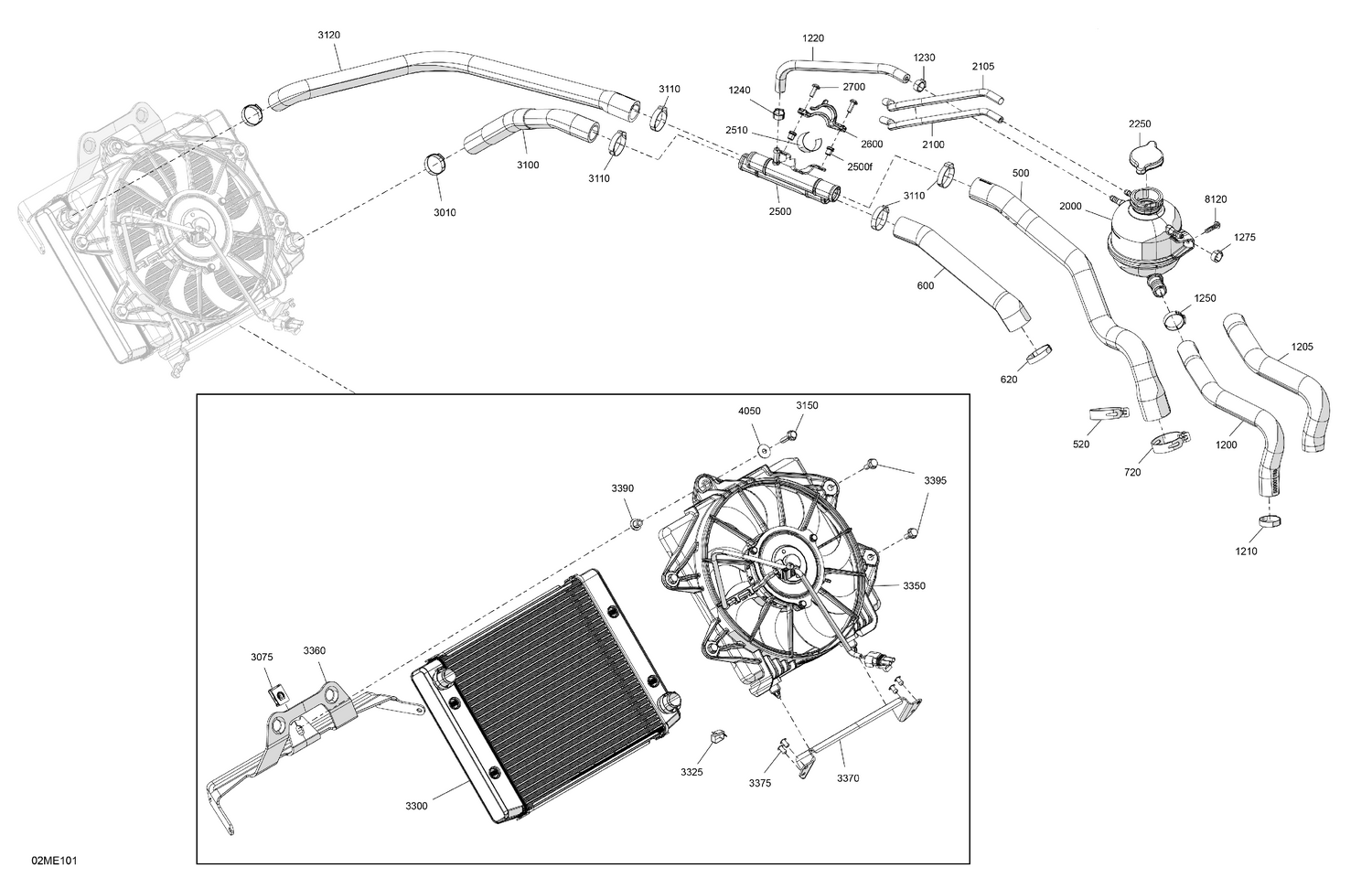

02- Engine - Cooling
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001449 | Radiator Hose |
| 520 | 293650264 | Norma Spring Clamp |
| 600 | 509001013 | Engine Outlet Hose |
| 620 | 293650333 | Crimp Clamp |
| 720 | 293650264 | Norma Spring Clamp |
| 1200 | 509001453 | Hose |
| 1205 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 1210 | 293650099 | Crimp Clamp |
| 1220 | 509001454 | Hose |
| 1230 | 293650046 | Oetiker Clamp |
| 1240 | 293650046 | Oetiker Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 2000 | 509001033 | Cooling Tank |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long |
| 2105 | 503195447 | Protector Tube |
| 2250 | 509000180 | Radiator Pressure Cap |
| 2500f | 293450268 | Insert M5 X 0.8 |
| 2510 | 512061214 | Protector |
| 2600 | 509001379 | Clamp |
| 2700 | 250000742 | Torx Screw M5 X 14 |
| 3010 | 293650099 | Crimp Clamp |
| 3075 | 250100208 | Panel Nut M6 X 1.0 |
| 3100 | 509001451 | Radiator Hose |
| 3110 | 293650331 | Crimp Clamp |
| 3120 | 509001452 | Radiator Hose |
| 3150 | 207562544 | Hex. Flange Screw M6 X 25 |
| 3300 | 509001057 | Front Radiator This part replaces 509001465. |
| 3325 | 710010204 | Clip |
| 3350 | 509001302 | Fan Ass'y |
| 3360 | 509001023 | Central Radiator Support |
| 3370 | 509001024 | Lower Radiator Support |
| 3375 | 390909100 | Avex Rivet |
| 3390 | 293900151 | Bushing |
| 3395 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 4050 | 250200082 | Flat Washer |
