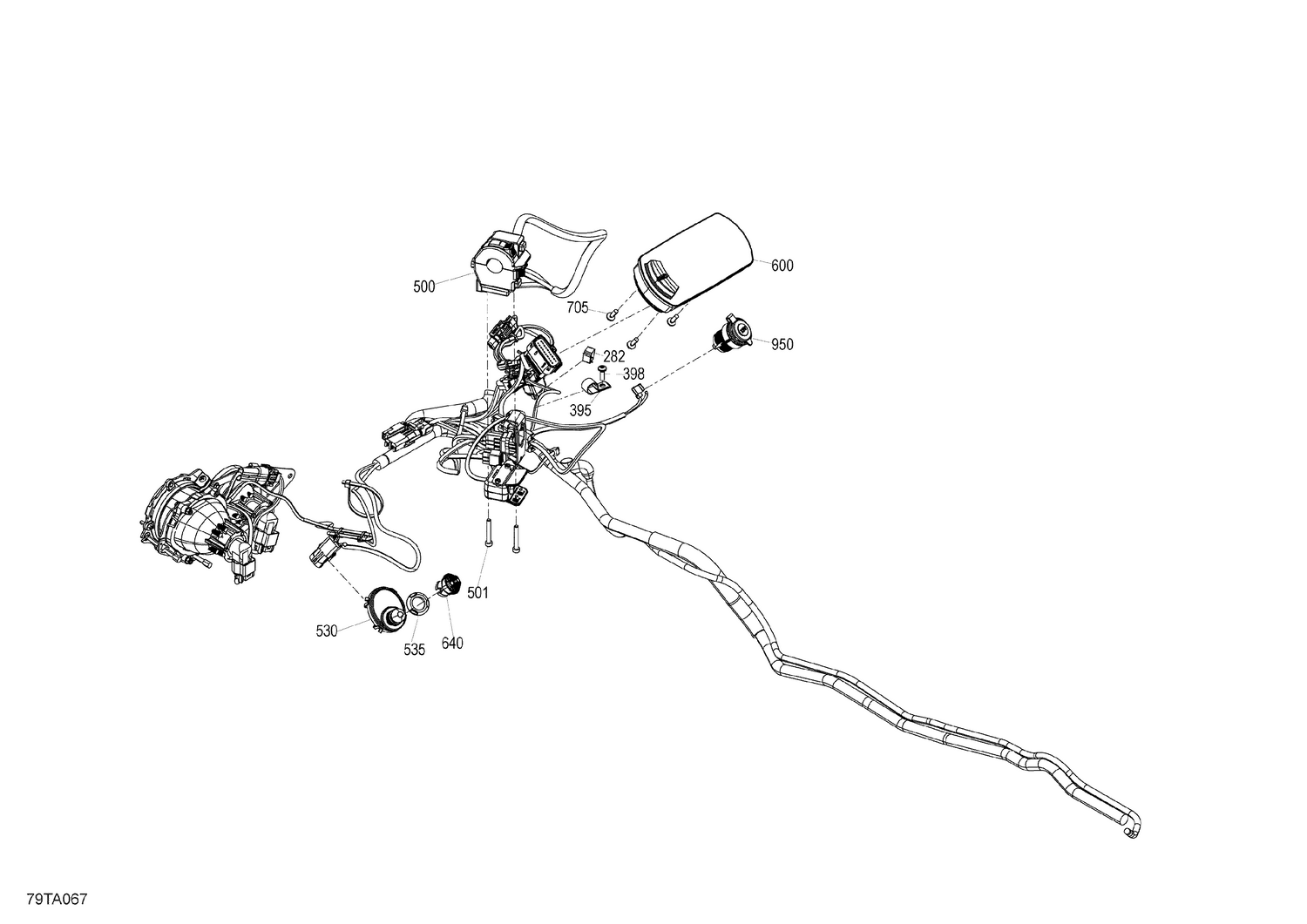

08- Electric - Front System
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 282 | 414227300 | Clip |
| 395 | 518321570 | Open Clamp |
| 398 | 250000720 | Torx Screw K50 X 16 |
| 500 | 710006134 | Switch Handle |
| 501 | 205053588 | Socket Head Screw M5 X 35 |
| 530 | 515178840 | Terminal Dess One-Wire This part replaces 710007242. |
| 535 | 278002963 | Safety Nut (DESS Switch) |
| 600 | 710007407 | Multifunction Compact Gauge |
| 640 | 710004964 | Grey Key RFID |
| 705 | 250000720 | Torx Screw K50 X 16 |
