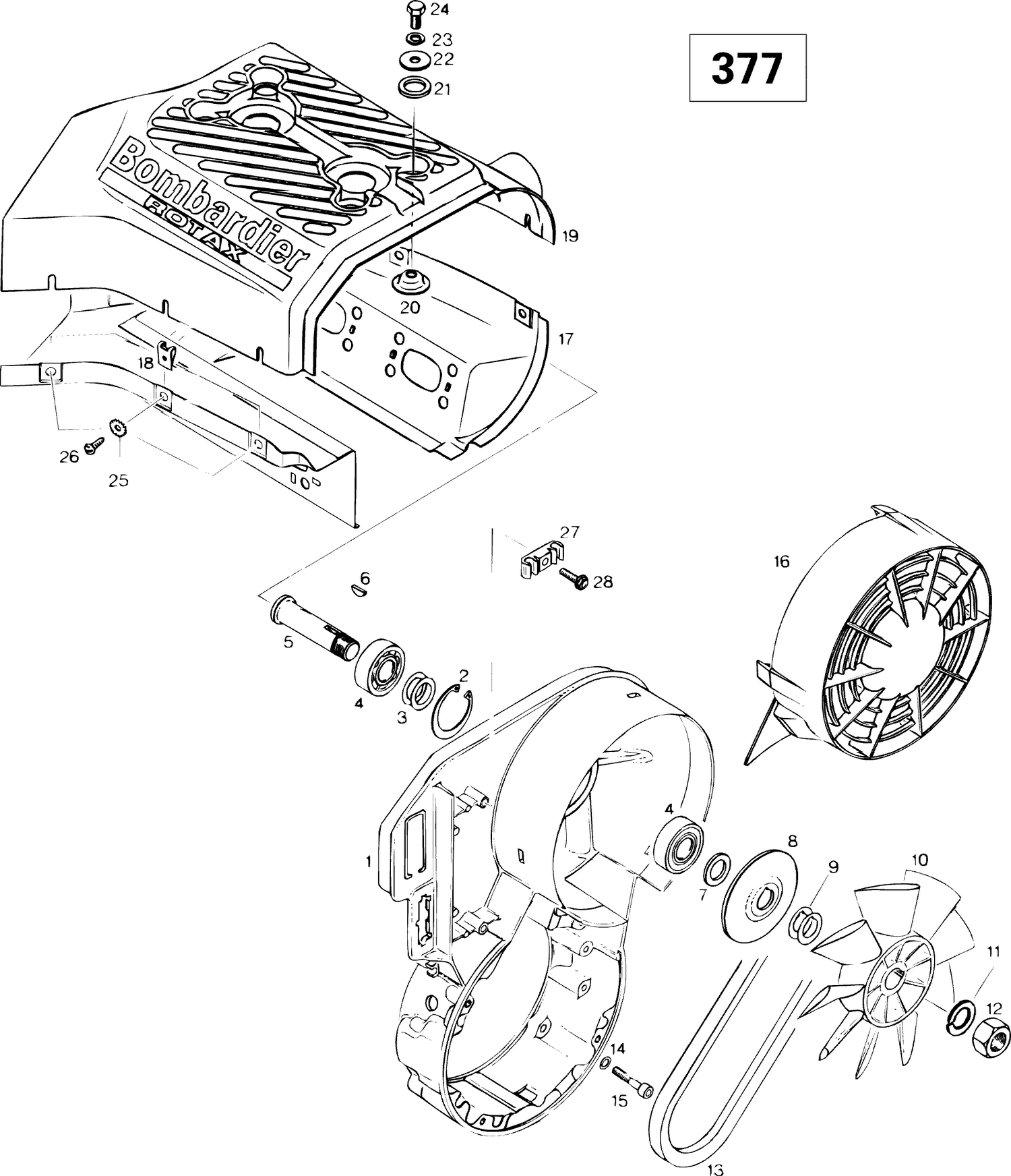

01- Cooling System (377)
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420912996 | Fan Housing |
| 2 | 420945880 | Lock Ring |
| 3 | 420244585 | Shim |
| 4 | 420832161 | Ball Bearing This part replaces 405406100. |
| 5 | 420937941 | Fan Axle This part replaces 420937940. |
| 6 | 420246015 | Woodruff Key |
| 7 | 420827650 | Spacer Bushing |
| 8 | 420980496 | Flange This part replaces 420980495. |
| 9 | 420827080 | Shim 0.5 mm |
| 9 | 420827082 | Shim 0.2 mm |
| 10 | 420866295 | Fan |
| 11 | 420945756 | Lock Washer |
| 12 | 420942289 | Nut M16 This part replaces 420942285. |
| 13 | 414630700 | V-Belt |
| 14 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 15 | 205063044 | Socket Head Screw M6 X 30 This part replaces 222963065. |
| 16 | 420975740 | Fan Cover |
| 17 | 420810555 | Cylinder Cowl, Lower Half |
| 18 | 420842390 | Spring Nut |
| 19 | 420810607 | Cylinder Cowl Ass'y |
| 20 | 420827817 | Cup Washer |
| 21 | 420960865 | Rubber Washer |
| 22 | 420227936 | Washer This part replaces 420227935. |
| 23 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 24 | 207181644 | Hex. Screw M8 x 16 This part replaces 222081665. |
| 25 | 420845330 | WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270. |
| 26 | 417300006 | Tapping Screw M4.8 X 16 This part replaces 420841495. |
| 27 | 420860940 | CLAMP - Call your local BRP dealership |
