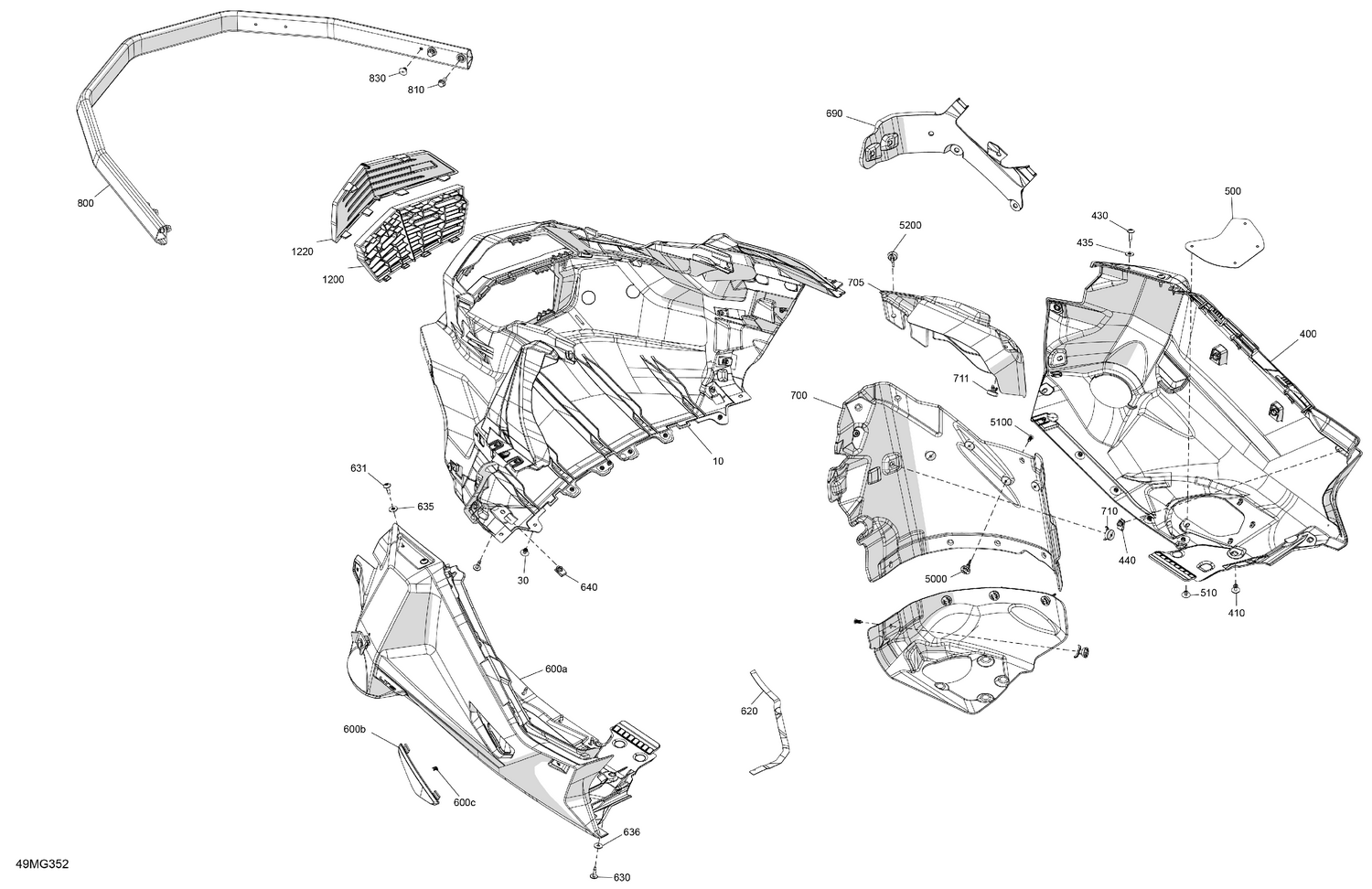

| Ref | Part Number | Description |
|---|
| 10 |
502008922 |
Deep Black, Front Bottom Pan |
| 30 |
293150321 |
Black, Rivet Ornit 4.8 X 14 |
| 400 |
502008924 |
Deep Black, RH Bottom Pan |
| 410 |
293150322 |
Black, Rivet Ornit 4.8 X 12 |
| 430 |
250000586 |
Torx Truss M5 X 20 |
| 435 |
517307442 |
Washer |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 500 |
502007868 |
Plate |
| 510 |
293150322 |
Black, Rivet Ornit 4.8 X 12 |
| 600a |
502008928 |
Deep Black, LH Bottom Pan |
| 600b |
502008929 |
Deep Black, LH Cover |
| 600c |
269800431 |
Hairpin Cotter |
| 620 |
219704476 |
Gasket, Neoprene 2000Mm Long |
| 630 |
250001232 |
Screw Torx M5 X 20 |
| 631 |
250001232 |
Screw Torx M5 X 20 |
| 635 |
517307442 |
Washer |
| 636 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 690 |
502008995 |
Heat Shield Support |
| 700 |
502009018 |
Rear Central Acoustic Panel |
| 705 |
502008868 |
Acoustic Panel |
| 710 |
502008752 |
Stopper |
| 711 |
502008752 |
Stopper |
| 800 |
502009023 |
Bare Aluminum, Front Bumper |
| 810 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 830 |
293150321 |
Black, Rivet Ornit 4.8 X 14 |
| 1200 |
502007979 |
Lower Prefilter Grille |
| 1220 |
502008833 |
Upper Prefilter Grille |
| 5000 |
502008753 |
Stopper |
| 5100 |
293730062 |
Dart |
