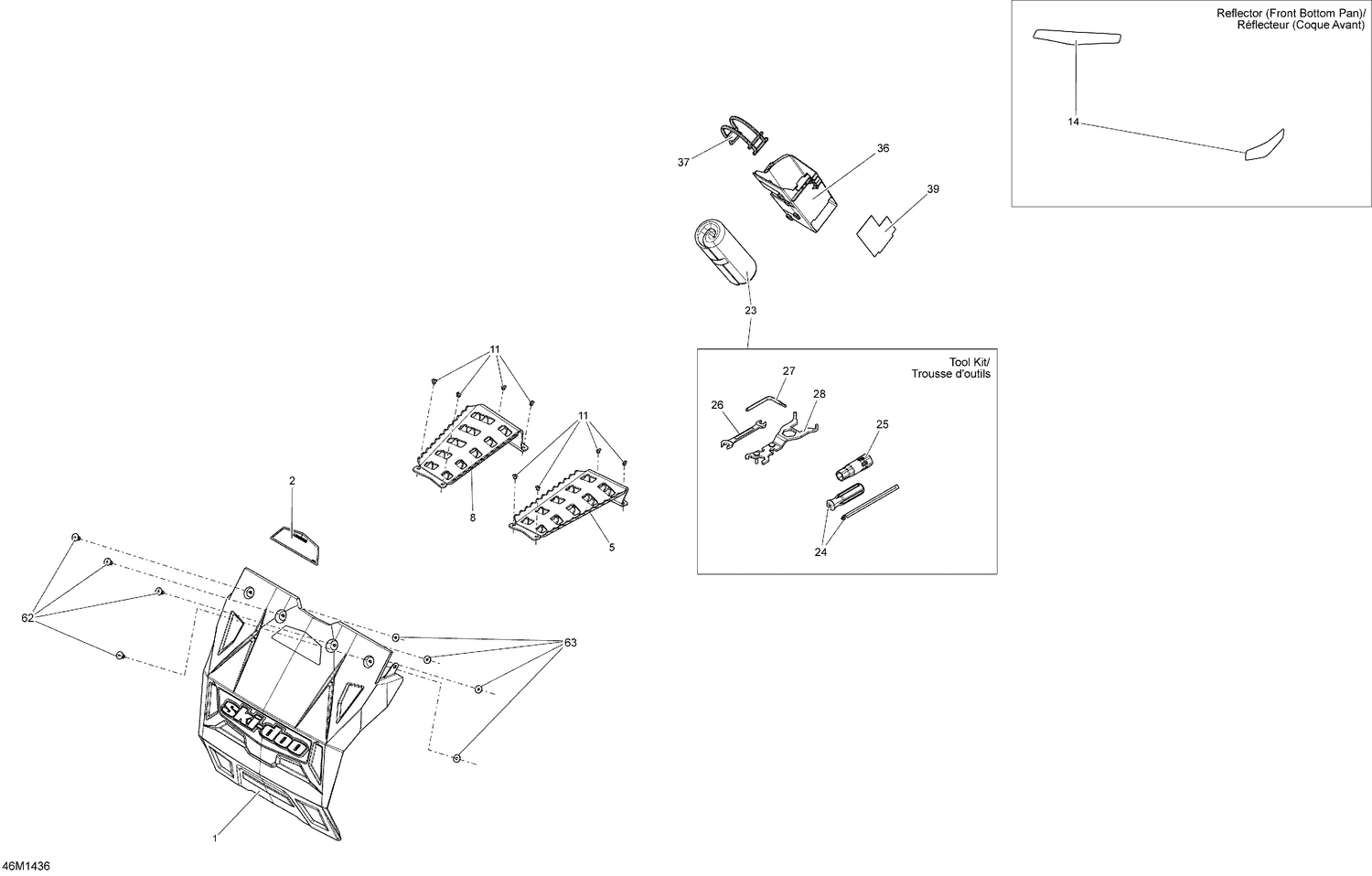

| Ref | Part Number | Description |
|---|
| 1 |
520001342 |
Snow Guard, Black W Alloy Grey Insert |
| 2 |
516005175 |
Warning Decal, Track |
| 5 |
520000768 |
MAT BLACK RH FOOTREST - Call your local BRP dealership |
| 8 |
520000769 |
MAT BLACK LH FOOTREST - Call your local BRP dealership |
| 11 |
293150102 |
Rivet 3/16" |
| 14 |
520001234 |
YELLOW FRONT REFLECTOR XR - Call your local BRP dealership |
| 23 |
529000066 |
Tool Kit |
| 24 |
529000004 |
SCREWDRIVER - Call your local BRP dealership |
| 25 |
529000046 |
Set Key, 16/21 mm |
| 26 |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 27 |
520001142 |
Spacing Tool |
| 28 |
520000988 |
WRENCH SUSPENSION - Call your local BRP dealership |
| 36 |
520000894 |
Tool Kit Rack |
| 37 |
520000528 |
Latch |
| 39 |
514054827 |
Reflective Sheet |
| 62 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
