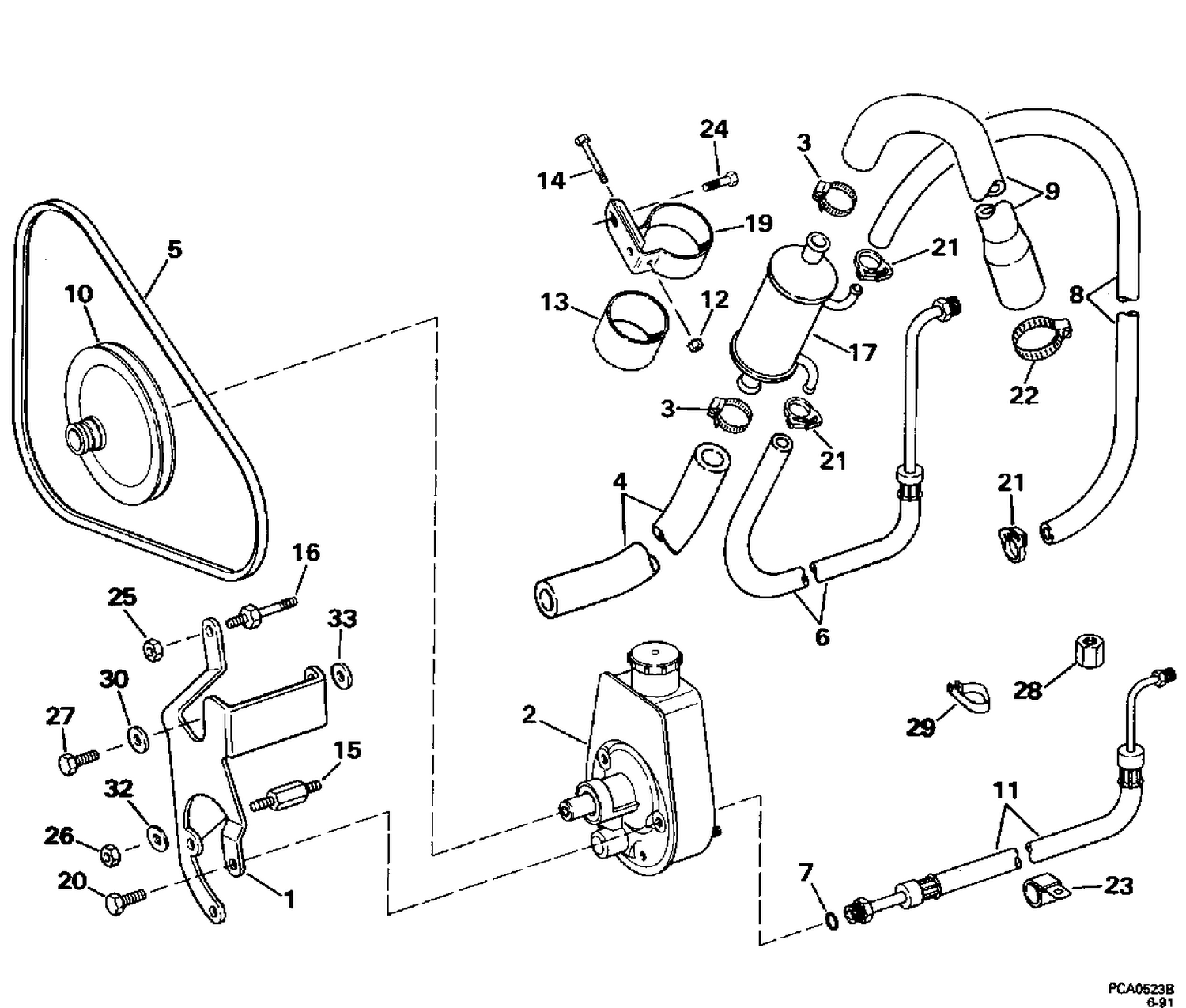

| Ref | Part Number | Description |
|---|
| 1 |
3853463 |
BRACKET, Power steering |
| 2 |
3850491 |
Pump Ay This part replaces 3850492. |
| 3 |
0912627 |
CLAMP This part replaces 3852602. |
| 4 |
3853240 |
HOSE, Cooler to cooler |
| 4 |
3854848 |
HOSE, Cooler to cooler |
| 5 |
3853368 |
BELT, Power steering |
| 6 |
3854056 |
HOSE, Cyl. to oil cooler, return |
| 6 |
3854168 |
HOSE, Cyl. to oil cooler, return |
| 7 |
3852497 |
O-RING, Pressure hose |
| 8 |
3853239 |
HOSE, Cooler to pump, return |
| 8 |
3853632 |
HOSE, Cooler to pump, return |
| 9 |
3853242 |
HOSE, Gimbal to cooler |
| 9 |
3854853 |
HOSE, Reservoir to cooler |
| 10 |
3853804 |
PULLEY, Steering pump |
| 11 |
3853967 |
HOSE, Pump to valve, pressure |
| 12 |
3852079 |
BRACKET, Oil cooler |
| 13 |
3853236 |
SLEEVE, Ignition coil |
| 15 |
3852612 |
STUD, Bracket to engine |
| 16 |
3852507 |
STUD, Bracket to water pump |
| 17 |
3851921 |
OIL COOLER This part replaces 3852840. |
| 19 |
3852218 |
BRACKET, Oil cooler |
| 20 |
3853405 |
SCREW, Adjustment bracket |
| 22 |
3853786 |
CLAMP INSTRUMENT CABLE |
| 23 |
0910201 |
COLLIER, solénoïde amorçage This part replaces 3852490. |
| 24 |
3853266 |
BOLT, Distributor |
| 25 |
3853403 |
NUT, Alternator brace to pump |
| 26 |
3853404 |
NUT, Exhaust manifold |
| 27 |
3853154 |
SCREW, Bracket to cylinder head |
| 28 |
3853315 |
FITTING, Steering hose plug |
| 29 |
3852837 |
CLAMP, Hoses to cylinder head |
| 30 |
0312972 |
WASHER, Alternator brkt This part replaces 3852116. |
| 31 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158. |
| 32 |
0312972 |
WASHER, Alternator brkt This part replaces 3852116. |
