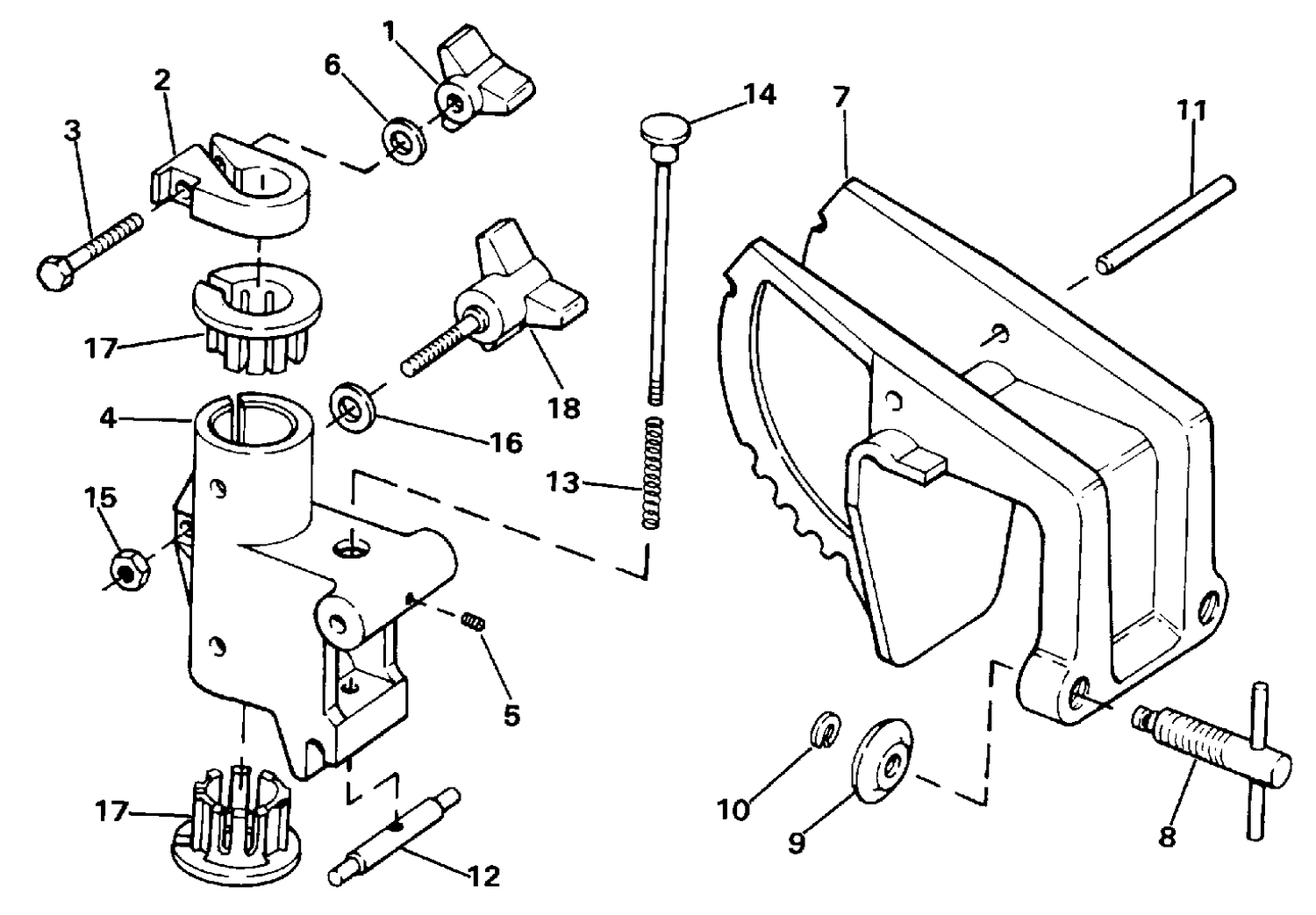

| Ref | Part Number | Description |
|---|
| 1 |
0398863 |
ADJUSTMENT KNOB, Tube to bracket This part replaces 0320399. |
| 2 |
0325617 |
CLAMP, Motor tube height adj. This part replaces 0320423. |
| 3 |
0908511 |
SCREW This part replaces 0553114. |
| 4 |
0116424 |
SWIVEL BRACKET This part replaces 0328085. |
| 5 |
0321223 |
SET SCREW |
| 6 |
0303886 |
LOCKWASHER |
| 7 |
0394750 |
STERN BRACKET ASSY |
| 8 |
0394749 |
CLAMP SCREW & HANDLE ASSY. |
| 11 |
0330500 |
PIN Swivel brkt. to stern brkt. This part replaces 0320375. |
| 12 |
0320363 |
LATCH BAR |
| 13 |
0320376 |
SPRING, Rod assy, |
| 14 |
0386888 |
KNOB & ROD, Latch |
| 17 |
0320364 |
BUSHING |
