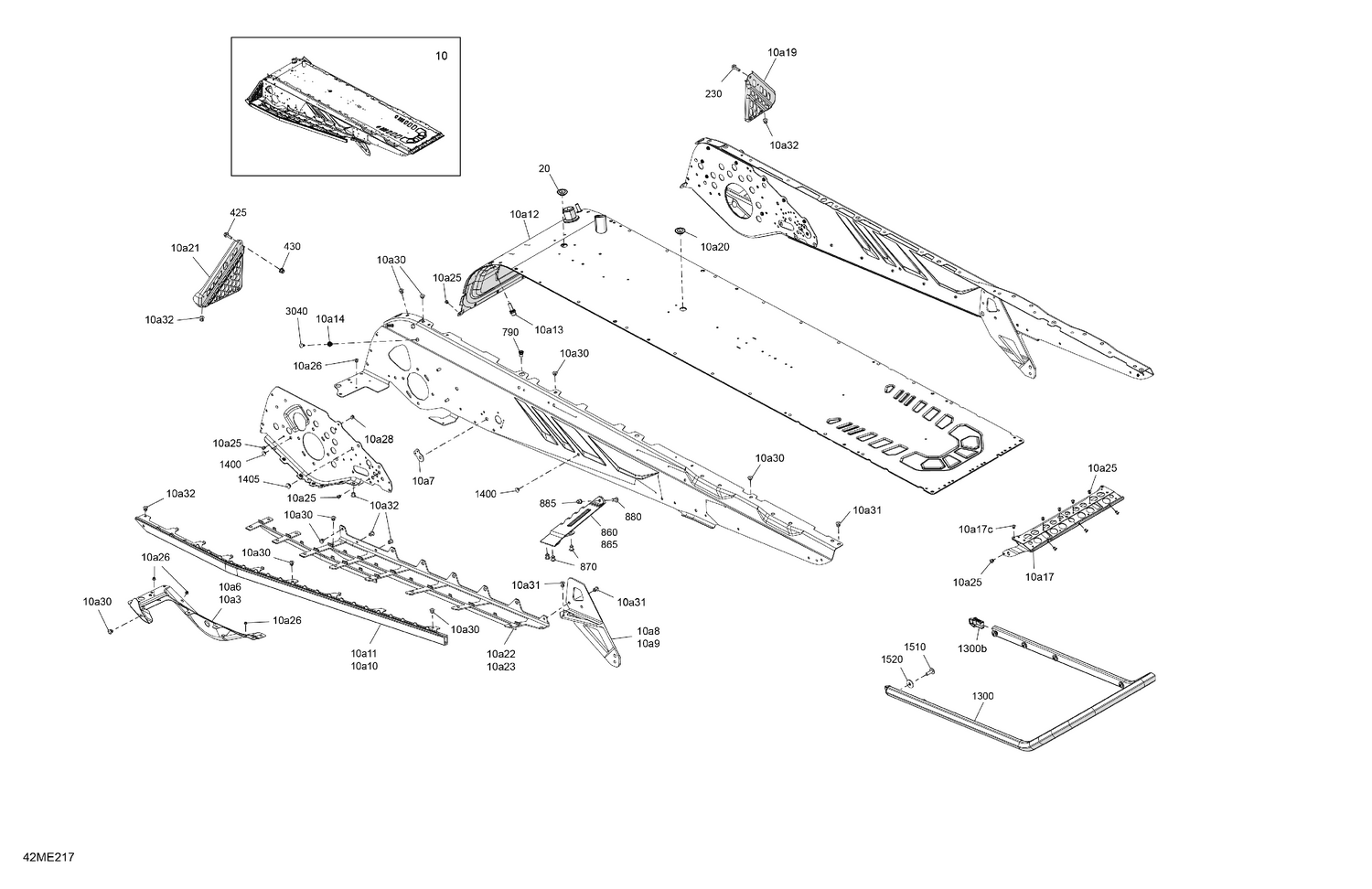

| Ref | Part Number | Description |
|---|
| 10a10 |
518332833 |
RH Formed Boarding Step |
| 10a11 |
518332834 |
LH Formed Boarding Step |
| 10a12 |
518335139 |
Radiator Tunnel 146 |
| 10a13 |
250300652 |
Protruding Stud M8 x 22 |
| 10a14 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 10a17c |
293150203 |
Rivet Avibulb 3/16 |
| 10a19 |
518332462 |
RH Footrest |
| 10a20 |
293730052 |
Black, Plug |
| 10a21 |
518332463 |
LH Footrest |
| 10a22 |
518332464 |
LH Rear Perforated Footstep |
| 10a23 |
518332466 |
RH Rear Perforated Footstep |
| 10a25 |
293150203 |
Rivet Avibulb 3/16 |
| 10a26 |
293150237 |
Avibulb Rivet 4.8 X 12.1 |
| 10a28 |
293150245 |
Henrob Rivet |
| 10a3 |
518332455 |
RH Footrest Reinforcement |
| 10a30 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10a31 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10a32 |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 10a6 |
518332456 |
LH Footrest Reinforcement |
| 10a7 |
518335959 |
Front Suspension Arm Reinforcement This part replaces 518329659. |
| 10a8 |
518332458 |
LH Rear Suspension Support |
| 10a9 |
518332457 |
RH Rear Suspension Support |
| 20 |
293730052 |
Black, Plug |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 790 |
293450278 |
Insert |
| 860 |
518335656 |
Dusty Navy, RH Rear Footrest Reinforcement |
| 865 |
518335657 |
Dusty Navy, LH Rear Footrest Reinforcement |
| 870 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 880 |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 885 |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 1300b |
520001612 |
Cap |
| 1400 |
293730047 |
Black, Dart 8 mm |
| 1405 |
293730060 |
Black, Dart 10 mm |
| 1510 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1520 |
224061201 |
Flat Washer |
