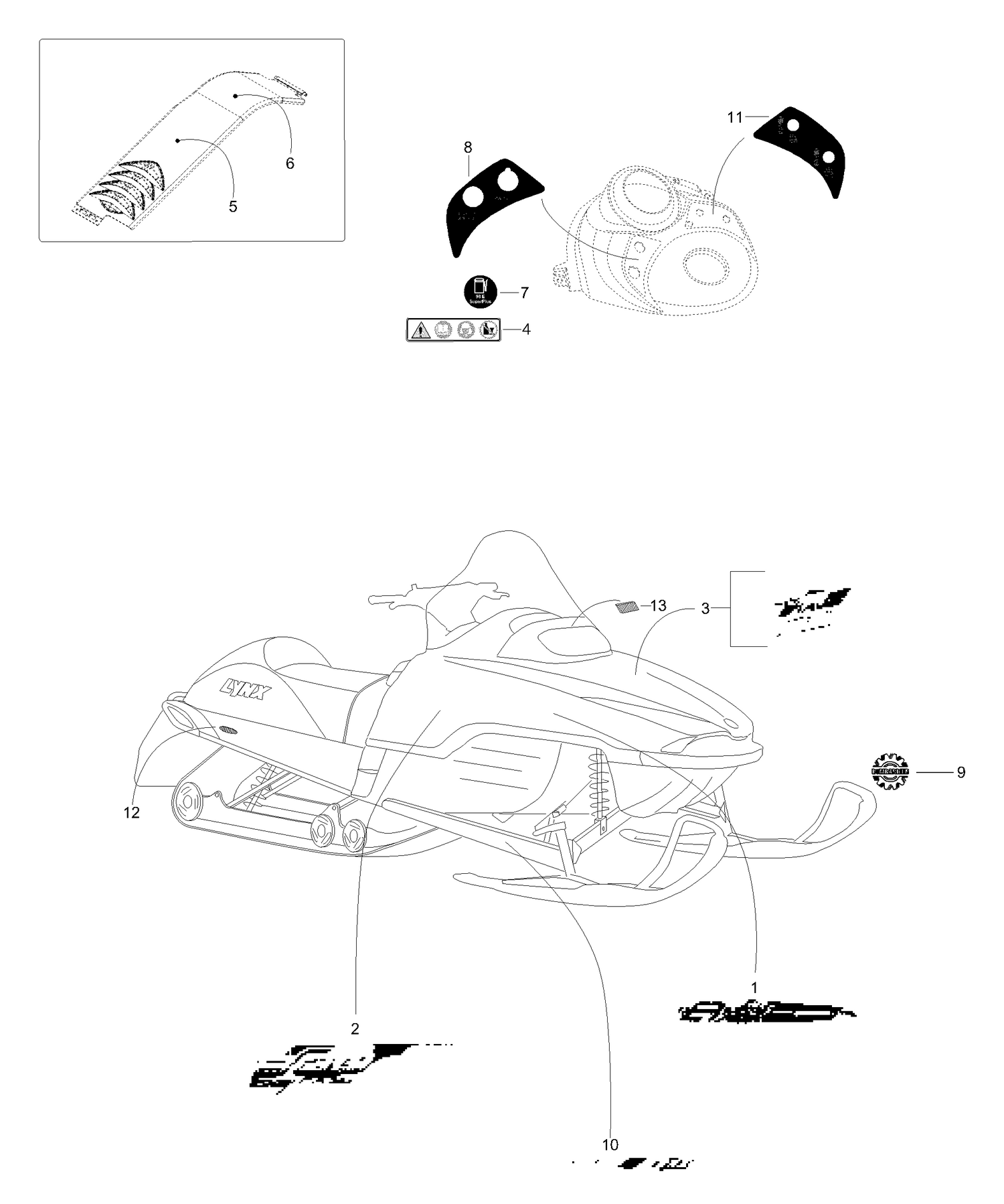

09- Decals
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5147194 | R.H. Hood decal, upper |
| 1 | 5147195 | L.H. Hood decal, upper |
| 2 | 5147196 | R.H. lower decal, hood |
| 2 | 5147197 | L.H. lower decal, hood |
| 3 | 5247198 | Hood decal, front |
| 4 | 5447124 | Instruction symbol decal |
| 5 | 546820 | Pulley decal |
| 6 | 544068 | Oil check decal |
| 7 | 5447019 | Fuel label |
| 8 | 5446931 | Decal D.E.S.S. |
| 9 | 516008738 | Logo 48mm "BRP" This part replaces 516000983. |
| 10 | 5247414 | Decal, swing arm R.H. |
| 10 | 5247415 | Decal, swing arm L.H. |
| 11 | 5446933 | Grip heater decal |
| 12 | 21135 | Reflector, yellow |
