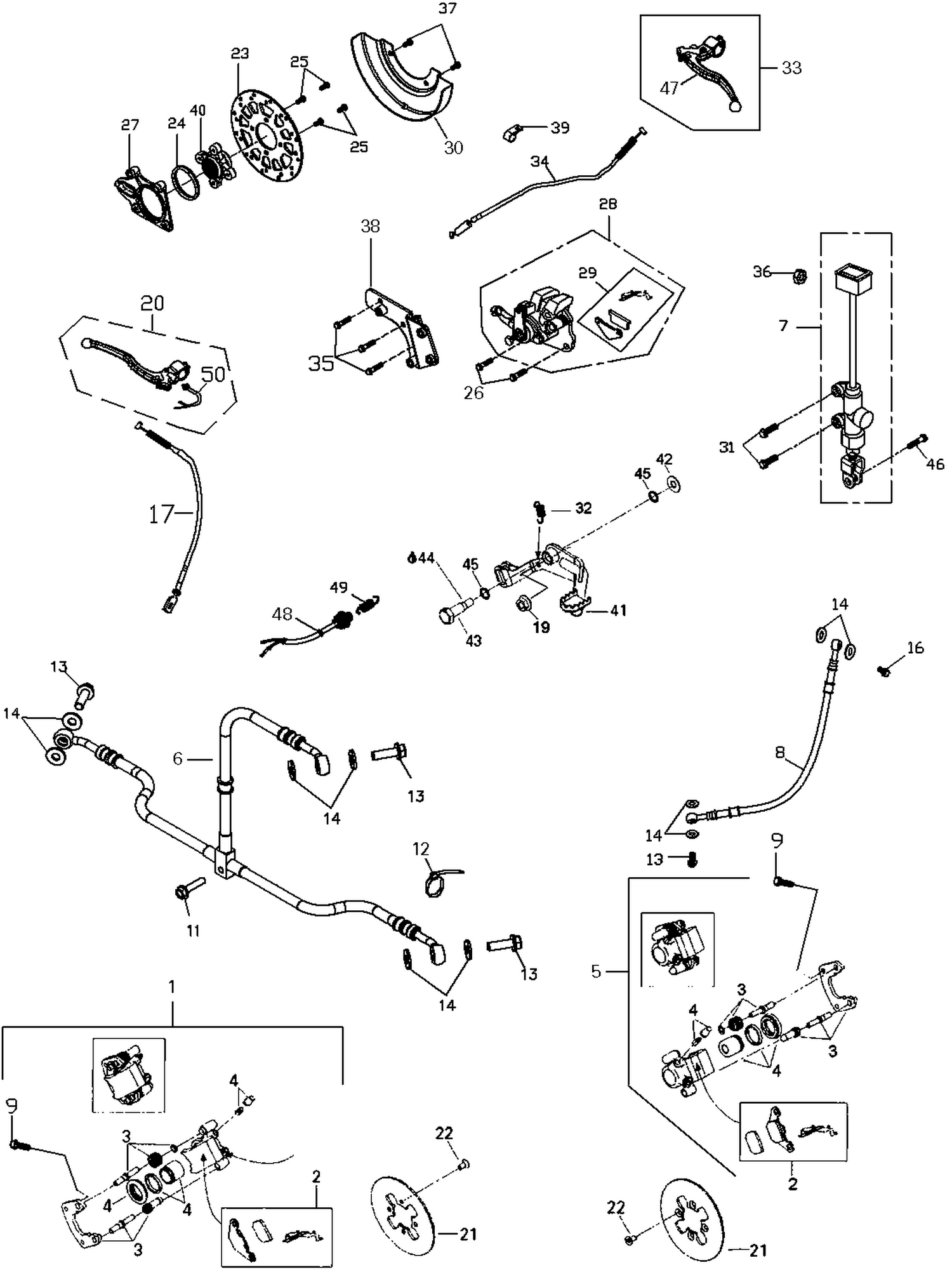

06- Hydraulic Brakes Europe
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A4500017900A | RH CALIPER ASS'Y - Call your local BRP dealership |
| 2 | A45120179000 | FRONT BRAKE PAD SET - Call your local BRP dealership |
| 3 | 705600286 | BOOT KIT - Call your local BRP dealership |
| 4 | Not | Available As Spare Part - Piston Set |
| 5 | A4520017900A | LH Caliper Ass'y |
| 6 | A545017900B | Brake Hose Ass'y |
| 7 | A4350017900A | REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership |
| 8 | A4346017900A | Rear Brake Hose |
| 9 | A9600008016GL | Hex. Flange Screw M8 X 16, Scotch Grip |
| 11 | A9200306035 | SOCKET SCREW M6 X 35 - Call your local BRP dealership |
| 12 | 414115200 | Tie-Rap 180 mm |
| 13 | A45456107000 | Banjo Bolt |
| 14 | A941031015012 | COPPER WASHER - Call your local BRP dealership |
| 16 | A43501197000 | Banjo Bolt |
| 17 | A43490179000 | REAR BRAKE CABLE - Call your local BRP dealership |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | A53170179000 | RH Brake Lever Ass'y |
| 21 | 705600223 | FRONT BRAKE DISC - Call your local BRP dealership |
| 22 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 23 | A4501519700A | BRAKE DISC - Call your local BRP dealership |
| 24 | A945117800S | CIRCLIP - Call your local BRP dealership |
| 25 | A45016146000 | SCREW-HEX.FLANGE - Call your local BRP dealership |
| 26 | A960001002814GL | SCREW-HEX.FLANGE M10 X 28 - Call your local BRP dealership |
| 27 | A52120179000 | REAR AXLE ADJUSTER BRACKET - Call your local BRP dealership |
| 28 | A4300017900A | REAR CALIPER ASS'Y - Call your local BRP dealership |
| 29 | A43120179000 | REAR BRAKE PAD KIT - Call your local BRP dealership |
| 30 | A45018179000 | Rear Brake Disc Cover |
| 31 | 207682544 | Hex. Flange Screw M8 X 25 |
| 32 | 705600288 | BRAKE PEDAL SPRING - Call your local BRP dealership |
| 33 | A5317917900A | LH Brake Lever Ass'y |
| 34 | A4347017900A | BRAKE CABLE - Call your local BRP dealership |
| 35 | 205081660 | Socket Head Screw M8 X 16 |
| 36 | A9035006000 | NYLON NUT M6 - Call your local BRP dealership |
| 37 | 207681244 | Hex. Flange Screw |
| 38 | A43502179000 | REAR MASTER CYLINDER BRACKET - Call your local BRP dealership |
| 39 | A11352179000 | Open Clamp |
| 40 | A42106179000 | BUSHING - Call your local BRP dealership |
| 41 | A4650017900B | Brake Pedal |
| 42 | A941051225010 | WASHER - Call your local BRP dealership |
| 43 | 705600201 | PIVOT - Call your local BRP dealership |
| 44 | 293550010 | Synthetic Grease, 400 G |
| 45 | 293300053 | O-RING - Call your local BRP dealership |
| 46 | A9120006041 | SOCKET HEAD SCREW M6 X 41 - Call your local BRP dealership |
| 47 | Not | Available As Spare Part - LH Brake Lever |
| 48 | A35350108000 | Brake Light Switch |
| 49 | A35357197000 | STOP SWITCH SPRING - Call your local BRP dealership |
