Parts Catalog

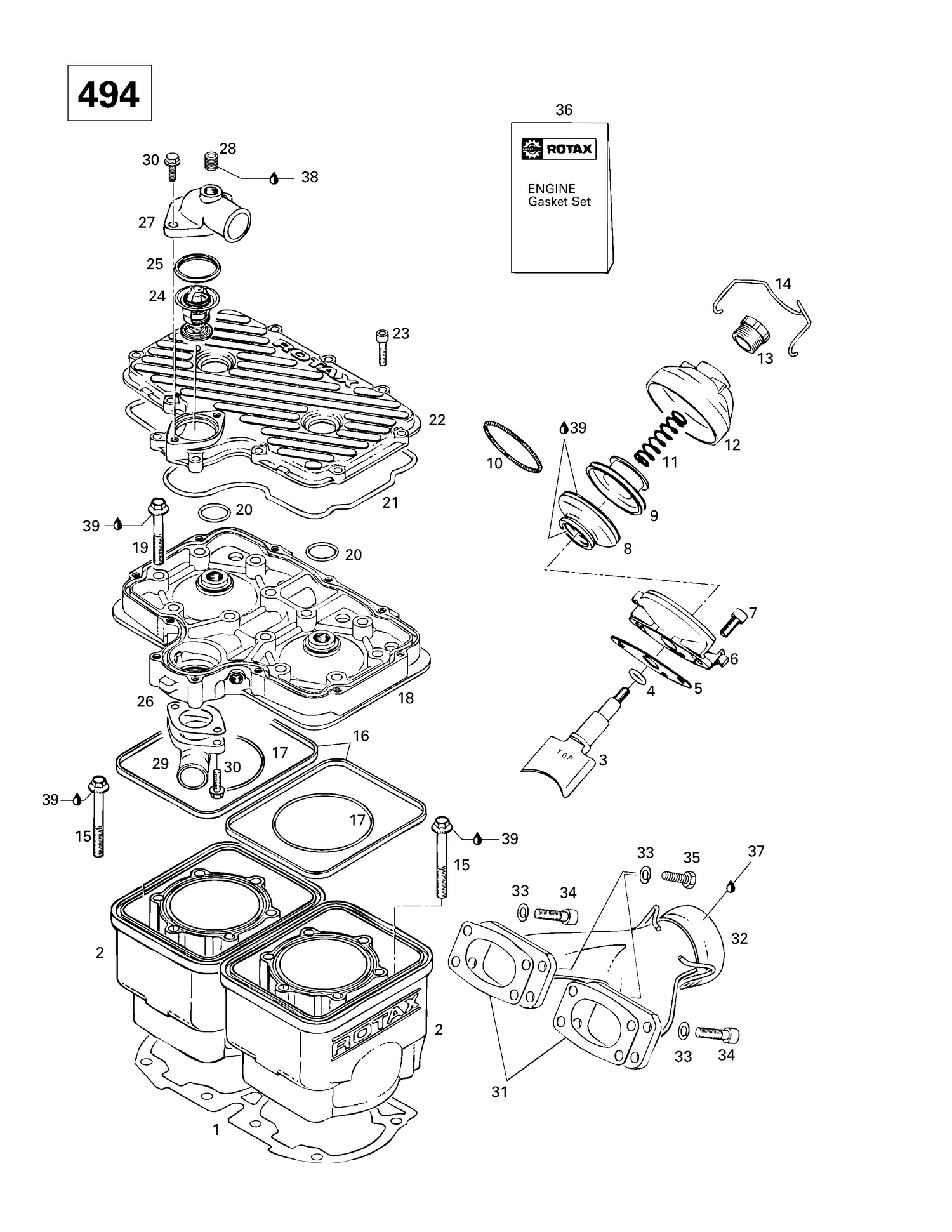

01- Cylinder, Exhaust Manifold (494)

Parts (38)

Ref	Part Number	Description
1	420931361	Gasket Double 0.4 mm
2	420923147	Cylinder With Sleeve Ass'y
3	420854300	EXHAUST VALVE - Call your local BRP dealership
4	420430110	O-Ring
5	420250239	Gasket This part replaces 420250234.
6	420854265	Valve Housing
7	420241237	Socket Head Screw M6 x 16 This part replaces 420241236.
8	420260723	Exhaust Bellows This part replaces 420260728.
9	420854449	Exhaust Valve This part replaces 420253258.
10	420939281	Hose Spring This part replaces 420239043.
11	420239946	Spring
12	420911552	Valve Cover This part replaces 420911551.
13	420241221	Adjuster Screw This part replaces 420241220.
14	420838083	SPRING CLIP - Call your local BRP dealership This part replaces 420838082.
15	420640959	Collar Hex Screw M8 X 68.5 This part replaces 420841996.
16	420850040	RUBBER RING - Call your local BRP dealership
17	420831792	O-Ring
18	420923163	Cylinder Head (Yellow)
19	420240326	Hex. Flange Screw M8 X 53.5
20	420430782	O-Ring
21	420931260	O-Ring
22	420923620	Cylinder Head (Yellow)
23	205062544	Socket Head Screw M6 X 25 This part replaces 222962565.
24	420922519	Thermostat This part replaces 414834100.
25	420931270	SEALING RING - Call your local BRP dealership
26	420850339	Gasket This part replaces 420850336.
27	420922062	BENT OUTLET SOCKET - Call your local BRP dealership
28	420240480	PLUG SCREW - Call your local BRP dealership
29	420922480	Bent Outlet Socket
30	420941251	SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
31	420850535	Gasket
32	420979630	Exhaust Manifold
33	234181401	Lock Washer 8 mm This part replaces 224781140.
34	205083044	Socket Head Screw M8 X 30 This part replaces 222983065.
35	207182544	Hex. Screw M8 X 25 This part replaces 222082565.
36	420994226	Gasket Set
37	293800090	Sealant, Loctite, 80 ml This part replaces 413710300.
38	413707100	Sealant, 100 gr
